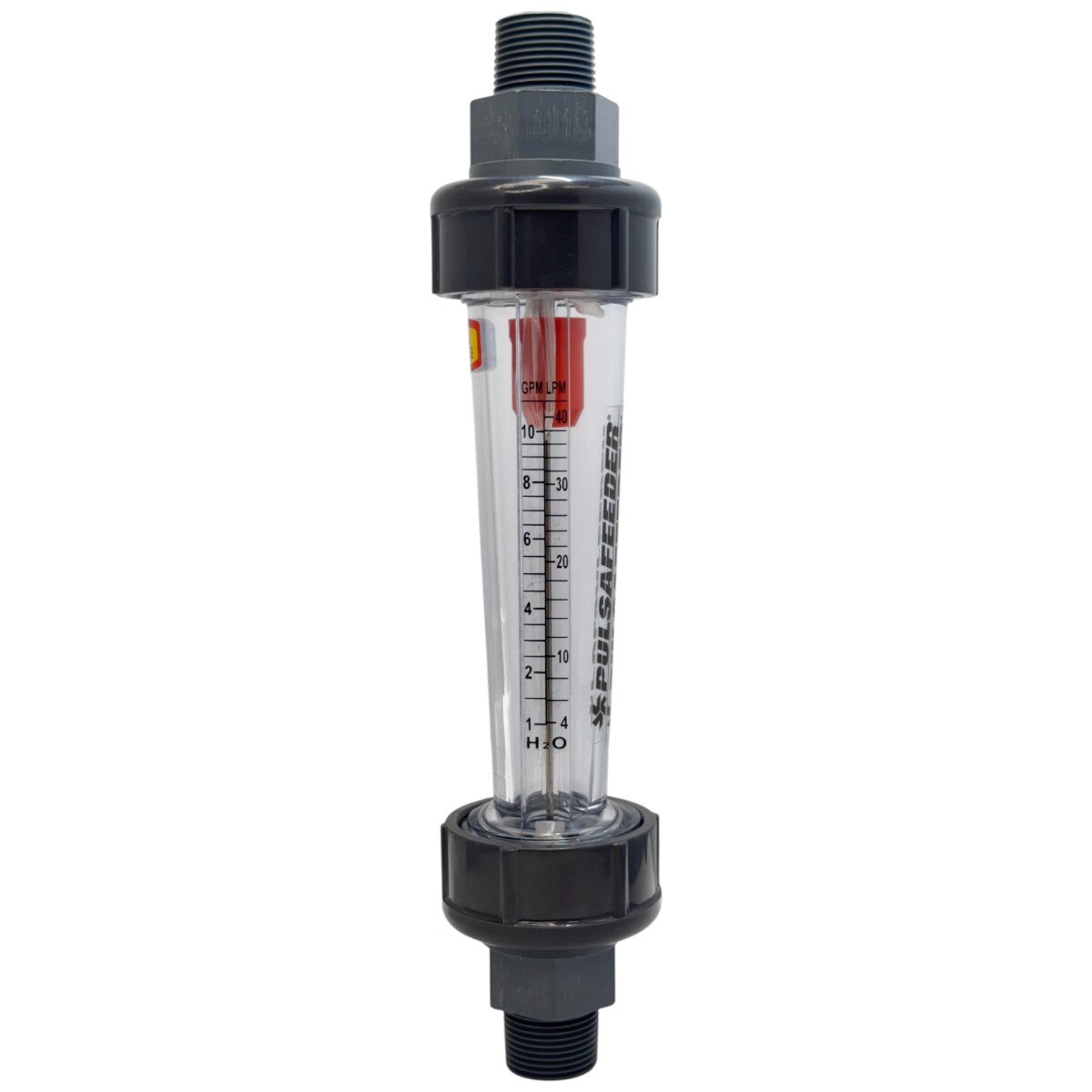

Pulsafeeder Variable Area In‑Line Flow Meter, 0.50" NPT (0.2–2 GPM)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder Variable Area In‑Line Flow Meter, 0.50" NPT (0.2–2 GPM)
The Pulsafeeder 33‑023‑04 is a precision variable area in‑line flow meter designed for very low‑flow water systems. With a 0.50" NPT connection and a flow range of 0.2–2 GPM (0.75–7.5 LPM), it’s ideal for dosing, conditioning, and specialty applications requiring tight flow control.
Its molded polysulfone body offers excellent chemical resistance and visibility, while the 316 stainless steel float and guide rods ensure smooth, accurate float movement. Viton® O‑rings provide secure sealing. Rated to 150 psi and 212°F at zero pressure, the unit installs easily using threaded joint and panel‑mount fittings.
- Part Number: 33‑023‑04
- Connection Size: 0.50" NPT
- Flow Range: 0.2–2 GPM (0.75–7.5 LPM)
- Body Material: Polysulfone
- Float & Guide Rods: 316 Stainless Steel
- O‑Rings: Viton®
- Max Pressure: 150 psi (10 bar)
- Max Temperature: 212°F (100°C at 0 pressure)
- Accuracy: ±4% of full scale
| Product Type: | Flow Meter |
| Brand: | Pulsafeeder |
