SPB-F19953-0000
Images are for representation only. Actual product may differ in size, color or options.

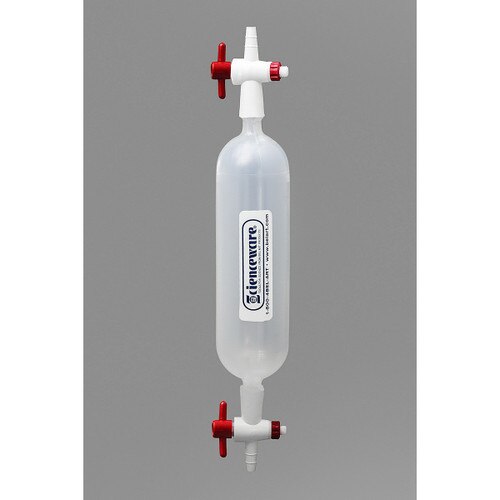

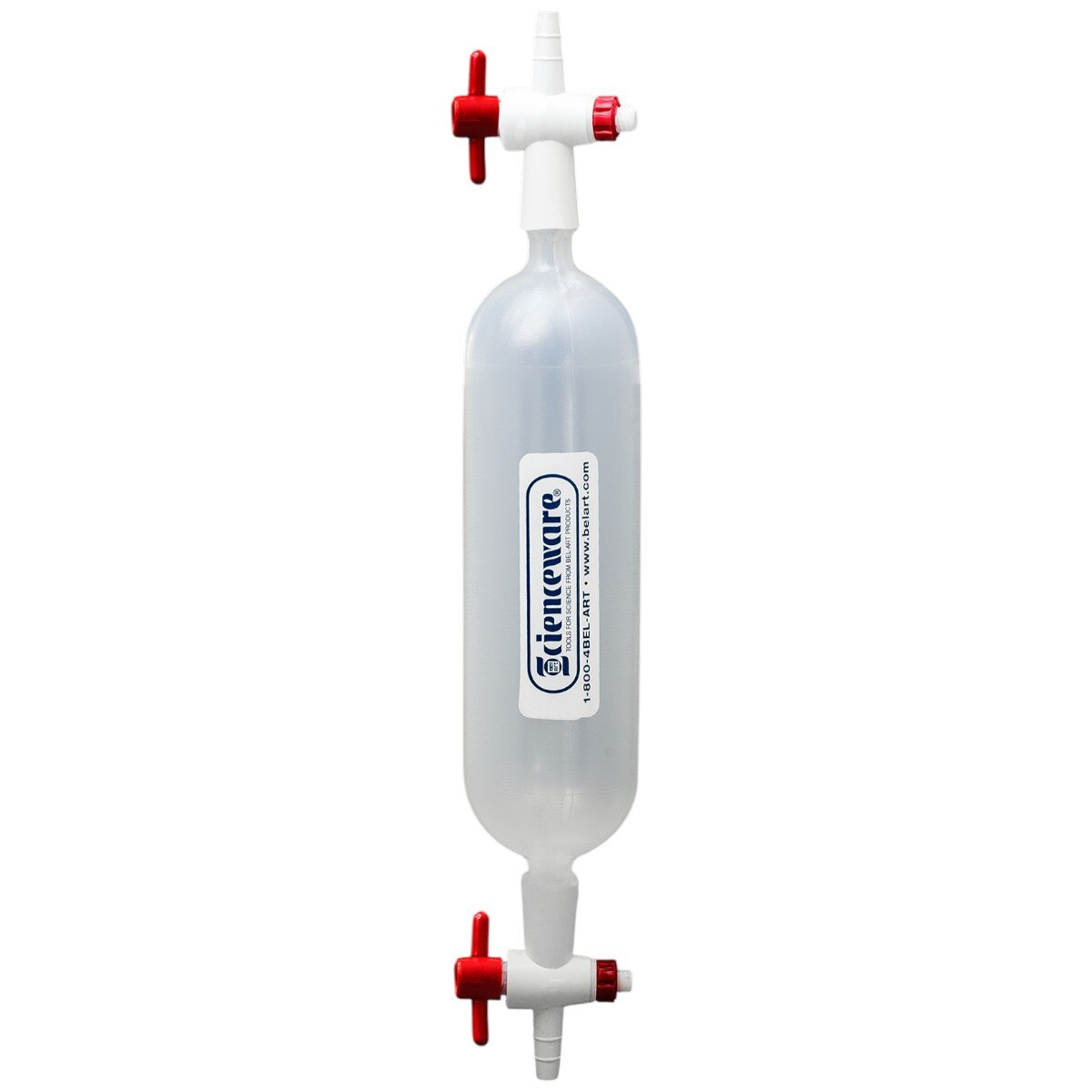

Bel-Art Gas Sampling Bulb – 250cc, Dual Stopcock Ends
The Bel-Art F19953-0000 gas sampling bulb features 4mm straight bore polypropylene stopcocks on both ends, each with free-turning PTFE plugs for smooth operation. Designed for controlled gas flow and sampling, the bulb’s hemispherical ends promote laminar flow. Ideal for analytical setups requiring bidirectional access.
Key Features
- Capacity: 250cc
- Ends: Dual 4mm straight bore stopcocks
- Material: Polypropylene body and stopcocks with PTFE plugs
- Tubing compatibility: 6.4 to 9.5 mm (¼ to ⅜") I.D.
- Maximum pressure: 15 psi
Dimensions
- Body: 5.1 cm O.D. × 22.2 cm long
- Stopcock length: 6.4 cm
- Overall length: 32 cm
Applications
- Controlled gas sampling and transfer
- Bidirectional flow setups
- Analytical and environmental testing
| Product Type: | Bulb |
| Brand: | Bel-Art |
| Class: | Gas Sampling |
| Material: | PP, Teflon |
| Net Weight: | .56 lbs |
