SP Bel-Art Polypropylene Gas Sampling Bulb with Stopcock End and 3-Way Stopcock End, 250cc
Images are for representation only. Actual product may differ in size, color or options.

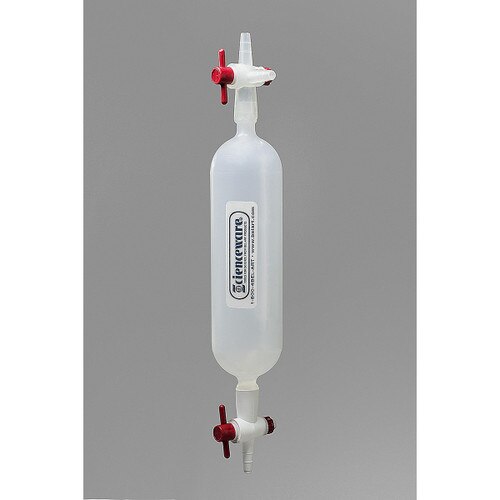

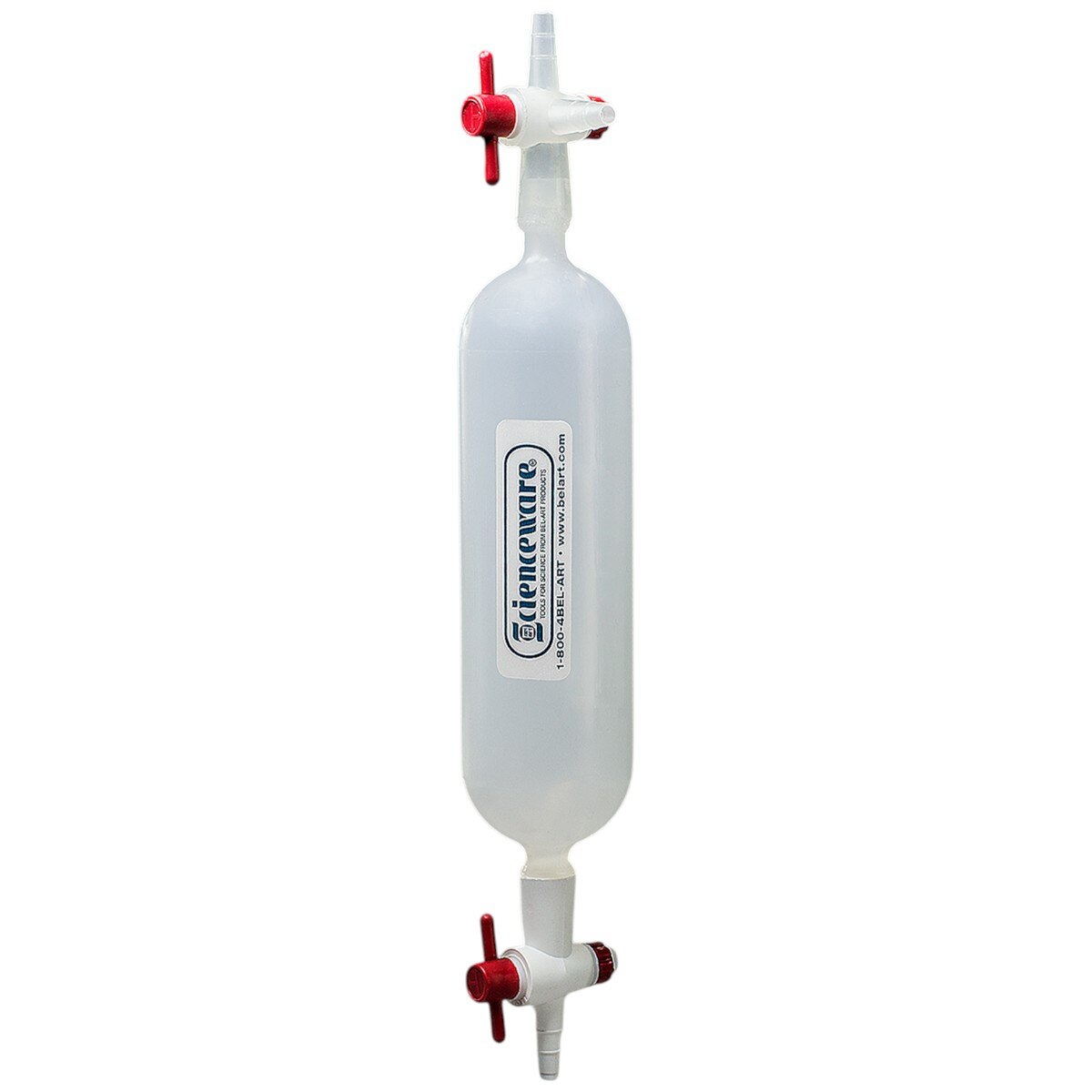

Bel-Art Gas Sampling Bulb – 250cc, Stopcock and 3-Way Stopcock Ends
The Bel-Art F19957-0000 gas sampling bulb features a 4mm straight bore stopcock on one end and a 4mm 3-way stopcock on the other, allowing gas to exit to two points. This configuration supports complex sampling setups and directional flow control. Hemispherical ends ensure smooth gas movement.
Key Features
- Capacity: 250cc
- Ends: One 4mm stopcock, one 4mm 3-way stopcock
- Material: Polypropylene body and stopcocks with PTFE plugs
- Tubing compatibility: 6.4 to 9.5 mm (¼ to ⅜") I.D.
- Maximum pressure: 15 psi
Dimensions
- Body: 5.1 cm O.D. × 22.2 cm long
- Stopcock length: 6.4 cm
- Overall length: 32 cm
Applications
- Multi-directional gas sampling
- Split flow or dual outlet setups
- Advanced analytical workflows
| Product Type: | Bulb |
| Brand: | Bel-Art |
| Class: | Gas Sampling |
| Material: | PP, Teflon |
