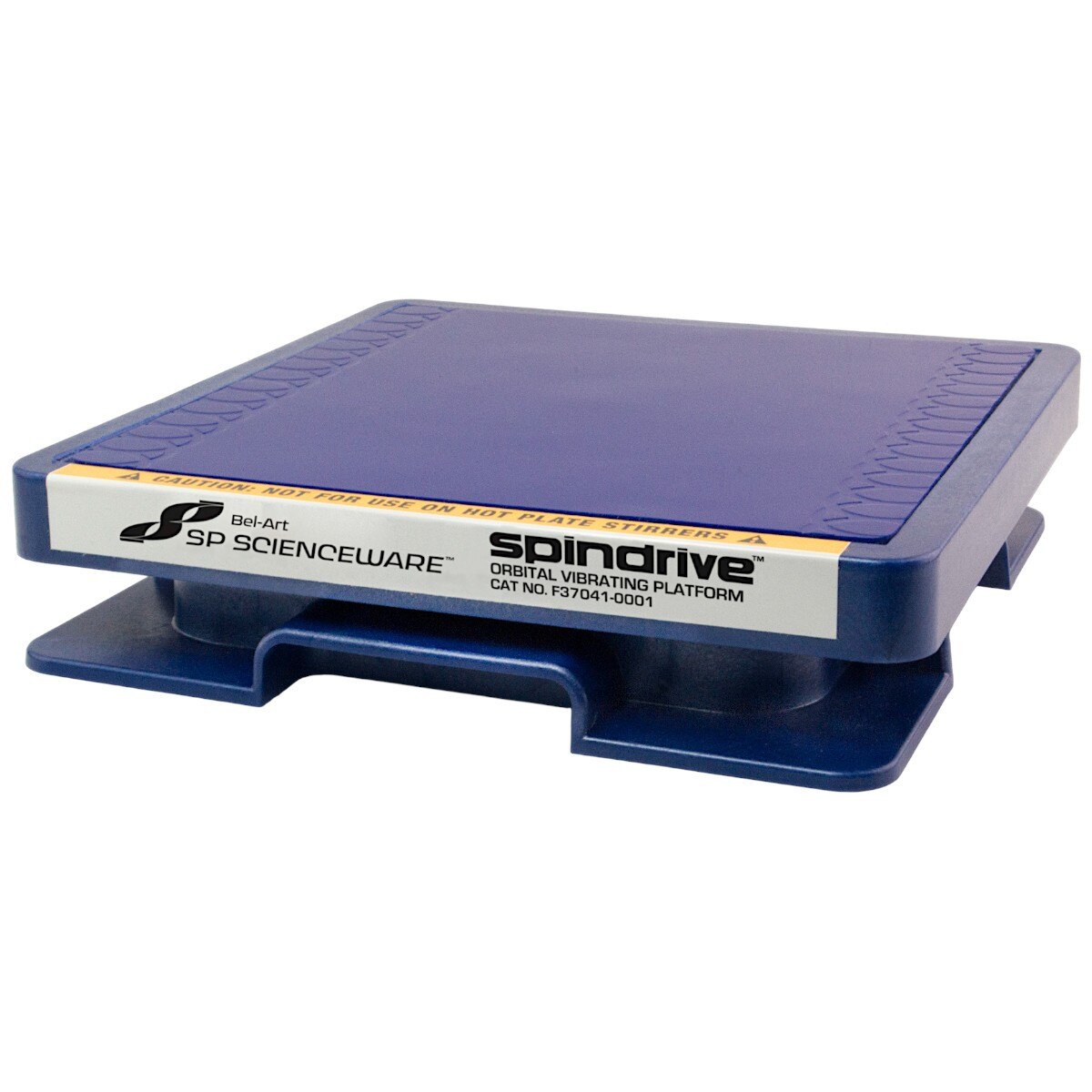

SP Bel-Art Spindrive Orbital Vibrating Platform
Images are for representation only. Actual product may differ in size, color or options.
SP Bel-Art Spindrive Orbital Vibrating Platform

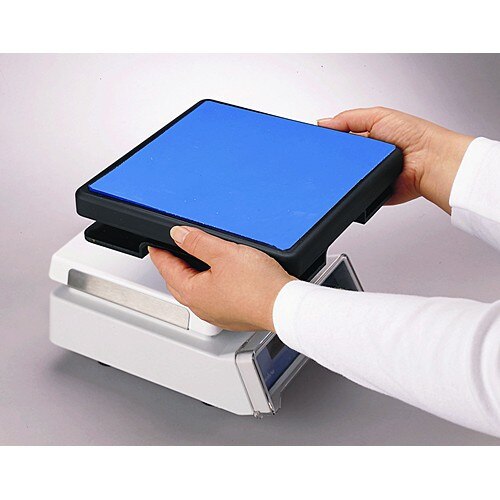

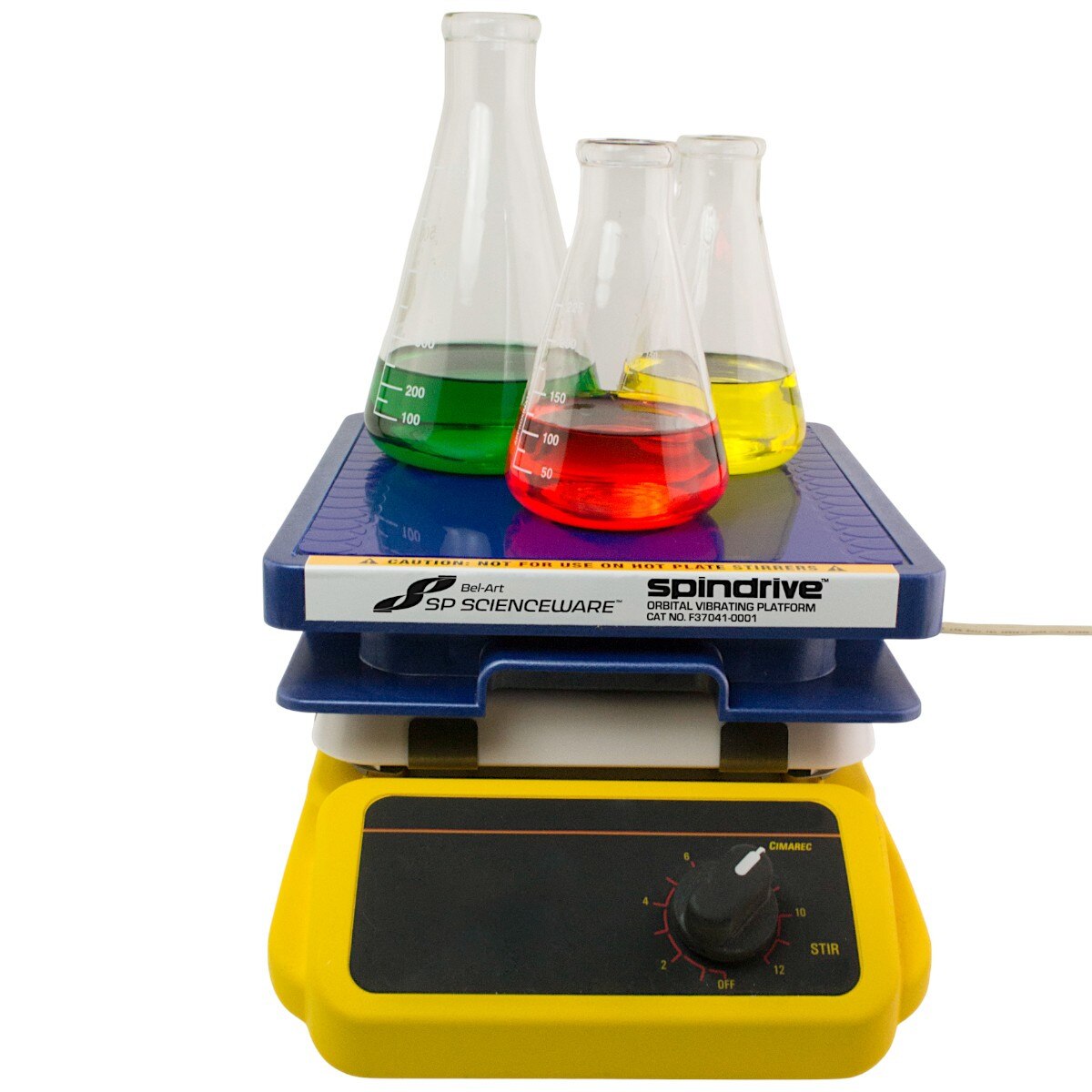

The Spindrive Orbital Vibrating Platform converts a standard magnetic stirrer into a compact orbital vibrating unit, eliminating the need for additional dedicated lab equipment. When centered on a magnetic stirrer, the platform produces a 1.52 mm (1⁄16") orbital vibration suitable for plates, flasks, tubes, and other vessels. Vibration intensity is controlled directly by adjusting the magnetic stirrer speed. U.S. Patent 5,409,312.
The platform features a non-skid surface to prevent container movement and a spill-protective base that shields the operating mechanism. Built-in hand holds allow easy lifting and transport, and the unit supports loads up to 6.8 kg (15 lb).
- Model Number: F37041-0001
- Orbit Diameter: 1.52 mm (1⁄16")
- Vibration Adjustment: Controlled by magnetic stirrer speed
- Surface Protection: Non-skid top; spill-protected mechanism
- Handling: Built-in hand holds for lifting and carrying
- Load Capacity: 6.8 kg (15 lb)
- Dimensions (L × W × H): 22.5 × 22.5 × 5.3 cm (8⅞ × 8⅞ × 2¹⁄₁₆")
- Weight: 1 kg (2.2 lb)
- Quantity: Pack of 1
| Product Type: | Vibrating Platform |
| Brand: | Bel-Art |
| Class: | Spindrive Orbital |
| Color: | Black, Blue |
| Unit Size: | 8-1/8"x8-7/8"x2-1/16" |
