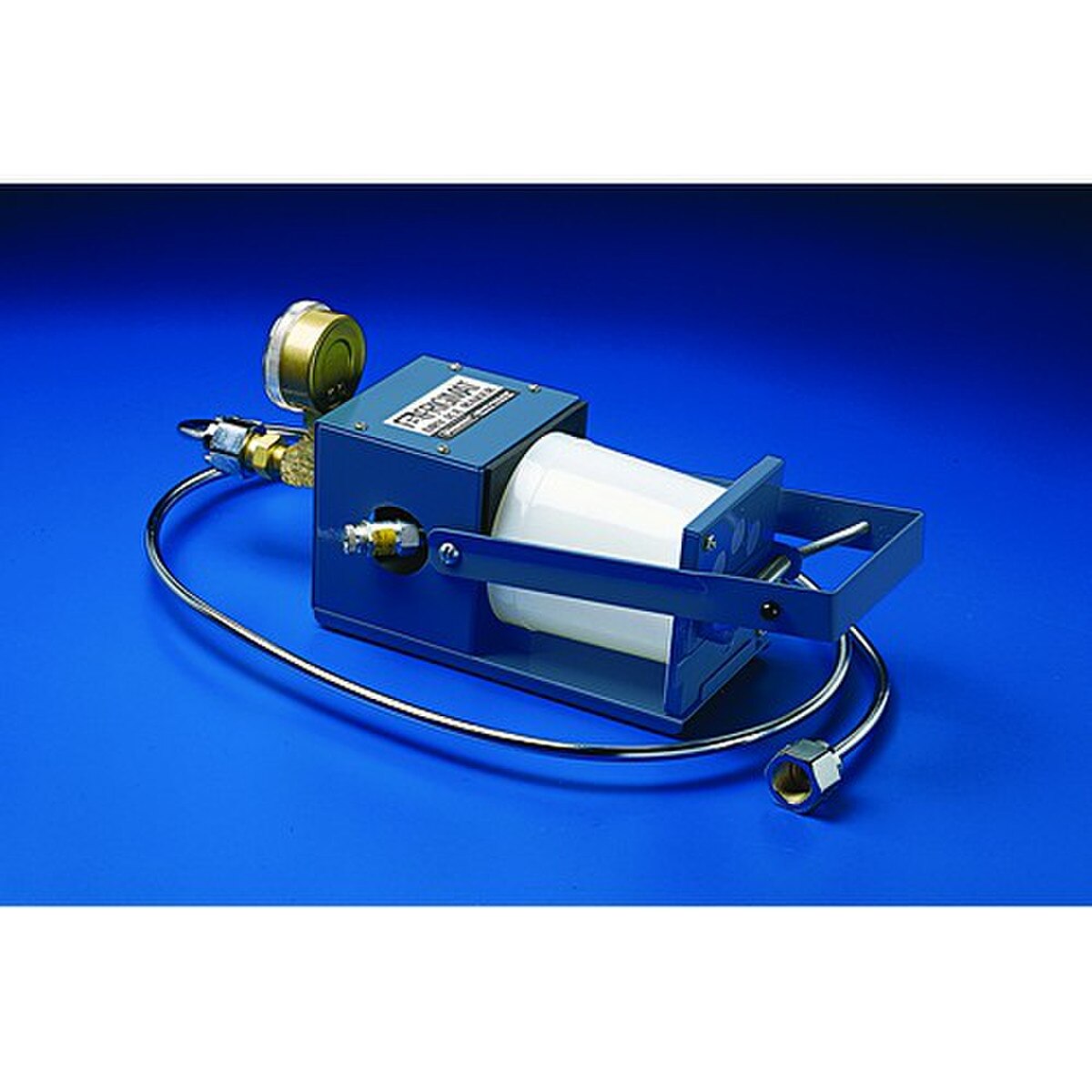

SP Bel-Art Economy Frigimat® Dry Ice Maker; U.S. Model, 14¾ × 5½ × 6 in. (each)
Images are for representation only. Actual product may differ in size, color or options.
SP Bel-Art Economy Frigimat® Dry Ice Maker; U.S. Model, 14¾ × 5½ × 6 in. (each)
The Economy Frigimat® Dry Ice Maker provides an economical solution for producing dry ice on demand. Connected to a liquid CO₂ cylinder equipped with a dip tube, the unit produces a solid 454 g (16 oz) block of dry ice in one to two minutes. A single 50 lb liquid CO₂ cylinder can produce approximately 8 to 9 dry ice blocks, making the unit ideal for laboratories and industrial facilities with occasional dry ice requirements.
- Model Number: H38876-0000
- Description: Economy Frigimat® Dry Ice Maker (U.S. Model)
- Dry Ice Output: 454 g (16 oz) block in 1 to 2 minutes
- Dry Ice Block Size: 9.2 × 10.4 cm (3⅝ × 4")
- Production Capacity: Approximately 8 to 9 dry ice blocks from a 50 lb liquid CO₂ cylinder with dip tube
- Ice Chamber: Polyethylene chamber with metal clamping mechanism
- Diffusion Plate: Porous polyethylene for venting excess gas
- Pressure Monitoring: Built-in gas pressure gauge
- Safety Features: Integrated pressure relief valve and four non-skid rubber feet
- Frame Construction: Epoxy-coated steel
- Connection Tube: 1.8 m (6 ft) nickel-plated copper tubing
- Fitting: Standard CGA 320 (0.830"-14) thread couplings
- Compatibility: Liquid CO₂ cylinder with dip tube
- Overall Dimensions: 37 × 14 × 15 cm (14¾ × 5½ × 6")
- Shipping Weight: 3.9 kg (8.5 lb)
- Quantity: Pack of 1
| Product Type: | Dry Ice Maker |
| Brand: | Bel-Art |
| Product Line: | Frigimat Dry Ice Makers |
| Class: | Economy |
