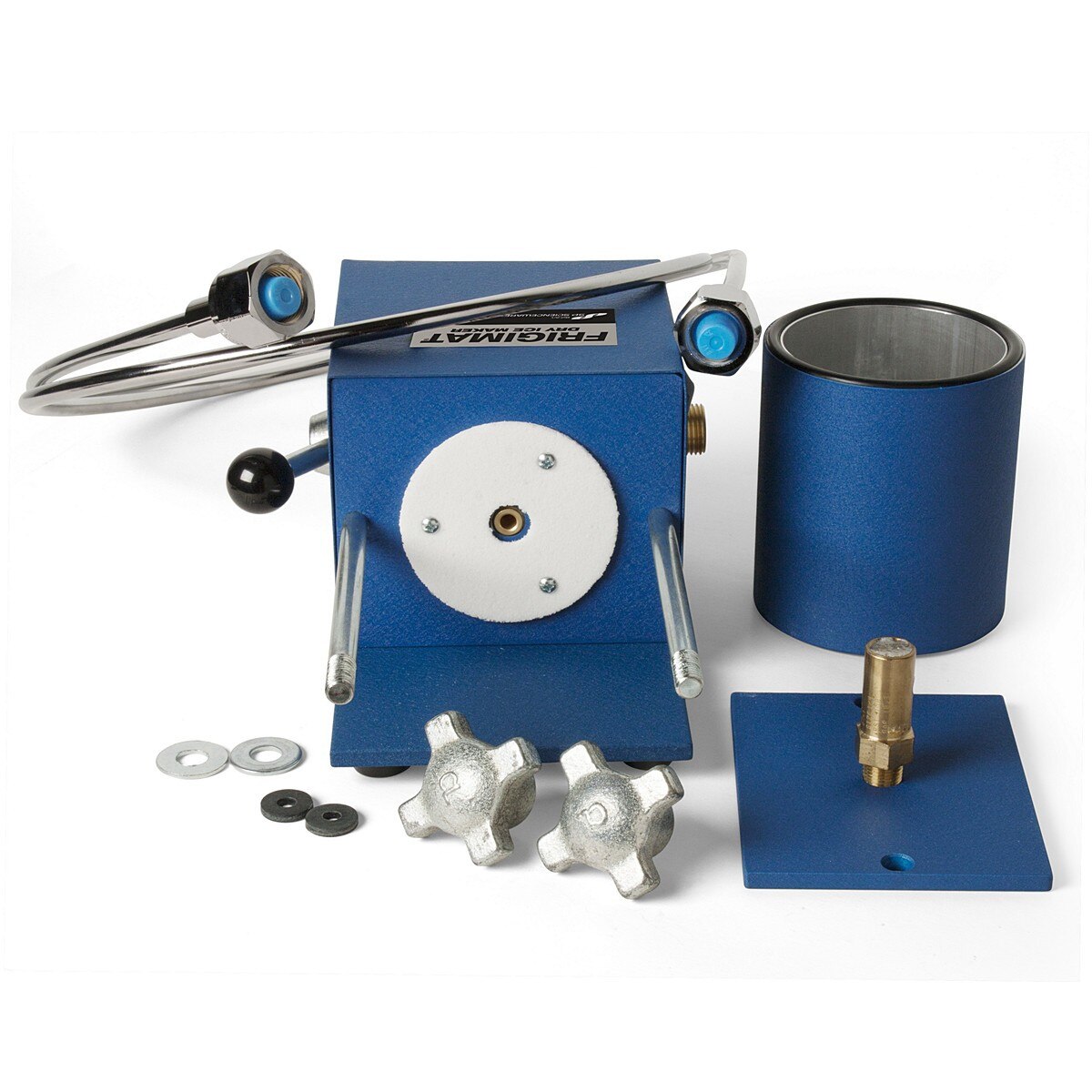

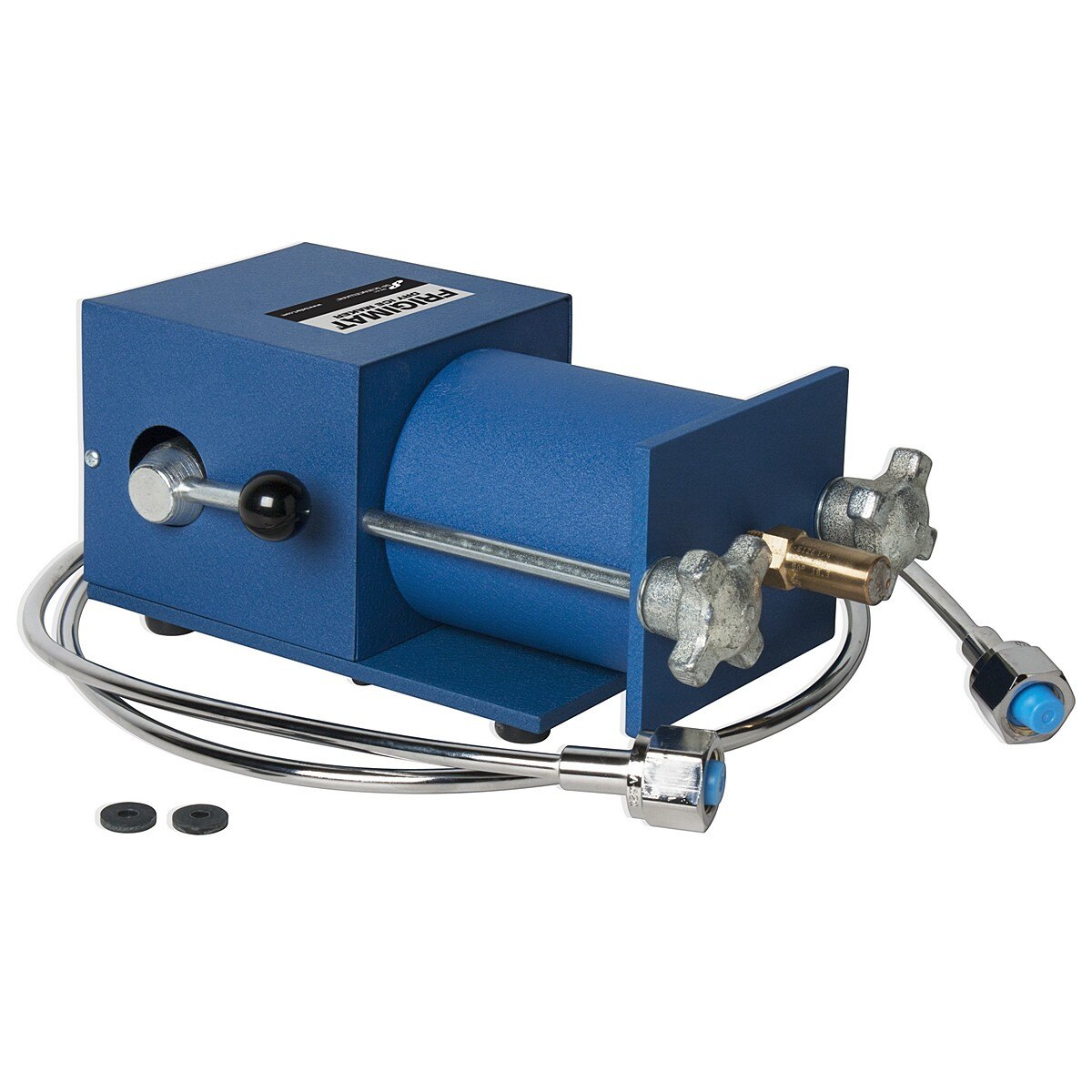

SP Bel-Art Frigimat® Dry Ice Maker; U.S. Model, 12 × 6½ × 5 in. (each)
Images are for representation only. Actual product may differ in size, color or options.
SP Bel-Art Frigimat® Dry Ice Maker; U.S. Model, 12 × 6½ × 5 in. (each)
The Frigimat® Dry Ice Maker eliminates the need to purchase and store large quantities of dry ice when only small amounts are required. Utilizing the Joule-Thomson effect, the unit produces a solid 454 g (16 oz) block of dry ice in just one to two minutes, and the finished block can be removed in approximately 30 seconds. Its durable construction and simple operation make it ideal for laboratories and industrial applications requiring on-demand dry ice production.
- Model Number: H38878-0010
- Description: Frigimat® Dry Ice Maker (U.S. Model)
- Dry Ice Output: 454 g (16 oz) block in 1 to 2 minutes
- Dry Ice Block Size: 8.5 × 11 cm (3⅜ × 4⅜")
- Production Capacity: Approximately 8 to 9 dry ice blocks from a 50 lb liquid CO₂ cylinder with dip tube
- Construction: Epoxy-coated steel frame with aluminum ice chamber and brass valves
- Safety Features: Brass relief valve and four non-skid rubber feet
- Connection Tube: 1.8 m (6 ft) nickel-plated copper tubing
- Fitting: Standard CGA 320 (0.830"-14) thread couplings
- Compatibility: Liquid CO₂ cylinder with dip tube
- Dimensions: 30 × 17 × 13 cm (12 × 6½ × 5")
- Shipping Weight: 5.5 kg (12 lb)
- Quantity: Pack of 1
| Product Type: | Dry-Ice Maker |
| Brand: | Bel-Art |
| Product Line: | Frigimat Dry Ice Makers |
| Net Weight: | 5.5kg (12lbs) |
| Overall Dimensions: | 30 x 17 x 13cmH (12 x 6½ x 5") |
| Notes: | U.S. Model |
