United Scientific Current Balance (each)
Images are for representation only. Actual product may differ in size, color or options.

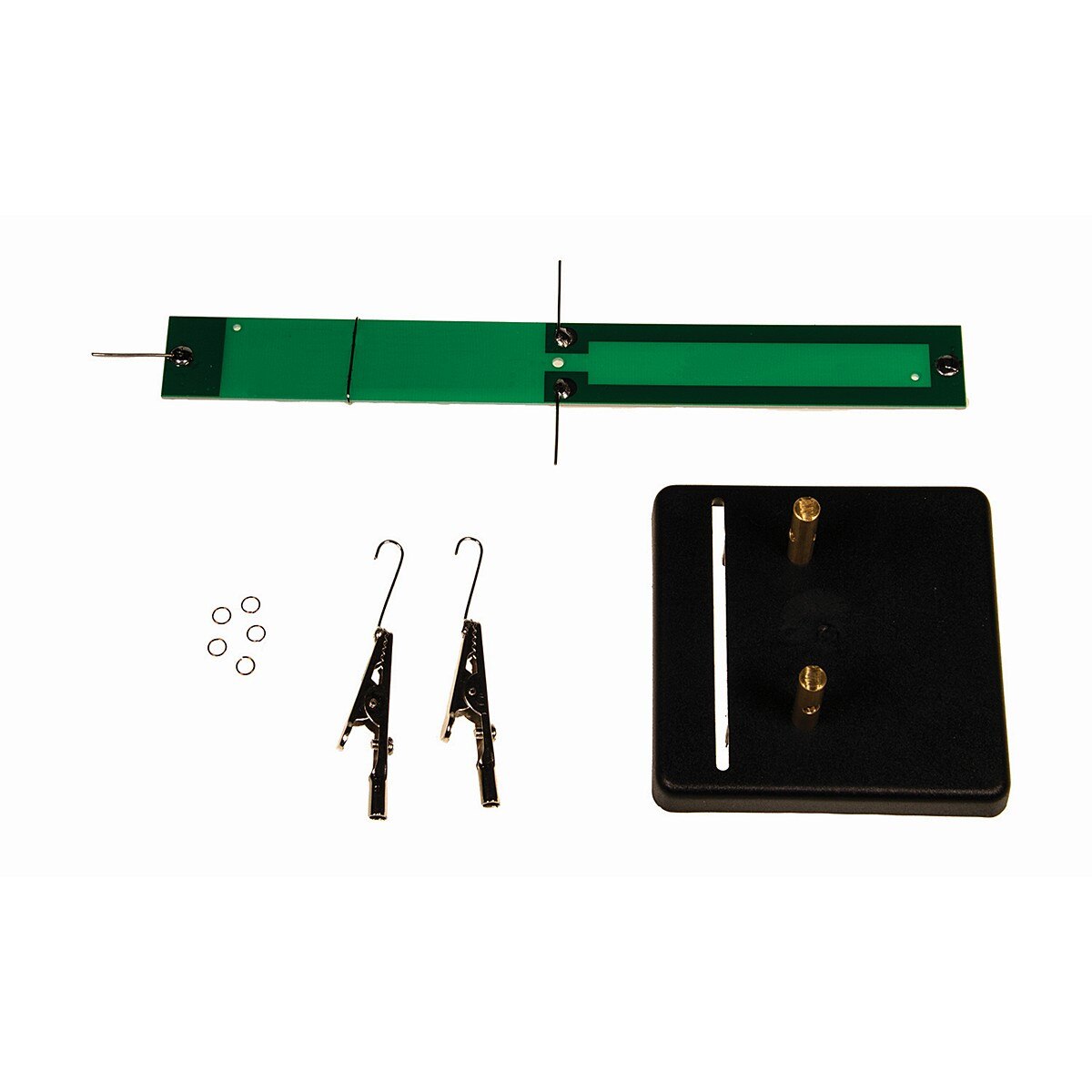

United Scientific Current Balance

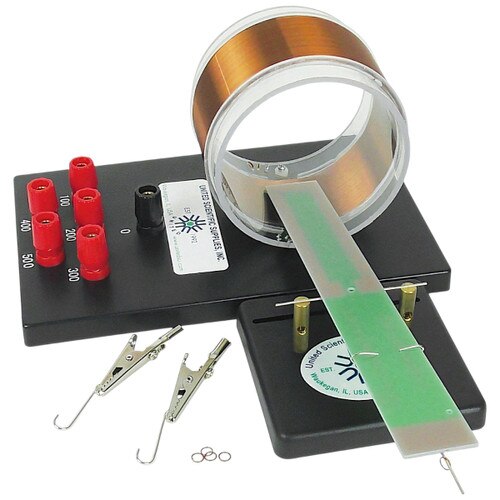

Classic apparatus for demonstrating and measuring the small force exerted on a current‑carrying conductor in a magnetic field. One half of the balance is positioned inside a solenoid, while the opposite arm includes an adjustable counterweight and can hold light calibration masses. When current is applied to both the balance and the solenoid from an external power supply, the balance deflects. Restoring equilibrium by adding small masses allows direct measurement of the magnetic force on the conductor.
- Item Number: CBA001
- Balance Dimensions: 240 mm × 65 mm × 3 mm
- Base Dimensions: 87 mm × 87 mm × 35 mm
- Weight: 74 g
- Function: Demonstrates force on a current‑carrying conductor
- Components: Balance arm, adjustable counterweight, base
- Operation: Requires external power supply and solenoid
| Brand: | United Scientific |
