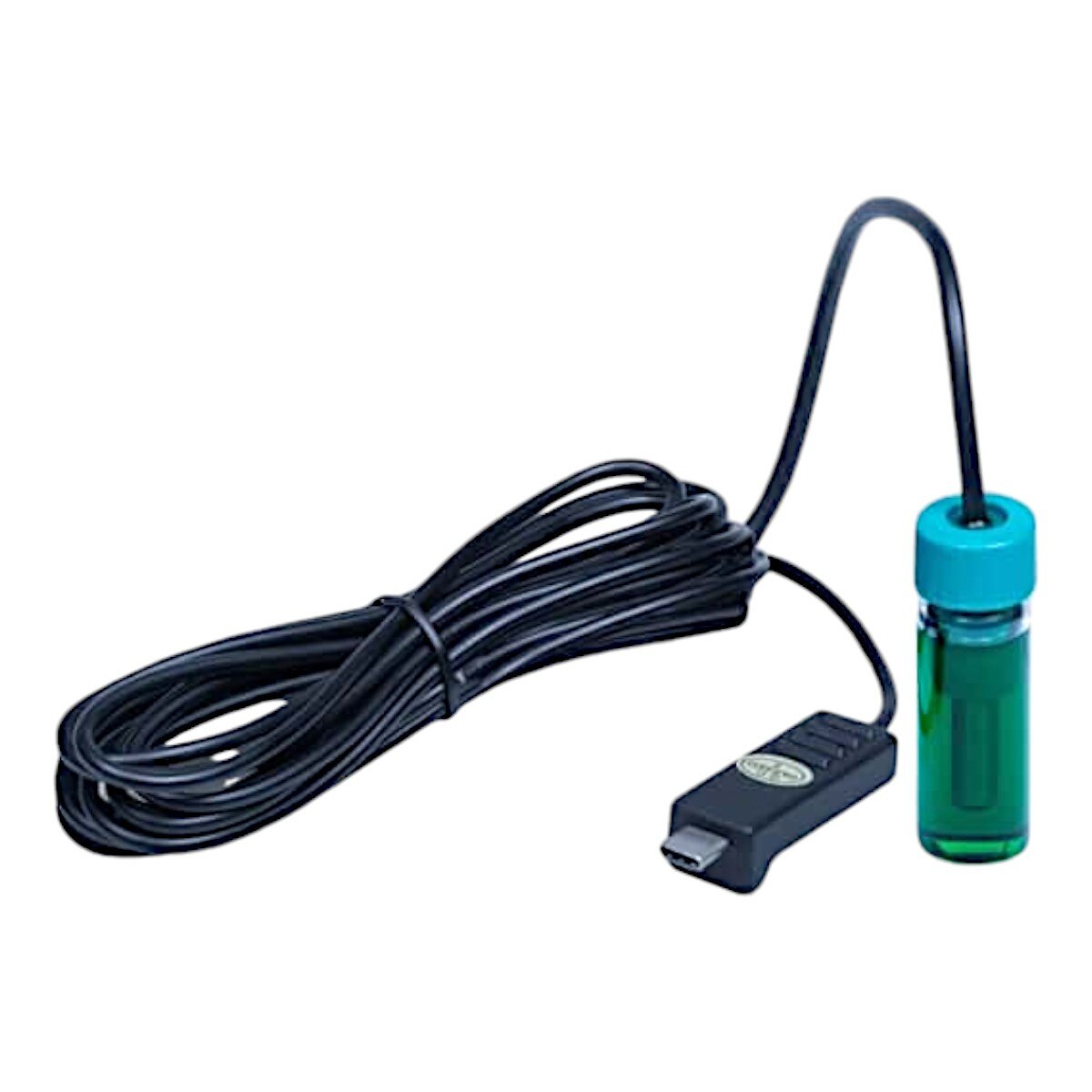

Traceable® 7654TR Smart Temperature Vaccine Bottle Probe for Traceable® 7600 Series Wi‑Fi Data Loggers

Traceable® 7654TR Smart Temperature Vaccine Bottle Probe for Traceable® 7600 Series Wi‑Fi Data Loggers

The Traceable® 7654TR Smart Temperature Vaccine Bottle Probe is a replacement sensor designed for Traceable® 7600 Series Wi‑Fi Data Loggers and TraceableLIVE® Cloud Service systems. Featuring onboard calibration storage, automatic probe recognition, and a glycol-filled vaccine bottle design, it simplifies calibration management while providing accurate vaccine temperature monitoring.

Key Features

• Compatible with Traceable® 7600 Series Wi‑Fi Data Loggers
• Designed specifically for vaccine monitoring applications
• Fits standard vaccine storage trays
• Internal memory stores calibration data within the probe
• Automatic recognition by compatible 7600 Series data loggers
• Three-point calibration at -40°C, 0°C, and 50°C
• Glycol-filled bottle simulates actual vaccine temperatures
• Reduces nuisance alarms caused by temporary air temperature fluctuations
• Nontoxic FDA GRAS glycol solution
• 10-ft (3-m) microcable for flexible installation
• Allows refrigerator and freezer doors to close securely around the cable
• Temperature range from -50 to 60°C (-58 to 140°F)
• Supports rapid recalibration through simple probe replacement
• Includes Traceable® Certificate from an A2LA-accredited calibration laboratory
• 1-year warranty

Product Details

The 7654TR Smart Vaccine Bottle Probe is designed to simplify calibration management for vaccine storage monitoring systems. Because calibration information is stored directly in the probe, users can maintain compliance requirements by replacing the probe when recalibration is due rather than removing the entire monitoring system from service.

Compatible Traceable® 7600 Series Wi‑Fi Data Loggers automatically recognize the probe and its stored calibration information, minimizing setup time and reducing monitoring downtime.

The glycol-filled bottle closely simulates the thermal characteristics of stored vaccines, helping provide a more representative temperature measurement than ambient air alone. This design reduces false alarms caused by routine door openings and short-term environmental fluctuations.

The included 10-ft microcable allows the probe to remain inside refrigerators, freezers, and vaccine storage units while the display or data logger remains mounted externally. The cable is designed to pass through door gaskets without affecting operation.

Each probe is calibrated at -40°C, 0°C, and 50°C and includes an individually numbered Traceable® Certificate documenting traceability to recognized national measurement standards. Guaranteed to have at least one year of calibration remaining on the certificate.

Specifications

• Product Type: Smart Temperature Vaccine Bottle Probe
• Probe Type: Vaccine Bottle Probe
• Temperature Range: -50 to 60°C (-58 to 140°F)
• Calibration Points: -40°C, 0°C, and 50°C
• Calibration Storage: Internal Smart Probe Memory
• Bottle Fill: Nontoxic FDA GRAS Glycol Solution
• Application: Vaccine Temperature Monitoring
• Cable Type: Microcable
• Cable Length: 10 ft (3 m)
• Automatic Probe Recognition: Yes
• Compatible With: Traceable® 7600 Series Wi‑Fi Data Loggers
• Description: Smart Temperature Vaccine Bottle Probe
• Warranty: 1 Year

Includes

• 7654TR Smart Temperature Vaccine Bottle Probe
• 10-ft (3-m) Microcable
• Traceable® Certificate

Ideal for vaccine refrigerators, pharmacy storage systems, healthcare facilities, public health departments, pharmaceutical environments, laboratories, and other applications using Traceable® 7600 Series Wi‑Fi Data Loggers and TraceableLIVE® monitoring systems.
