Traceable® 7674TR Wi‑Fi Data Logger Kit with Smart Temperature Vaccine Bottle Probe, Door Sensor, and 1-Year Premium TraceableLIVE® Cloud Service Subscription
Traceable® 7674TR Wi‑Fi Data Logger Kit with Smart Temperature Vaccine Bottle Probe, Door Sensor, and 1-Year Premium TraceableLIVE® Cloud Service Subscription

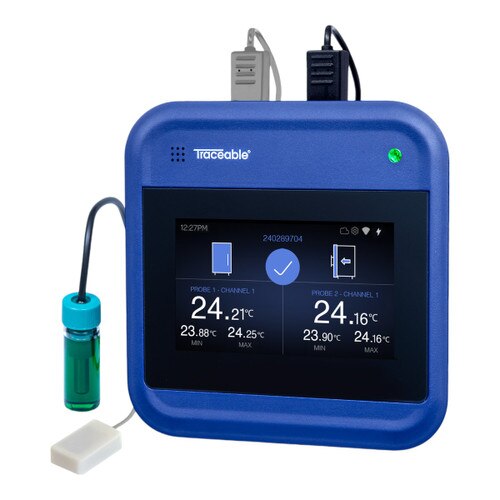

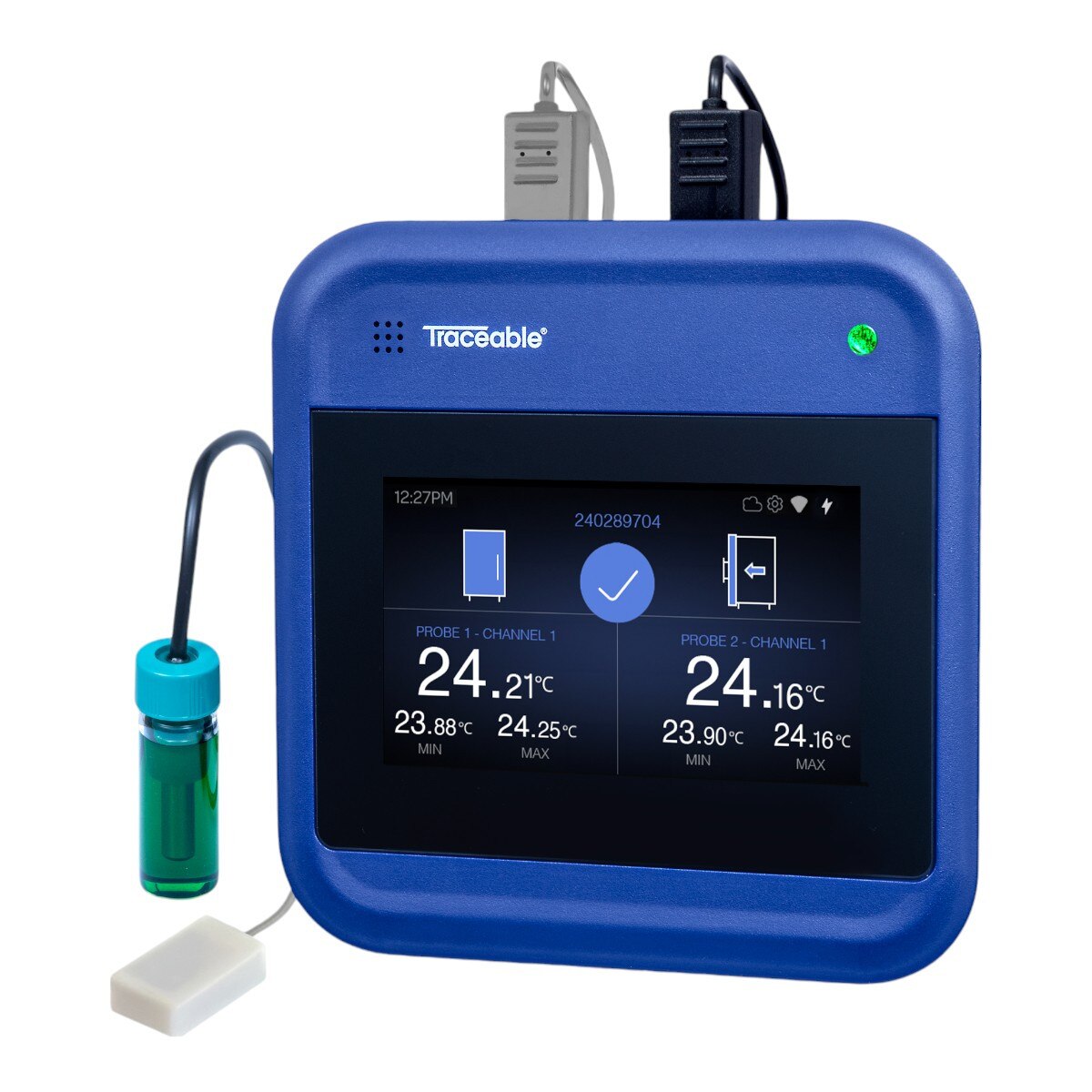

The Traceable® 7674TR Wi‑Fi Data Logger Kit is a complete vaccine monitoring solution for healthcare facilities, pharmacies, vaccine storage programs, laboratories, and pharmaceutical environments. The kit includes a Traceable® 7600 Series Touch Screen Wi‑Fi Data Logger, Smart Temperature Vaccine Bottle Probe, Open Door Sensor, and a 1-Year Premium TraceableLIVE® subscription for continuous remote monitoring, alarm management, and compliance reporting.
Key Features
- Complete monitoring kit with Wi‑Fi data logger, Smart Vaccine Bottle Probe, door sensor, and 1-year Premium TraceableLIVE® subscription
- Smart Probe stores calibration data internally for rapid deployment
- Probe replacement simplifies recalibration and minimizes downtime

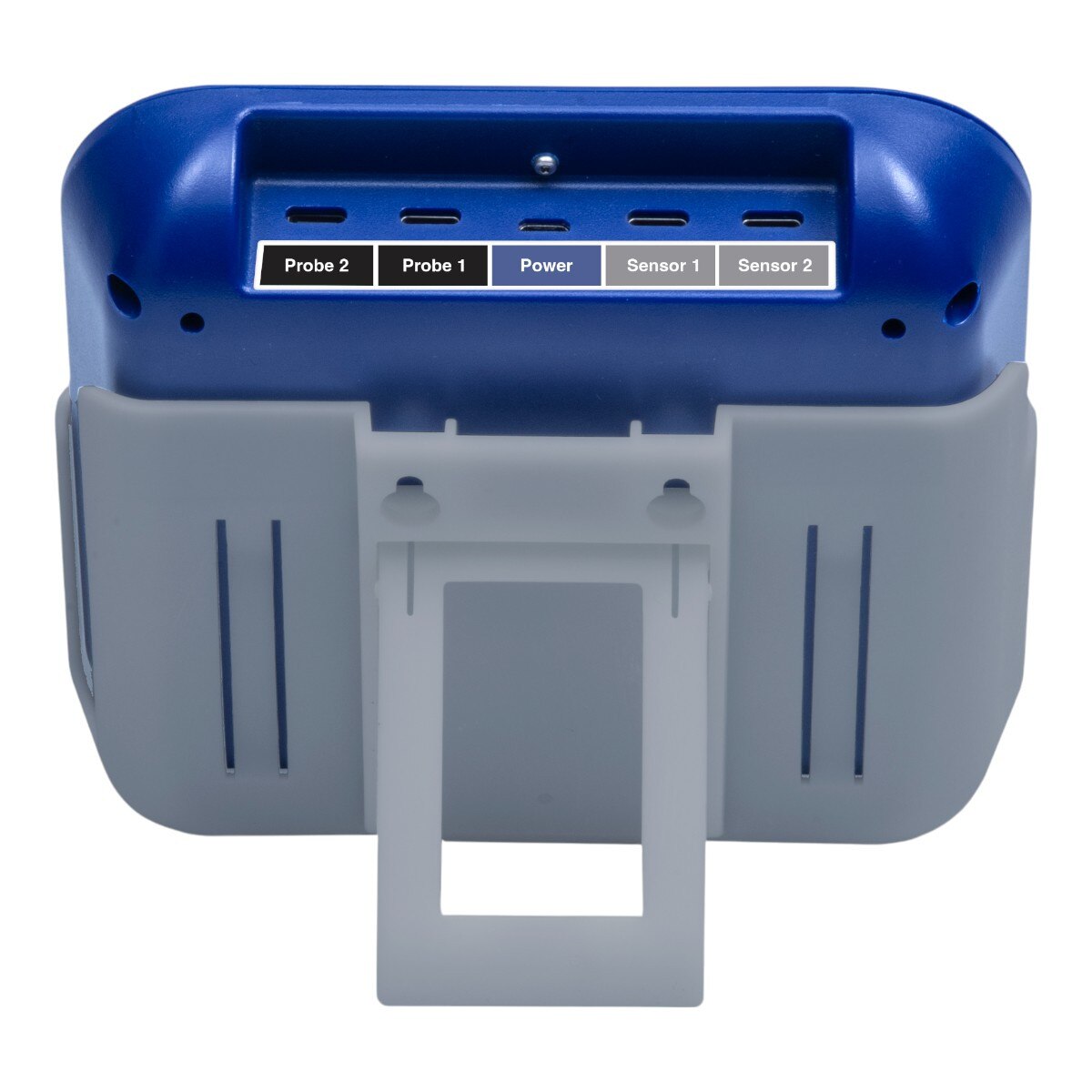

- Supports up to two Smart Probes and two door sensors
- Vaccine bottle probe designed to fit standard vaccine storage trays
- Buffered probe simulates stored vaccine temperatures
- Door sensor alerts users when monitored doors remain open

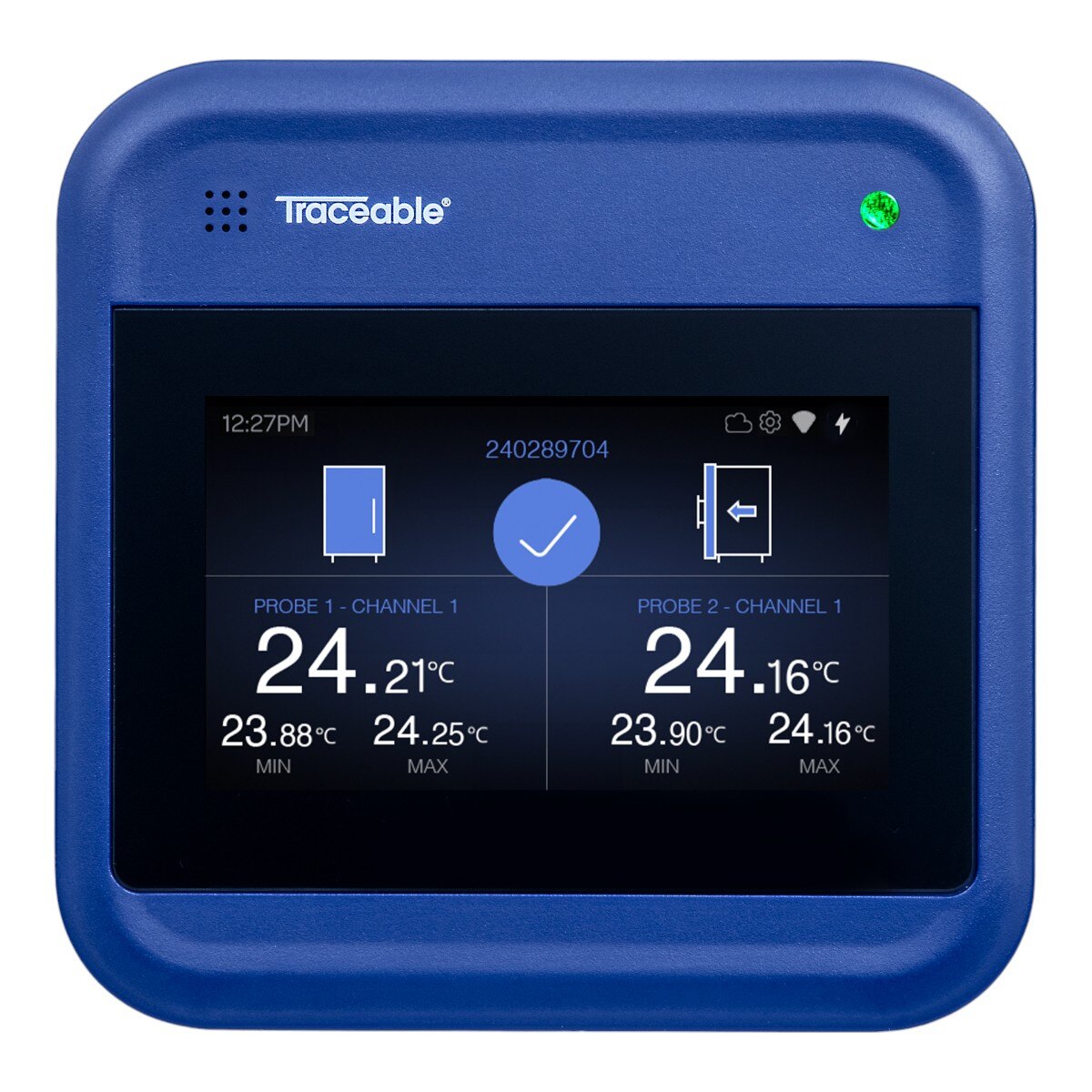

- Touchscreen interface for simple setup and operation
- Optional PIN protection for enhanced security
- Cloud-based monitoring, reporting, and alarm management
- Supports 2.4 GHz and 5 GHz Wi‑Fi networks
- Email, text, and mobile alarm notifications
- No local software installation required

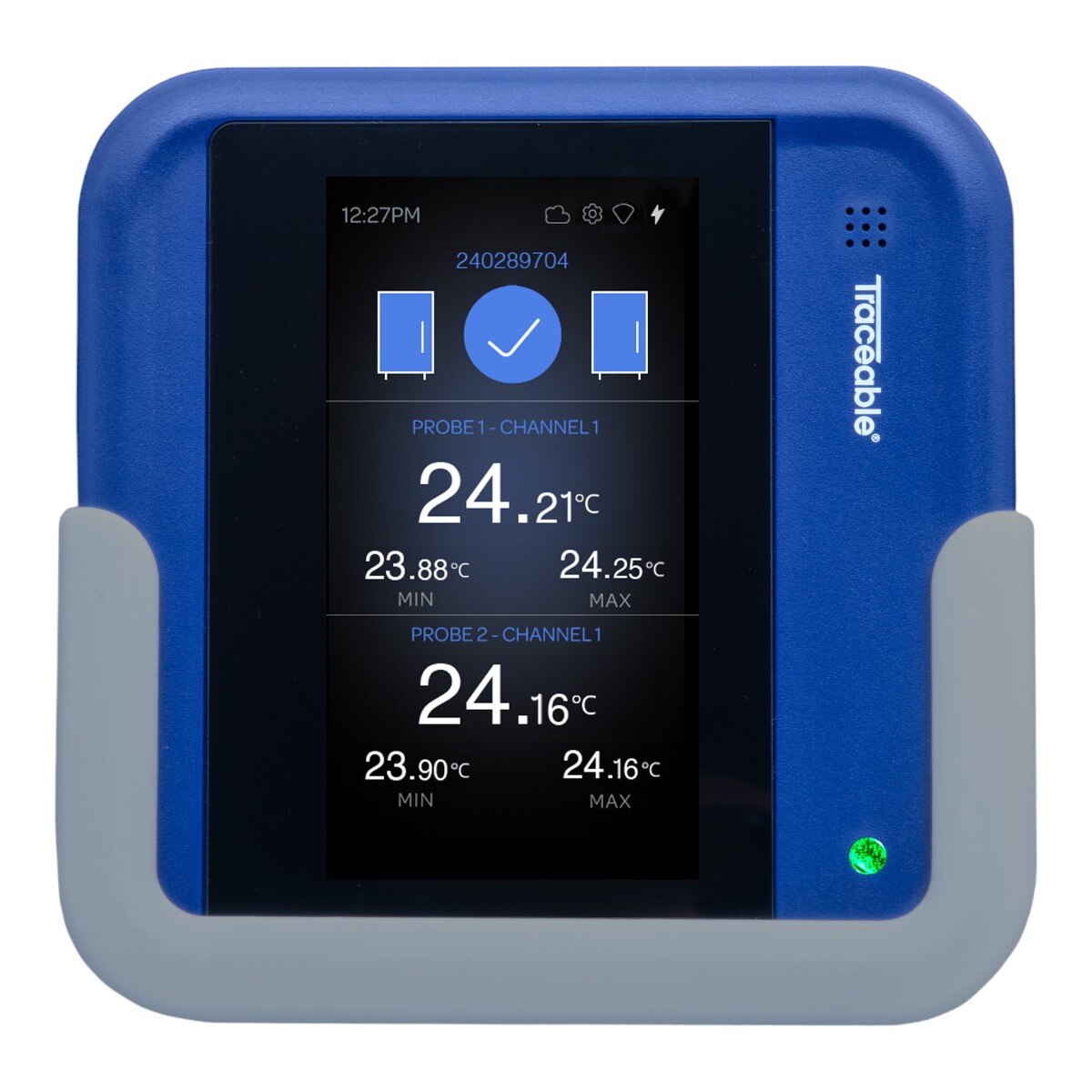

- Wall-mount or countertop placement
- Includes Traceable® Certificate for Smart Probe
- 1-year warranty
Product Details
The 7674TR Kit provides a ready-to-deploy temperature monitoring system specifically designed for vaccine storage applications. The included Smart Vaccine Bottle Probe contains glycol solution that simulates the thermal characteristics of stored vaccines, helping reduce nuisance alarms caused by brief air temperature fluctuations.
Smart Probe technology stores calibration information within the probe itself. When connected to the data logger, the probe is automatically recognized, simplifying installation and future recalibration. Replacing the probe restores calibration without removing the monitoring system from service.
The included open-door sensor helps protect valuable inventory by monitoring door status and generating alerts when refrigerator or freezer doors remain open longer than expected.
Through TraceableLIVE®, authorized users can remotely monitor temperatures, review historical data, generate reports, manage alarms, and receive notifications through email, text message, or mobile alerts. The touchscreen display provides convenient local access to system settings and status information.
Specifications
- Product Type: Wi‑Fi Data Logger Monitoring Kit
- Cloud Platform: TraceableLIVE®
- Included Subscription: 1-Year Premium TraceableLIVE® Subscription
- Total Channels: 4
- Input Type: Smart Vaccine Bottle Probe and Door Sensor
- Maximum Smart Probes: 2
- Maximum Door Sensors: 2
- Temperature Range: -50 to 60°C (-58 to 140°F)
- Resolution: 0.01°C / 0.01°F
- Accuracy: ±0.25°C from -40 to 60°C; ±0.5°C outside this range
- Connectivity: 2.4 GHz and 5 GHz Wi‑Fi
- Alarm Type: Remote Alerts Through TraceableLIVE®
- Security: Optional PIN Protection
- Display: Touchscreen
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Mounting Options: Wall Mount or Countertop
- Dimensions: 5.75 × 5.75 × 1.22 in.
- Description: Wi‑Fi Data Logger Kit with Smart Temperature Vaccine Bottle Probe, Door Sensor, and TraceableLIVE® Subscription
- Warranty: 1 Year
Includes
- Traceable® 7600 Touch Screen Wi‑Fi Data Logger
- Smart Temperature Vaccine Bottle Probe
- Open Door Sensor

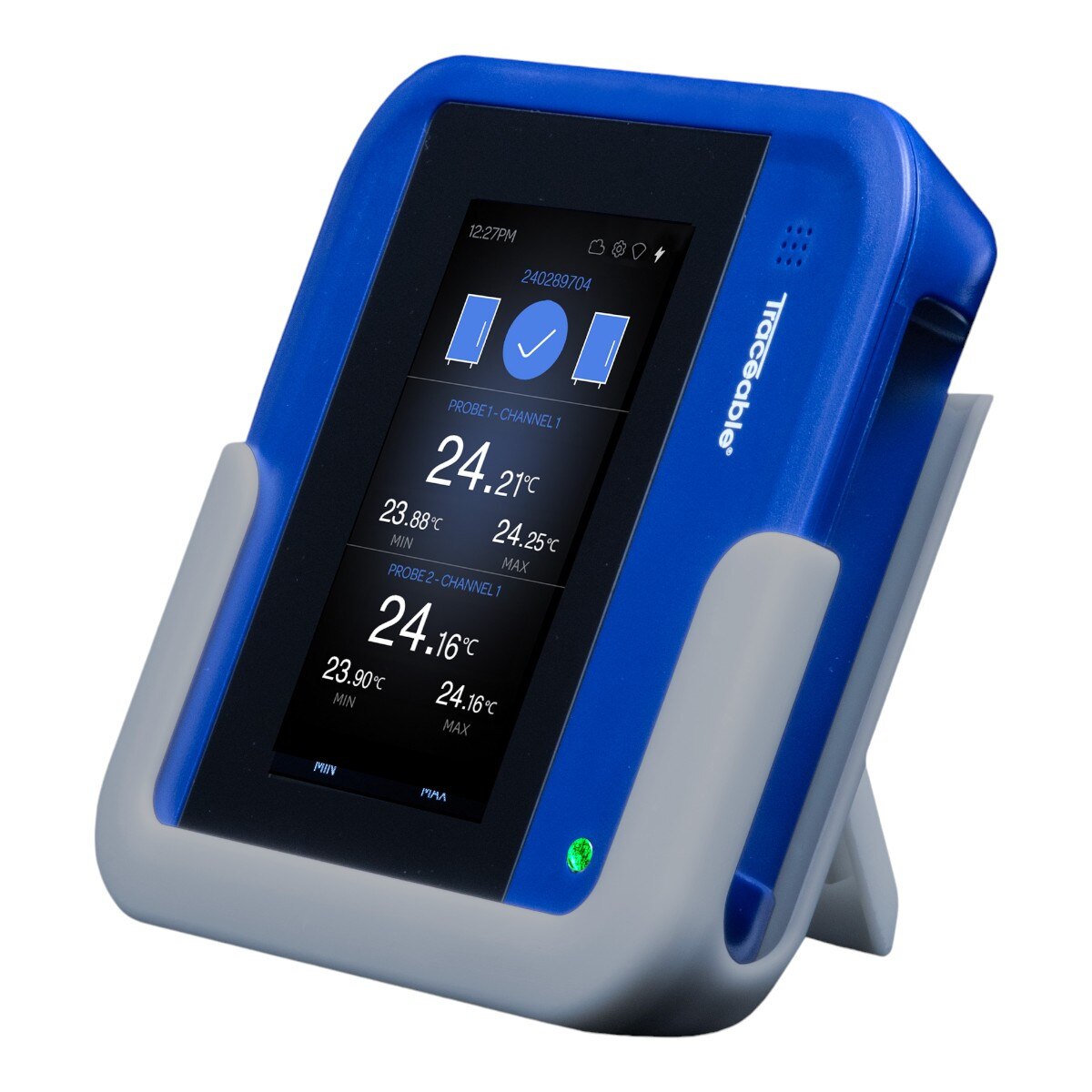

- Mountable Cradle
- Hook-and-Loop Adhesive Strip
- Power Supply
- 1-Year Premium TraceableLIVE® Subscription Activation Code
- Traceable® Certificate (Smart Probe)
Ideal for vaccine refrigerators, pharmacy storage systems, healthcare facilities, immunization clinics, public health departments, research laboratories, and pharmaceutical storage applications requiring cloud-based temperature monitoring, remote alarms, door-status monitoring, and traceable calibration.
| Product Type: | Datalogging Temperature Meter |
| Brand: | Traceable |
| Product Line: | TraceableLIVE |
| Class: | WiFi Datalogging with Remote Notification |
| Temperature Range: | -50.00º to 60.00ºC ( -58.00 to 140.00ºF) |
| Temperature Resolution: | 0.01º |
| Temperature Accuracy: | ±0.25ºC from -40.00°C to 60.00°C, otherwise ±0.5°C |
| Display: | Touchscreen |
| Alarm: | Remote through TraceableLIVE® |
| Notes: | System Requirements: 5 or 2.4 GHz Wif-Fi connection |
- TraceableLIVE-capable products securely monitor your critical environments and notify your smartphone, tablet, or PC if anything goes wrong.
- Notifications for peace of mind - Everyone on your team can receive email, text, and push notifications on the environments you monitor.
- Remotely view data logging history, effortlessly generate reports, control alarm parameters.
- Traceable products come calibrated to NIST standards, helping you meet quality and regulatory requirements.
- Digital data reports sent with ease whenever you need them.
- Customize your report with location, device, date range, and report format.
| FREE |
|---|
| E-mail and push alarms |
| 1 user only |
| 1 month data storage |
| Up to 3 devices |
| Calibration due and other notifications |
| STANDARD |
|---|
| 1 YR - 6650 (63003-36) | 2 YR - 6651 (63003-37) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| SMS Text notifications available for a fee in the Traceable App |
| PREMIUM |
|---|
| 1 YR - 6652 (63003-38) | 2 YR - 6653 (63003-39) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| 21 CFR Part 11 compliance** |
| SMS text notifications included |
** TraceableLIVE® fully-compliant premium subscription meets 21 CFR Part 11 North American compliance and Annex 11 for Europe. All devices include ISO 17025 accredited calibration. If any of your TraceableLIVE® devices detect an out of range condition, lose connection to your network, begin to run low on battery, or if your device is due for calibration TraceableLIVE® will immediately send you alerts based on your settings.
