Traceable® 7672TR Wi‑Fi Data Logger Kit with Smart Temperature Bottle Probe, Door Sensor, and 1-Year Premium TraceableLIVE® Cloud Service Subscription
Traceable® 7672TR Wi‑Fi Data Logger Kit with Smart Temperature Bottle Probe, Door Sensor, and 1-Year Premium TraceableLIVE® Cloud Service Subscription
The Traceable® 7672TR Wi‑Fi Data Logger Kit is a complete cloud-connected monitoring solution for refrigerators, freezers, vaccine storage units, pharmacies, laboratories, healthcare facilities, and pharmaceutical environments. The kit includes a Traceable® 7600 Series Touch Screen Wi‑Fi Data Logger, Smart Temperature Bottle Probe, Open Door Sensor, and a 1-Year Premium TraceableLIVE® subscription for remote monitoring, alarm management, and compliance reporting.
Key Features

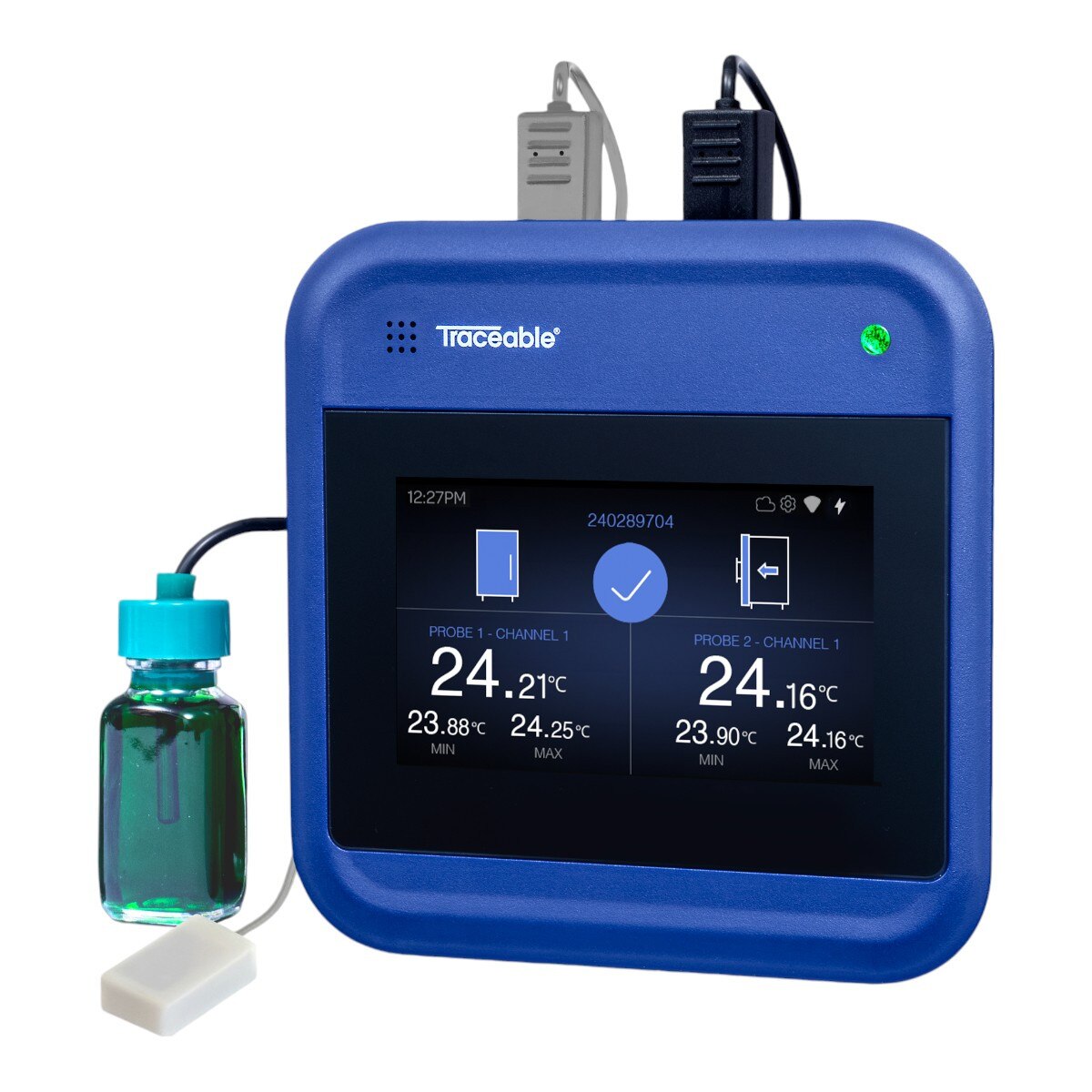

- Complete monitoring kit with data logger, Smart Temperature Bottle Probe, door sensor, and 1-year Premium TraceableLIVE® subscription
- Smart Probe stores calibration data internally for rapid deployment
- Probe replacement simplifies recalibration and reduces downtime
- Supports up to two Smart Probes and two door sensors
- Bottle probe includes built-in traceable calibration data
- Door sensor alerts users when monitored doors remain open
- Touchscreen interface for easy setup and operation
- Optional PIN protection for enhanced security
- Cloud-based monitoring, reporting, and alarm management
- Supports 2.4 GHz and 5 GHz Wi‑Fi networks
- Email, text, and mobile alarm notifications
- No local software installation required
- Wall-mount or countertop placement
- Includes Traceable® Certificate for Smart Probe
- 1-year warranty
Product Details
The 7672TR Kit provides a turnkey temperature monitoring solution for regulated and temperature-sensitive storage applications. Designed for refrigerators and freezers, the included Smart Temperature Bottle Probe helps provide product-simulated temperature monitoring rather than measuring air temperature alone.
The glycol-filled bottle probe mimics the thermal characteristics of stored vaccines, pharmaceuticals, biologics, and laboratory samples, helping reduce nuisance alarms caused by brief door openings and temporary air temperature fluctuations.
Smart Probe technology stores calibration information within the probe itself. When connected to the data logger, the probe is automatically recognized, simplifying installation and future recalibration. Replacing the probe restores calibration without removing the logger from service.
The included door sensor provides additional protection by alerting users when monitored doors remain open. Through TraceableLIVE®, users can securely monitor conditions 24/7, review historical records, generate reports, and receive alarm notifications via email, text message, or mobile alerts.
The touchscreen display provides convenient local access to temperature readings and settings, while optional PIN protection helps prevent unauthorized configuration changes.
Specifications
- Product Type: Wi‑Fi Data Logger Monitoring Kit
- Cloud Platform: TraceableLIVE®
- Included Subscription: 1-Year Premium TraceableLIVE® Subscription
- Total Channels: 4
- Input Type: Smart Temperature Bottle Probe and Door Sensor
- Maximum Smart Probes: 2
- Maximum Door Sensors: 2
- Temperature Range: -50 to 60°C (-58 to 140°F)
- Resolution: 0.01°C / 0.01°F
- Accuracy: ±0.25°C from -40 to 60°C; ±0.5°C outside this range
- Connectivity: 2.4 GHz and 5 GHz Wi‑Fi
- Alarm Type: Remote Alerts Through TraceableLIVE®
- Security: Optional PIN Protection
- Display: Touchscreen
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Mounting Options: Wall Mount or Countertop
- Dimensions: 5.75 × 5.75 × 1.22 in.
- Description: Wi‑Fi Data Logger Kit with Smart Temperature Bottle Probe, Door Sensor, and TraceableLIVE® Subscription
- Warranty: 1 Year
Includes

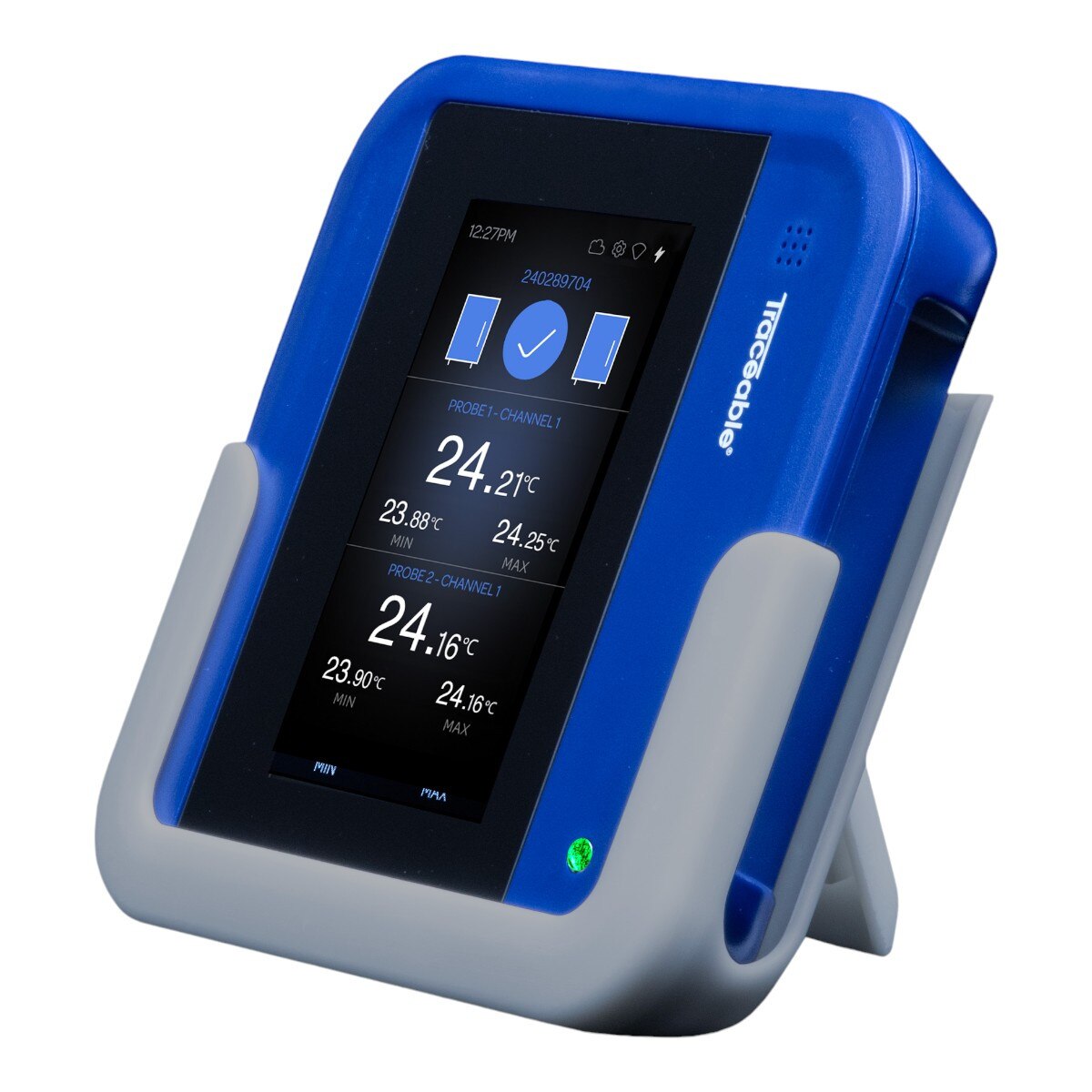

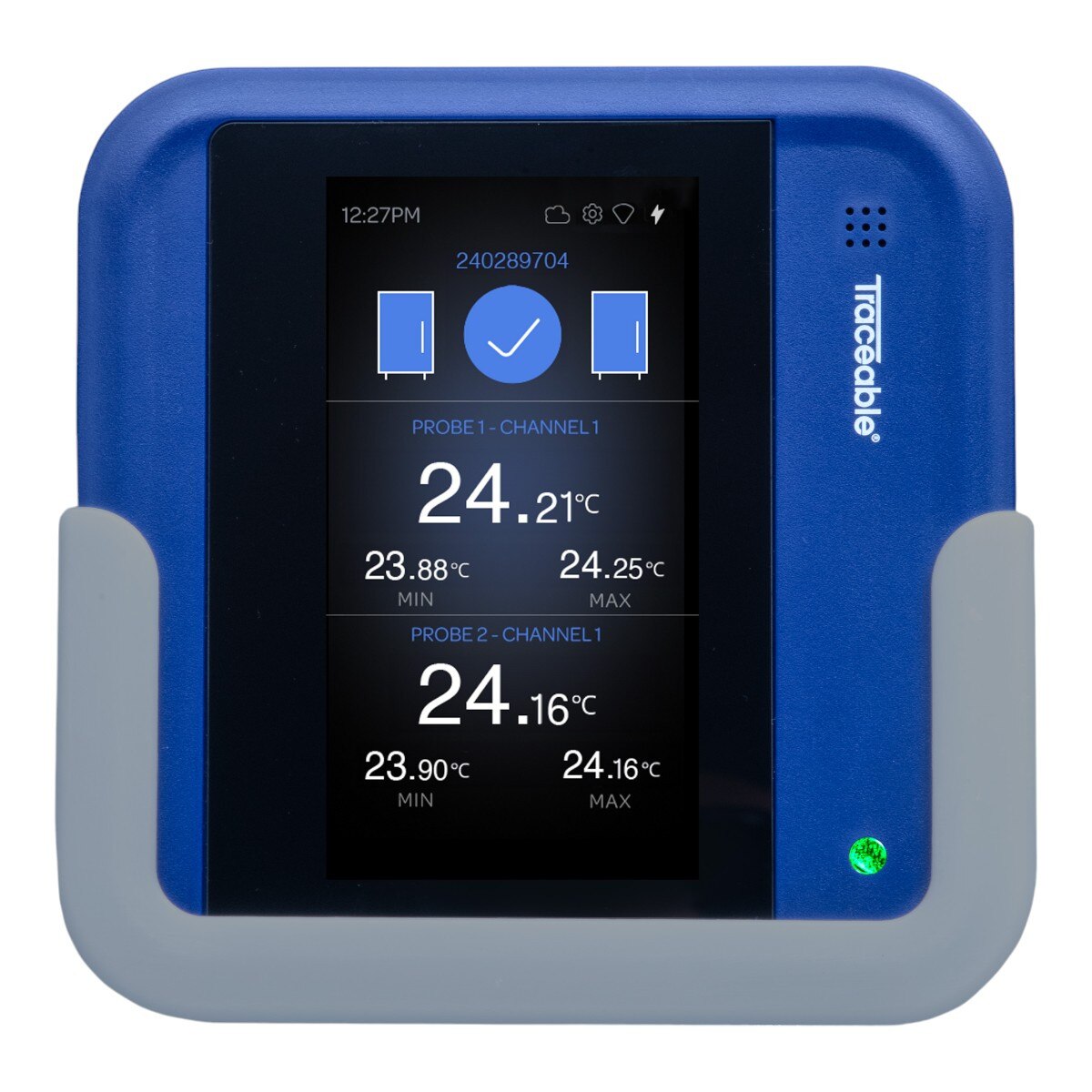

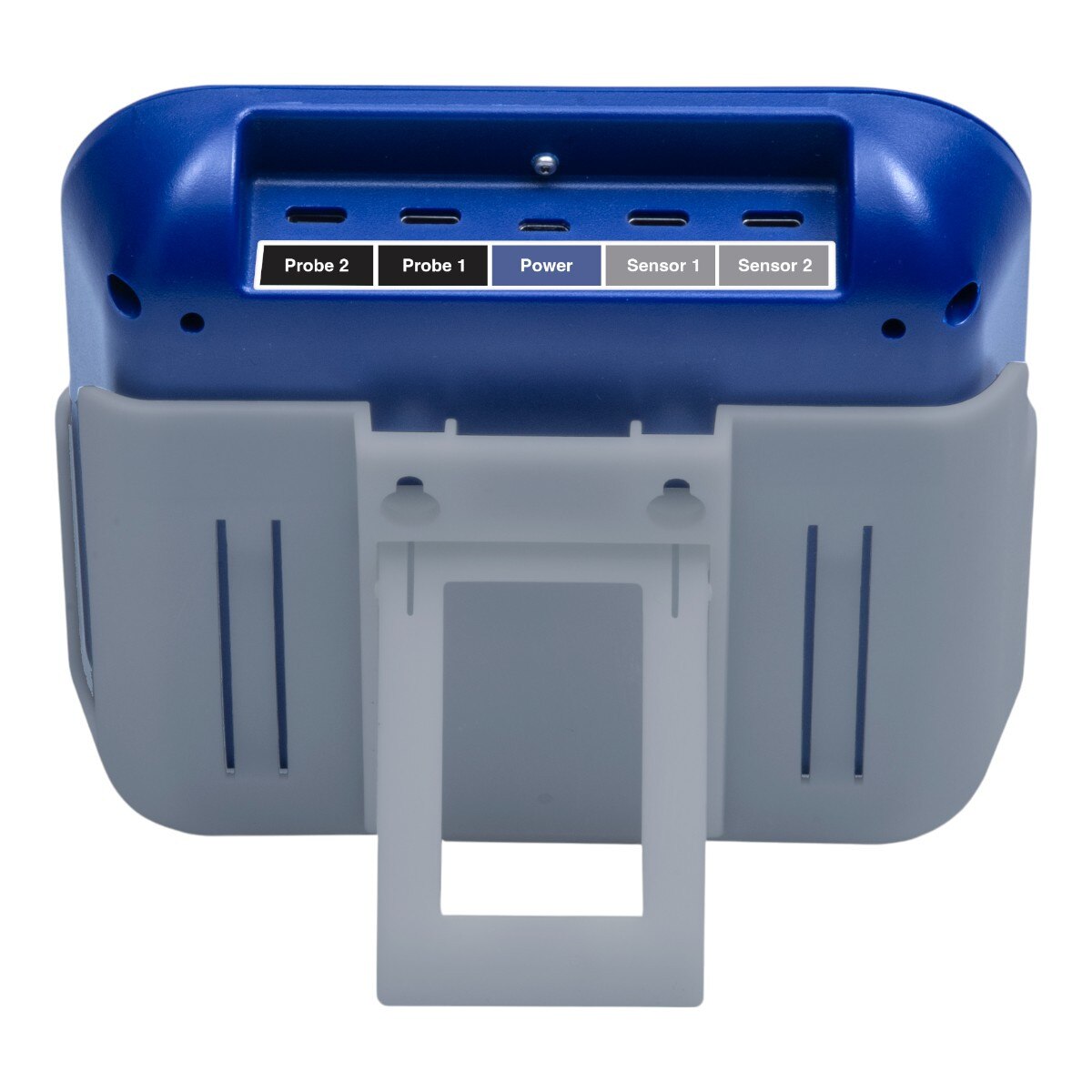

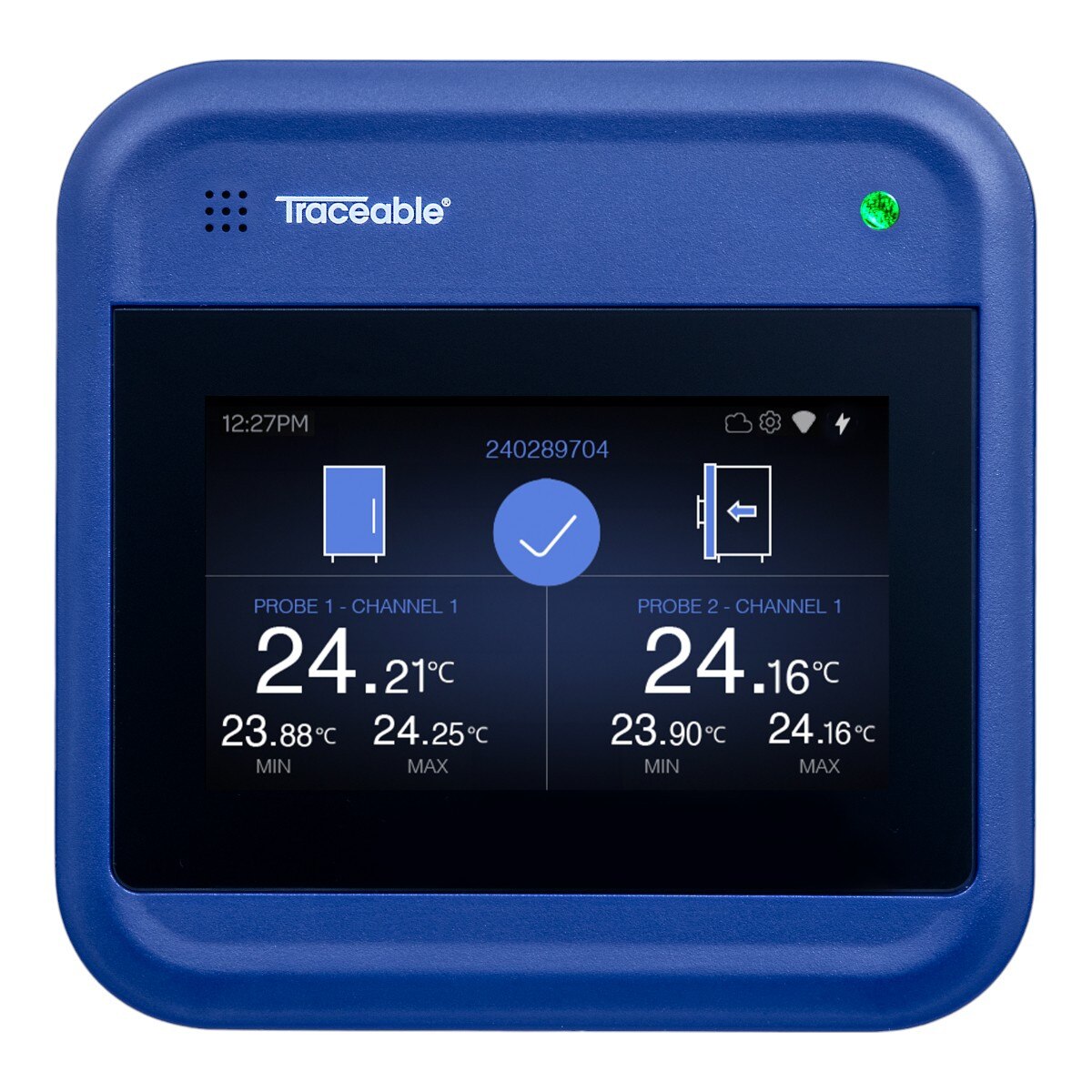

- Traceable® 7600 Touch Screen Wi‑Fi Data Logger
- Smart Temperature Bottle Probe
- Open Door Sensor
- Mountable Cradle
- Hook-and-Loop Adhesive Strip
- Power Supply
- 1-Year Premium TraceableLIVE® Subscription Activation Code
- Traceable® Certificate (Smart Probe)
Ideal for vaccine refrigerators, pharmacy storage units, laboratory refrigerators and freezers, healthcare facilities, pharmaceutical manufacturers, blood banks, biotechnology laboratories, and applications requiring cloud-based temperature monitoring, remote alerts, door monitoring, and traceable calibration.
| Product Type: | Datalogging Temperature Meter |
| Brand: | Traceable |
| Product Line: | TraceableLIVE |
| Class: | WiFi Datalogging with Remote Notification |
| Temperature Range: | -50.00º to 60.00ºC ( -58.00 to 140.00ºF) |
| Temperature Resolution: | 0.01º |
| Temperature Accuracy: | ±0.25ºC from -40.00°C to 60.00°C, otherwise ±0.5°C |
| Display: | Touchscreen |
| Alarm: | Remote through TraceableLIVE® |
| Notes: | System Requirements: 5 or 2.4 GHz Wif-Fi connection |
- TraceableLIVE-capable products securely monitor your critical environments and notify your smartphone, tablet, or PC if anything goes wrong.
- Notifications for peace of mind - Everyone on your team can receive email, text, and push notifications on the environments you monitor.
- Remotely view data logging history, effortlessly generate reports, control alarm parameters.
- Traceable products come calibrated to NIST standards, helping you meet quality and regulatory requirements.
- Digital data reports sent with ease whenever you need them.
- Customize your report with location, device, date range, and report format.
| FREE |
|---|
| E-mail and push alarms |
| 1 user only |
| 1 month data storage |
| Up to 3 devices |
| Calibration due and other notifications |
| STANDARD |
|---|
| 1 YR - 6650 (63003-36) | 2 YR - 6651 (63003-37) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| SMS Text notifications available for a fee in the Traceable App |
| PREMIUM |
|---|
| 1 YR - 6652 (63003-38) | 2 YR - 6653 (63003-39) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| 21 CFR Part 11 compliance** |
| SMS text notifications included |
** TraceableLIVE® fully-compliant premium subscription meets 21 CFR Part 11 North American compliance and Annex 11 for Europe. All devices include ISO 17025 accredited calibration. If any of your TraceableLIVE® devices detect an out of range condition, lose connection to your network, begin to run low on battery, or if your device is due for calibration TraceableLIVE® will immediately send you alerts based on your settings.
