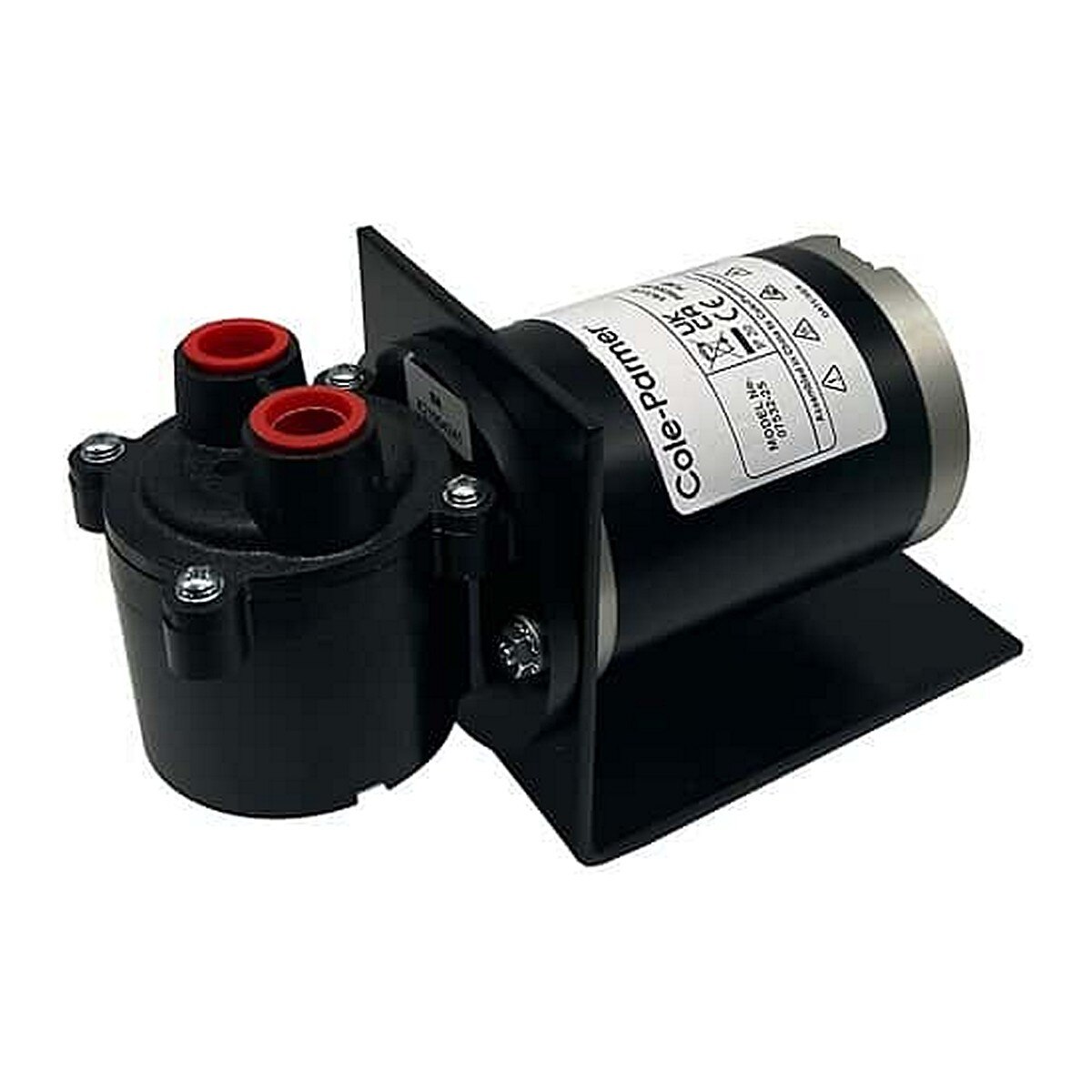

Cole-Parmer VP-200 Vacuum/Pressure Pump, Diaphragm, Single Head, 0.6 cfm; 12 VDC
Images are for representation only. Actual product may differ in size, color or options.
Cole-Parmer VP-200 Vacuum/Pressure Pump, Diaphragm, Single Head, 0.6 cfm; 12 VDC
Single-head vacuum pumps are economically priced and can handle many tough vacuum/pressure applications. Pumps feature an all-plastic, convoluted diaphragm design constructed with a Noryl™ pump head, FKM diaphragm, PTFE valves, and polyethylene (PE) adapters.
NOTE: Do not use metal fittings with any of these pumps.
- No maintenance needed—motors are brushless with sealed ball bearings.
- Worry-free pumping with reduced stress, wear, and heat buildup.
- Free Air Capacity - 0.61 cfm.
- Power - 24 VDC.
- 1 year warranty.
INCLUDES: Pump with pigtails..
| Product Type: | Diaphragm Pump |
| Brand: | Cole-Parmer |
| Product Line: | Air Cadet |
| Capacity: | 0.61 CFM |
| Max Pressure (PSI): | 18 |
| Connections: | 3/8" NPT |
| Power Supply: | 12 VDC |
| Warranty: | 1 year |
| Net Weight: | 6 lbs |
| Overall Dimensions: | 19.7 x 8.9 x 11.4 cm (7.7 x 3.5 x 4.5 in) |
| Includes: | Pump with pigtails. |
| Notes: | Max. Vacuum: 508 mm Hg (20 in Hg) |
| Working Environment: | 0 to 40 °C (32 to 104 °F); 10 to 90% RH non to condensing |
