CPI-07532-80

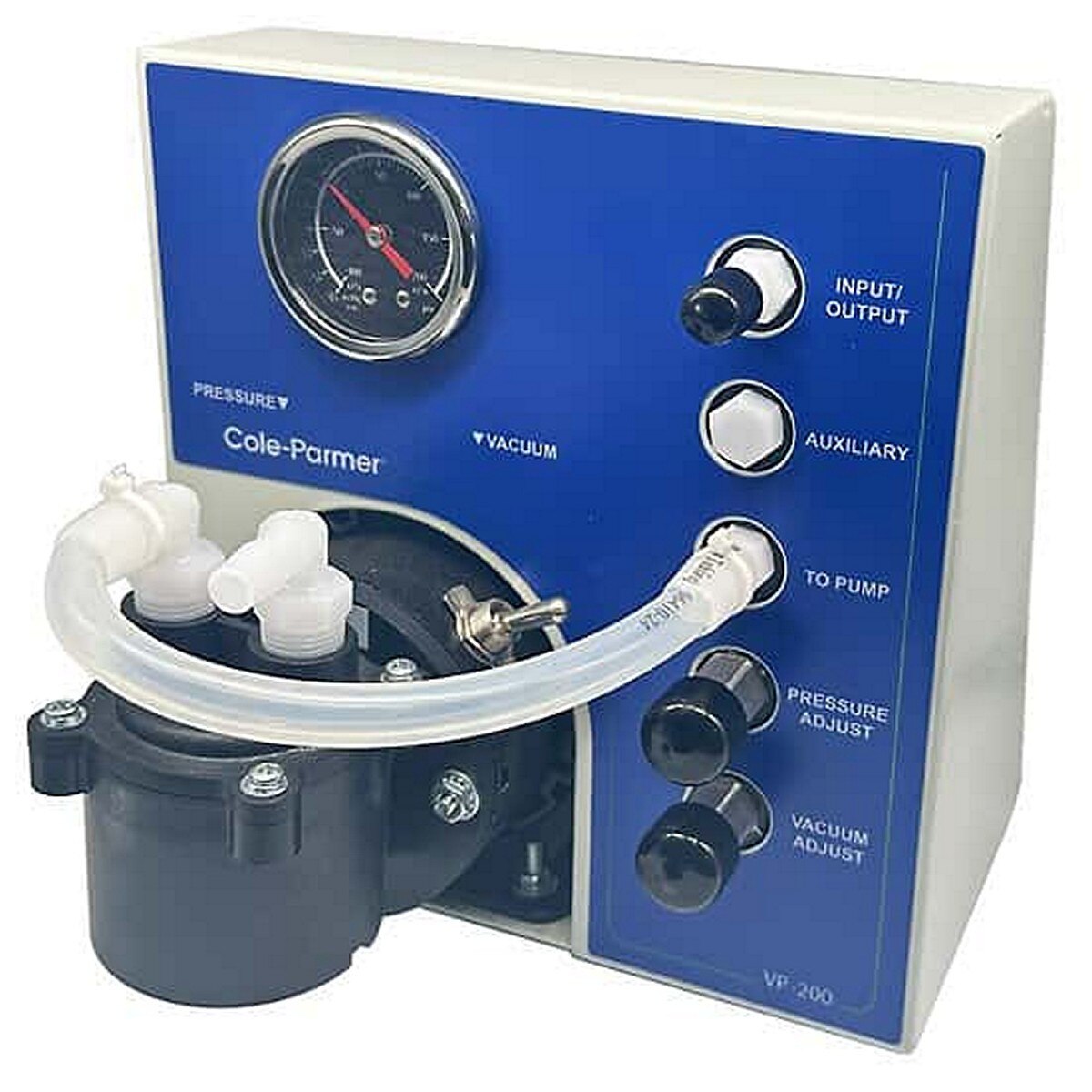

Cole-Parmer VP-200 Vacuum/Pressure Pump Station, Diaphragm, 0.6 cfm; 115 VAC
Single-head vacuum pumps are economically priced and can handle many tough vacuum/pressure applications. Pumps feature an all-plastic, convoluted diaphragm design constructed with a Noryl™ pump head, FKM diaphragm, PTFE valves, and polyethylene (PE) adapters.
NOTE: Do not use metal fittings with any of these pumps.
Station features a built-in bronze and brass vacuum/pressure gauge and stainless steel (SS) regulator. Use the auxiliary port to evacuate or pressurize two systems simultaneously. Each station includes a 9" (22.8 cm) piece of vinyl tubing to connect pump to the regulator.
- No maintenance needed—motors are brushless with sealed ball bearings.
- Worry-free pumping with reduced stress, wear, and heat buildup.
- Free Air Capacity - 0.61 cfm.
- Power - 115 VAC.
- 1 year warranty.
INCLUDES: Thread tape of PTFE resin, two polyethylene (PE) 3/8" NPT(M) x 3/8" hose barb adapters, one PE 1/4" NPT(M) x 3/8" hose barb adapter (for auxiliary port), and a 6-ft (1.8-m), three-wire cord and plug.
| Product Type: | Diaphragm Pump |
| Brand: | Cole-Parmer |
| Product Line: | Air Cadet |
| Capacity: | 0.61 CFM |
| Max Pressure (PSI): | 18 |
| Motor: | 1/50 hp at 1550 rpm |
| Connections: | 3/8" NPT |
| Power Supply: | 115 VAC 60 Hz, US Plug |
| Warranty: | 1 year |
| Net Weight: | 11.75 lbs |
| Overall Dimensions: | 24.4 x 20.3 x 22.2 cm (9.6 x 8 x 8.7 in) |
| Includes: | Thread tape of PTFE resin, two polyethylene (PE) 3/8" NPT(M) x 3/8" hose barb adapters, one PE 1/4" NPT(M) x 3/8" hose barb adapter (for auxiliary port), and a 6-ft (1.8-m), three-wire cord and plug |
| Notes: | Max. Vacuum: 508 mm Hg (20 in Hg) |
| Working Environment: | 0 to 40 °C (32 to 104 °F); 10 to 90% RH non to condensing |
