CPI-07532-40
Images are for representation only. Actual product may differ in size, color or options.

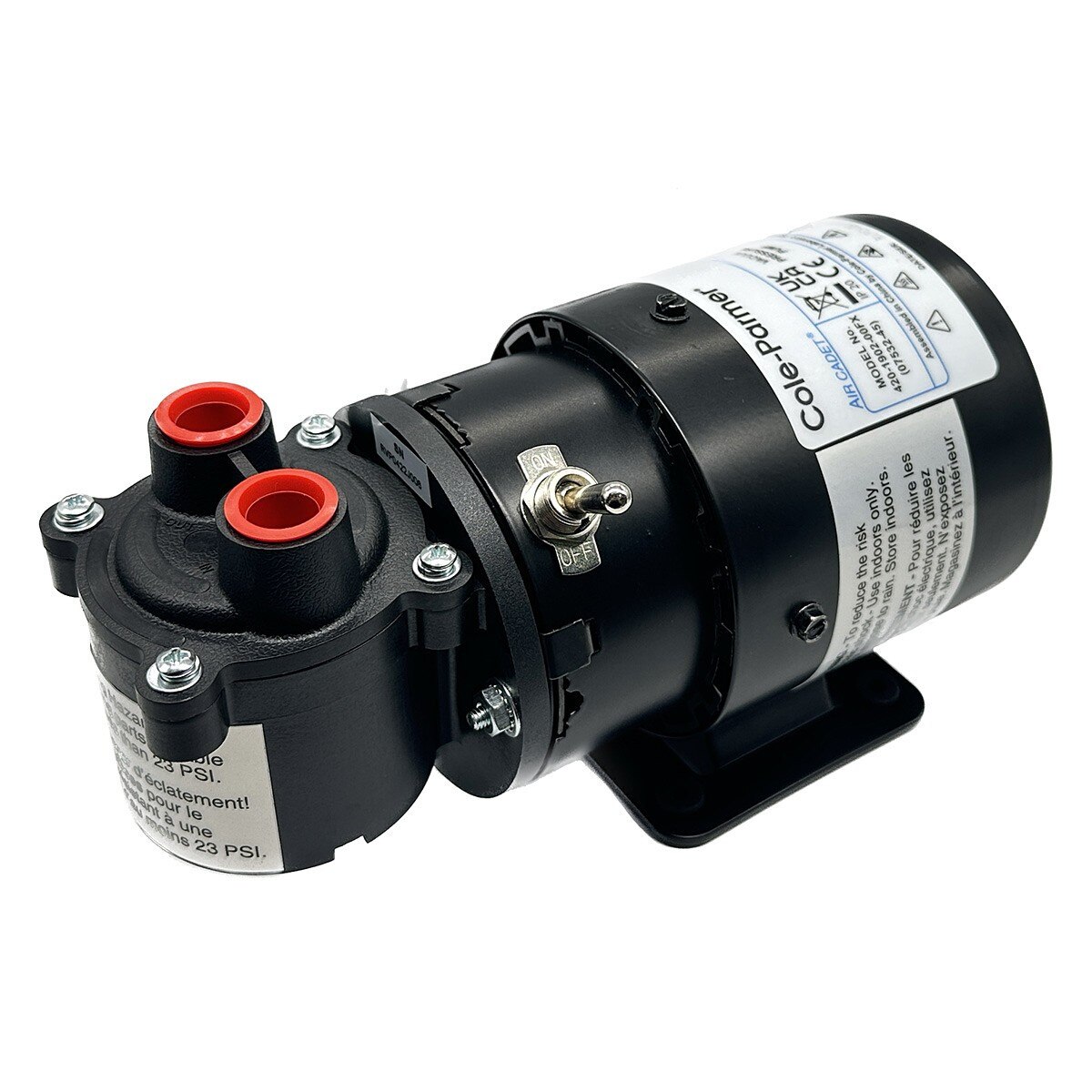

Cole-Parmer VP-200 Vacuum/Pressure Pump, Diaphragm, Single Head, 0.6 cfm; 115 VAC
Single-head vacuum pumps are economically priced and can handle many tough vacuum/pressure applications. Pumps feature an all-plastic, convoluted diaphragm design constructed with a Noryl™ pump head, FKM diaphragm, PTFE valves, and polyethylene (PE) adapters.
NOTE: Do not use metal fittings with any of these pumps.
- No maintenance needed—motors are brushless with sealed ball bearings.
- Worry-free pumping with reduced stress, wear, and heat buildup.
- Free Air Capacity - 0.61 cfm.
- Power - 115 VAC.
- 1 year warranty.
INCLUDES: Thread tape made of PTFE resin, two polyethylene 3/8" NPT(M) x 3/8" hose barb adapters, and a 6-ft (1.8 m), three-wire cord and plug. Power switch included on pump motor.
Product Type: | Diaphragm Pump |
Brand: | Cole-Parmer |
Product Line: | Air Cadet |
Capacity: | 0.61 CFM |
Max Pressure (PSI): | 18 |
Motor: | 1/50 hp at 1550 rpm |
Connections: | 3/8" NPT |
Power Supply: | 115 VAC 60 Hz, US Plug |
Warranty: | 1 year |
Net Weight: | 6.45 lbs |
Overall Dimensions: | 20.3 x 10.2 x 10.8 cm (8 x 4 x 4.25 in) |
Includes: | Thread tape made of PTFE resin, two polyethylene 3/8" NPT(M) x 3/8" hose barb adapters, and a 6-ft (1.8 m), three-wire cord and plug. Power switch included on pump motor. |
Notes: | Max. Vacuum: 508 mm Hg (20 in Hg) |
Working Environment: | 0 to 40 °C (32 to 104 °F); 10 to 90% RH non to condensing |
