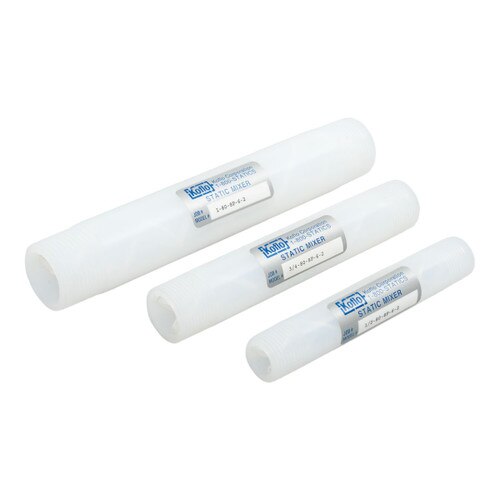

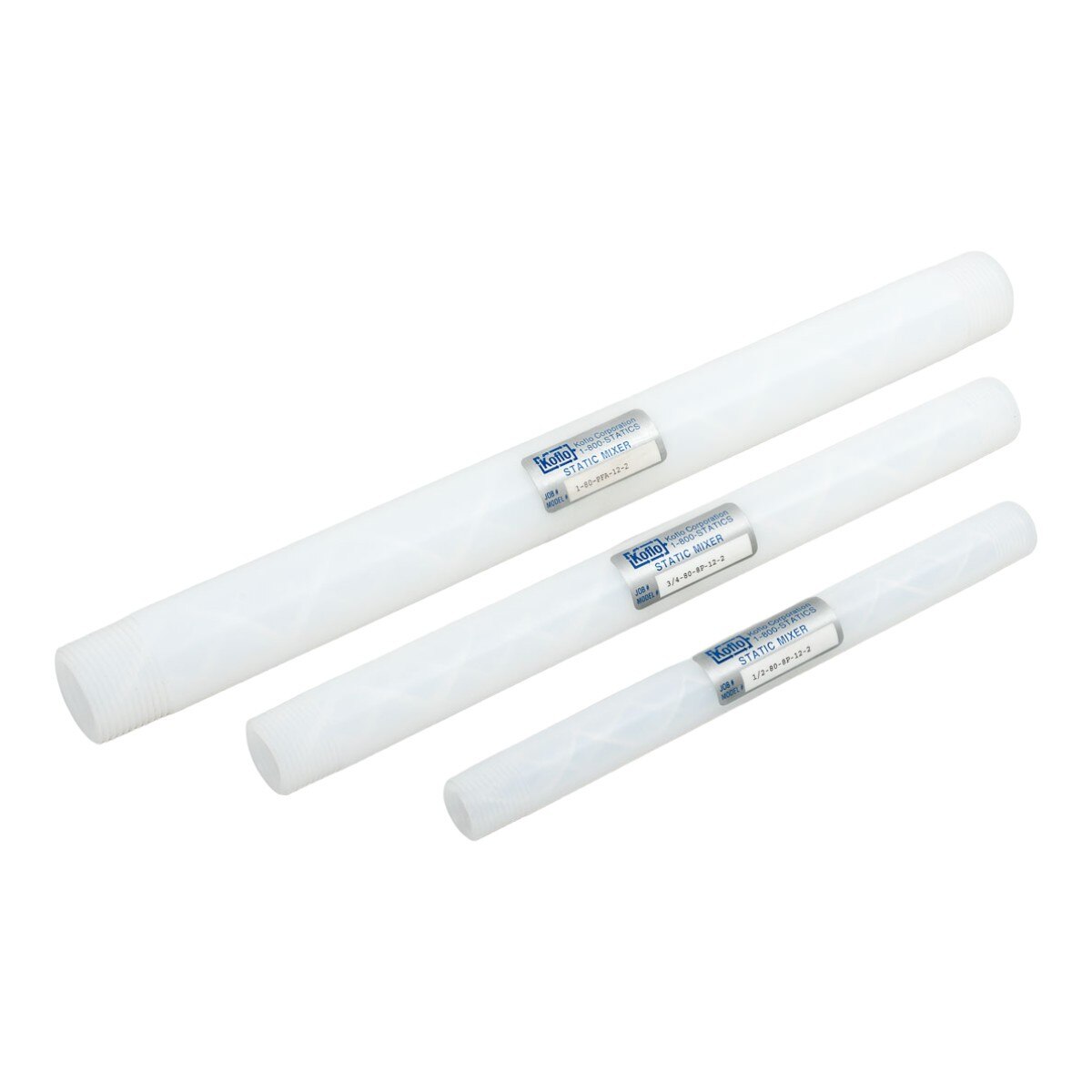

1/2" PFA Static Mixer (12 Elements, 9" Length)
Images are for representation only. Actual product may differ in size, color or options.
1/2" PFA Static Mixer (12 Elements, 9" Length)
Extended‑length 1/2" PFA static mixer with twelve elements for enhanced mixing efficiency. Ideal for demanding corrosive or high‑purity dosing applications.
Typical Applications
- High‑purity chemical blending
- Corrosive chemical injection
- Ultra‑pure water systems
- Semiconductor and pharmaceutical processes
Features
- All‑PFA construction for maximum chemical resistance
- PFA mixing elements with precision geometry
- Male NPT threaded ends
- Non‑metallic, corrosion‑proof design
- High‑temperature capability up to 400°F
Specifications
- Length: 9"
- Weight: 0.28 lb
- Max Pressure: 206 psi @ 70°F
- Max Temp: 400°F
Model Specifications
| Model Number | Pipe Dia. MNPT Ends | Elements | Length | Weight | Max Pressure @ 70°F | Max Temp (°F) |
|---|---|---|---|---|---|---|
| 1/2-80-8P-6-2 | 1/2" | 6 | 5" | 0.15 lb | 206 psi | 400 |
| 1/2-80-8P-12-2 | 1/2" | 12 | 9" | 0.28 lb | 206 psi | 400 |
| 3/4-80-8P-6-2 | 3/4" | 6 | 6" | 0.21 lb | 173 psi | 400 |
| 3/4-80-8P-12-2 | 3/4" | 12 | 12" | 0.40 lb | 173 psi | 400 |
| 1-80-8P-6-2 | 1" | 6 | 8" | 0.40 lb | 159 psi | 400 |
| 1-80-8P-12-2 | 1" | 12 | 15" | 0.75 lb | 159 psi | 400 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PFA |
| Length: | 9" |
| Net Weight: | 0.28 lb |
