KOF-3/4-80-8P-6-2
3/4" MNPT Static Mixer 6 elements, 6" long, PFA

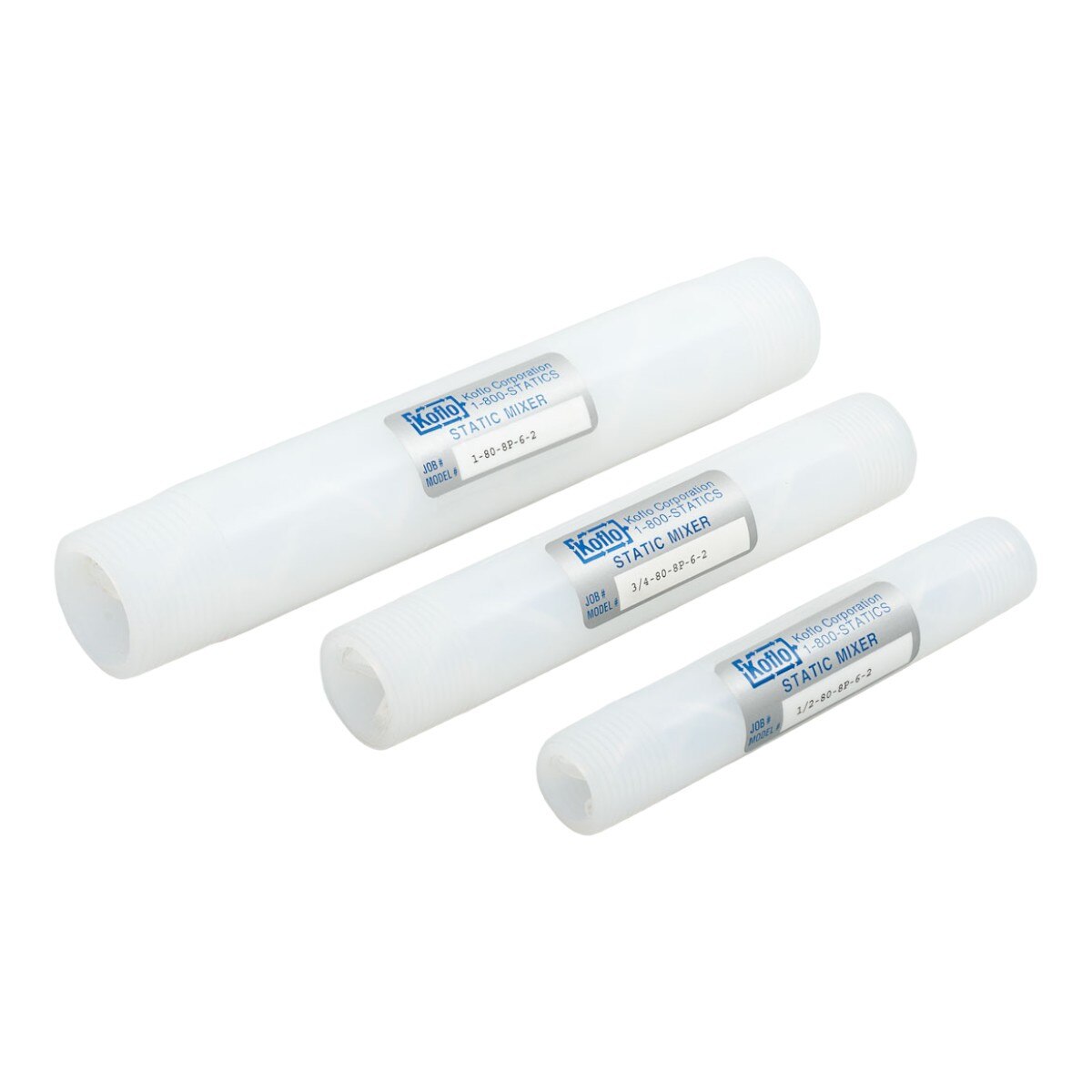

Koflo threaded PFA chemical resistant static mixers are available from 1/2" to 1" diameter and are constructed of schedule 80 PFA. Complete with solid PFA mixing elements welded to the interior pipe wall, Koflo PFA chemical-resistant static mixers are our most versatile, in-stock option for aggressive chemical mixing, higher temperature applications, or other applications where enhanced chemical resistance is a critical factor.
Typical Applications
- pH control.
- Aggressive chemical mixing.
- Thermal homogeneity.
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above.
Features
Housing: Schedule 80 PFA
Elements: Koflo Blade™ Style Solid PFA
End Connections: Machined Male NPT (Threaded Ends)
- Solid PFA design offers superior corrosion resistance.
- Lightweight and easy to install with male NPT threaded ends.
| Model Number | Pipe Dia. MNPT Ends | Number of Elements | Length | Weight | Max. Working Pressure Pressure (PSI) @ 70°F | Max. Working Temperature (°F) |
|---|---|---|---|---|---|---|
| 1/2-80-8P-6-2 | 1/2" | 6 | 5" | 0.15 lb | 206 | 400 |
| 1/2-80-8P-12-2 | 1/2" | 12 | 9" | 0.28 lb | 206 | 400 |
| 3/4-80-8P-6-2 | 3/4" | 6 | 6" | 0.21 lb | 173 | 400 |
| 3/4-80-8P-12-2 | 3/4" | 12 | 12" | 0.40 lb | 173 | 400 |
| 1-80-8P-6-2 | 1" | 6 | 8" | 0.40 lb | 159 | 400 |
| 1-80-8P-12-2 | 1" | 12 | 15" | 0.75 lb | 159 | 400 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PFA |
| Length: | 6" |
| Net Weight: | 0.21 lb |
