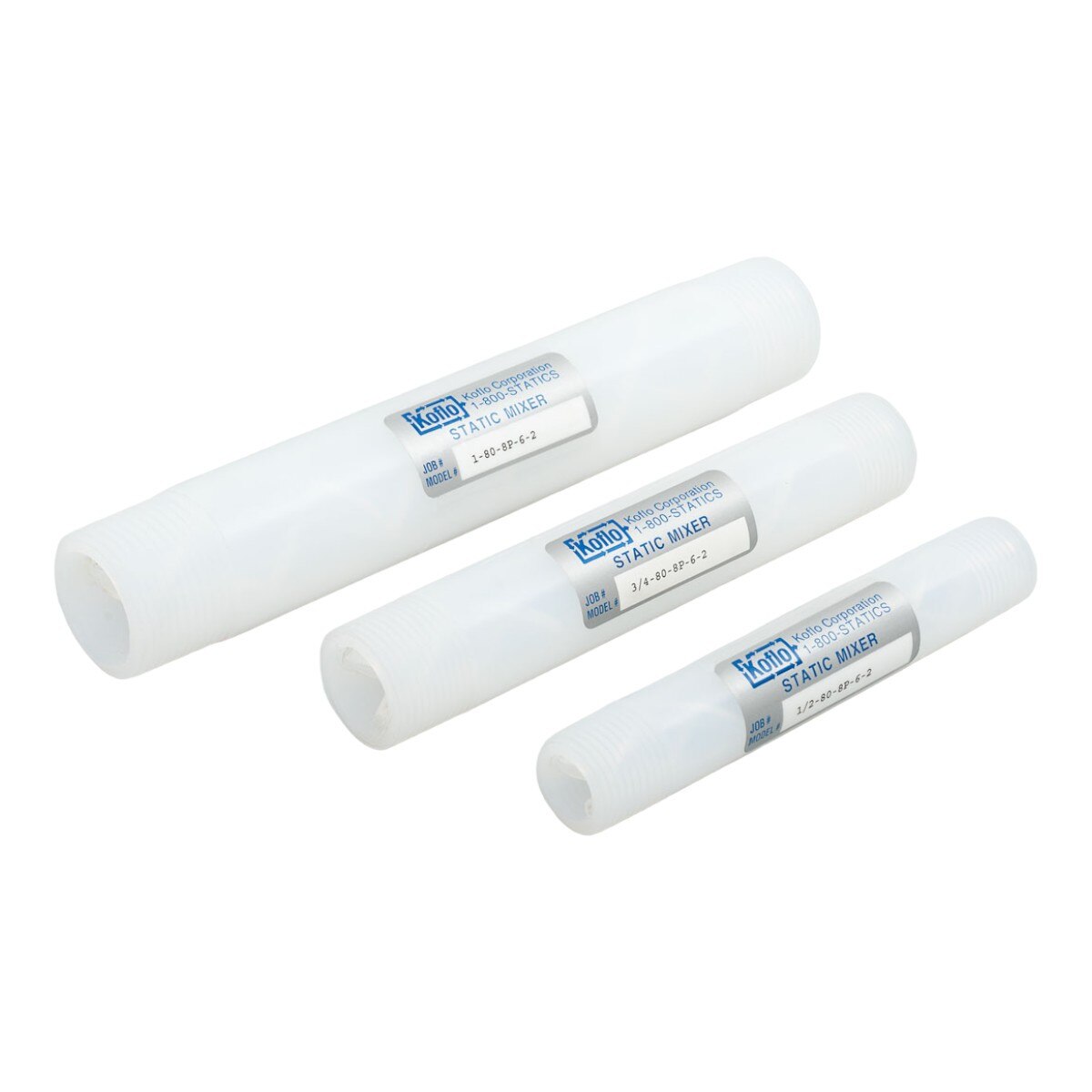

1" PFA Static Mixer (6 Elements, 8" Length)
Images are for representation only. Actual product may differ in size, color or options.
1" PFA Static Mixer (6 Elements, 8" Length)
High‑performance 1" PFA static mixer for aggressive chemical service. Six PFA elements provide reliable inline blending for high‑purity and corrosive media.
Typical Applications
- High‑purity chemical blending
- Corrosive chemical injection
- Ultra‑pure water systems
- Semiconductor and pharmaceutical processes
Features
- All‑PFA construction for maximum chemical resistance
- PFA mixing elements with precision geometry
- Male NPT threaded ends
- Non‑metallic, corrosion‑proof design
- High‑temperature capability up to 400°F
Specifications
- Length: 8"
- Weight: 0.40 lb
- Max Pressure: 159 psi @ 70°F
- Max Temp: 400°F
Model Specifications
| Model Number | Pipe Dia. MNPT Ends | Elements | Length | Weight | Max Pressure @ 70°F | Max Temp (°F) |
|---|---|---|---|---|---|---|
| 1/2-80-8P-6-2 | 1/2" | 6 | 5" | 0.15 lb | 206 psi | 400 |
| 1/2-80-8P-12-2 | 1/2" | 12 | 9" | 0.28 lb | 206 psi | 400 |
| 3/4-80-8P-6-2 | 3/4" | 6 | 6" | 0.21 lb | 173 psi | 400 |
| 3/4-80-8P-12-2 | 3/4" | 12 | 12" | 0.40 lb | 173 psi | 400 |
| 1-80-8P-6-2 | 1" | 6 | 8" | 0.40 lb | 159 psi | 400 |
| 1-80-8P-12-2 | 1" | 12 | 15" | 0.75 lb | 159 psi | 400 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PFA |
| Length: | 8" |
| Net Weight: | 0.4 lb |
