1" Clear PVC Static Mixer (12 Elements, 18" Length)

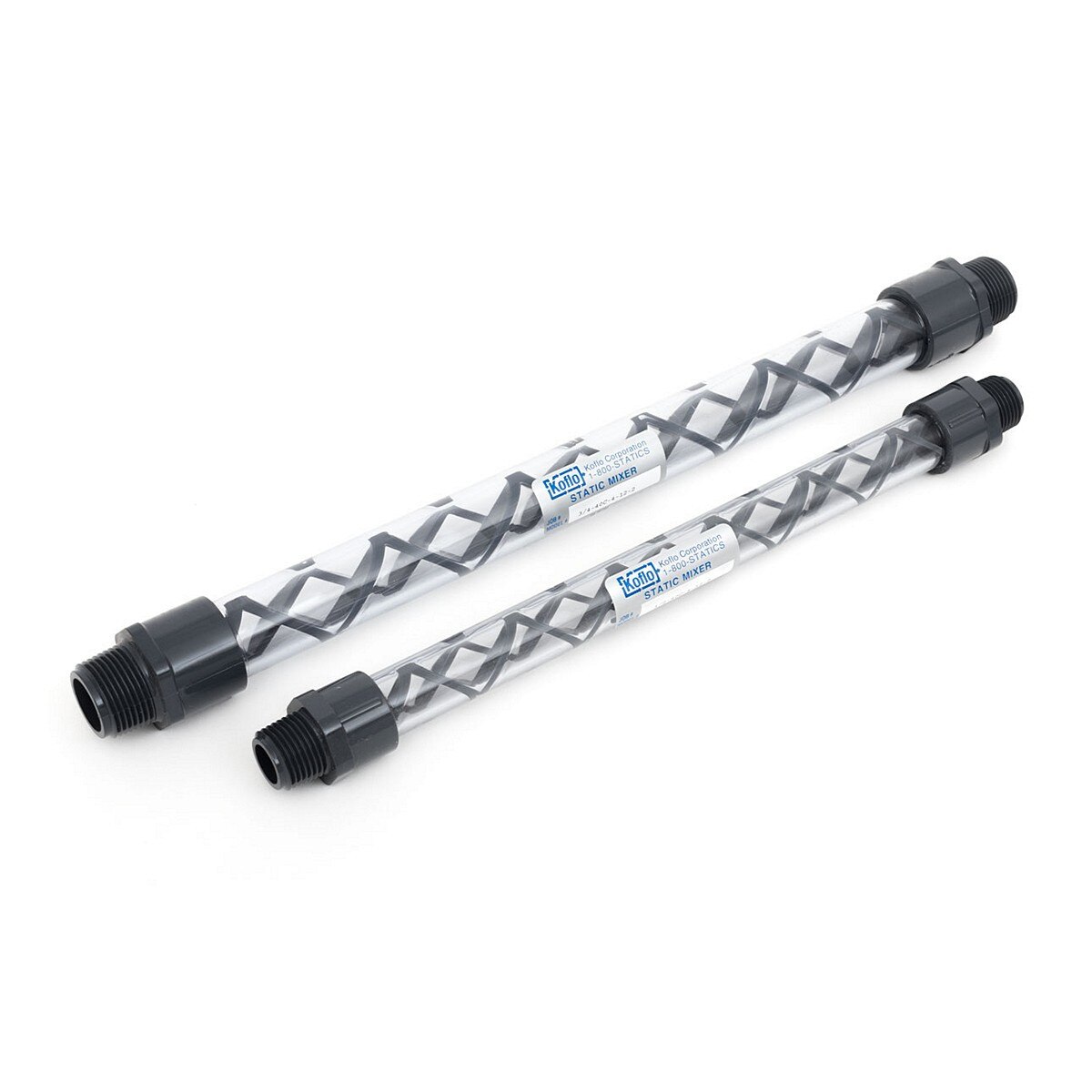

Images are for representation only. Actual product may differ in size, color or options.
1" Clear PVC Static Mixer (12 Elements, 18" Length)
This 1" clear PVC static mixer with twelve elements offers higher mixing efficiency for dosing and conditioning applications in 1" piping. The transparent body supports continuous visual verification of mixing quality.
Typical Applications
- High-accuracy chemical dosing and blending
- pH control and neutralization
- Chlorination and ozonation
- Process control sampling
Features
- Housing: Schedule 40 clear PVC
- Elements: Koflo Blade™ style PVC, edge-sealed
- End connections: Male NPT (threaded)
- Clear PVC pipe allows visual inspection of mixing process
- Cost-effective, corrosion-resistant construction
- Certified to NSF / ANSI 61
- Length: 18", Weight: 9.9 oz
- Max working pressure: 220 psi @ 75°F
- Typical flow range: 2.5–16 GPM
Model Specifications
| Model Number | Pipe Dia. MNPT Ends | Elements | Length | Weight | Max Pressure @ 75°F | Max Temp (°F) | Typical Flow (GPM) | Pressure Loss (PSI) |
|---|---|---|---|---|---|---|---|---|
| 3/8-40C-4-6-2 | 3/8" | 6 | 6.5" | 1.3 oz | 310 psi | 75 | 0.4 – 3 | 0.25 – 11.25 |
| 3/8-40C-4-12-2 | 3/8" | 12 | 11" | 2.1 oz | 310 psi | 75 | 0.4 – 3 | 0.50 – 22.5 |
| 1/2-40C-4-6-2 | 1/2" | 6 | 7" | 2.1 oz | 300 psi | 75 | 0.65 – 5 | 0.25 – 10 |
| 1/2-40C-4-12-2 | 1/2" | 12 | 12" | 3.3 oz | 300 psi | 75 | 0.65 – 5 | 0.50 – 20 |
| 3/4-40C-4-6-2 | 3/4" | 6 | 9" | 3.7 oz | 240 psi | 75 | 1.5 – 12 | 0.25 – 11 |
| 3/4-40C-4-12-2 | 3/4" | 12 | 15" | 5.8 oz | 240 psi | 75 | 1.5 – 12 | 0.50 – 22 |
| 1-40C-4-6-2 | 1" | 6 | 11" | 6.5 oz | 220 psi | 75 | 2.5 – 16 | 0.30 – 11.75 |
| 1-40C-4-12-2 | 1" | 12 | 18" | 9.9 oz | 220 psi | 75 | 2.5 – 16 | 0.60 – 23.5 |
| 1.25-40C-4-6-2 | 1-1/4" | 6 | 14" | 12.2 oz | 180 psi | 75 | 4 – 32 | 0.25 – 13.5 |
| 1.25-40C-4-12-2 | 1-1/4" | 12 | 25" | 18.3 oz | 180 psi | 75 | 4 – 32 | 0.50 – 27 |
| 1.5-40C-4-6-2 | 1-1/2" | 6 | 15" | 14.8 oz | 170 psi | 75 | 6 – 40 | 0.25 – 12.25 |
| 1.5-40C-4-12-2 | 1-1/2" | 12 | 28" | 25.4 oz | 170 psi | 75 | 6 – 40 | 0.50 – 24.5 |
| 2-40C-4-6-2 | 2" | 6 | 19" | 25 oz | 140 psi | 75 | 9 – 60 | 0.25 – 9.25 |
| 2-40C-4-12-2 | 2" | 12 | 35" | 43 oz | 140 psi | 75 | 9 – 60 | 0.50 – 18.5 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Clear |
| Certifications: | NSF 61 Certified |
