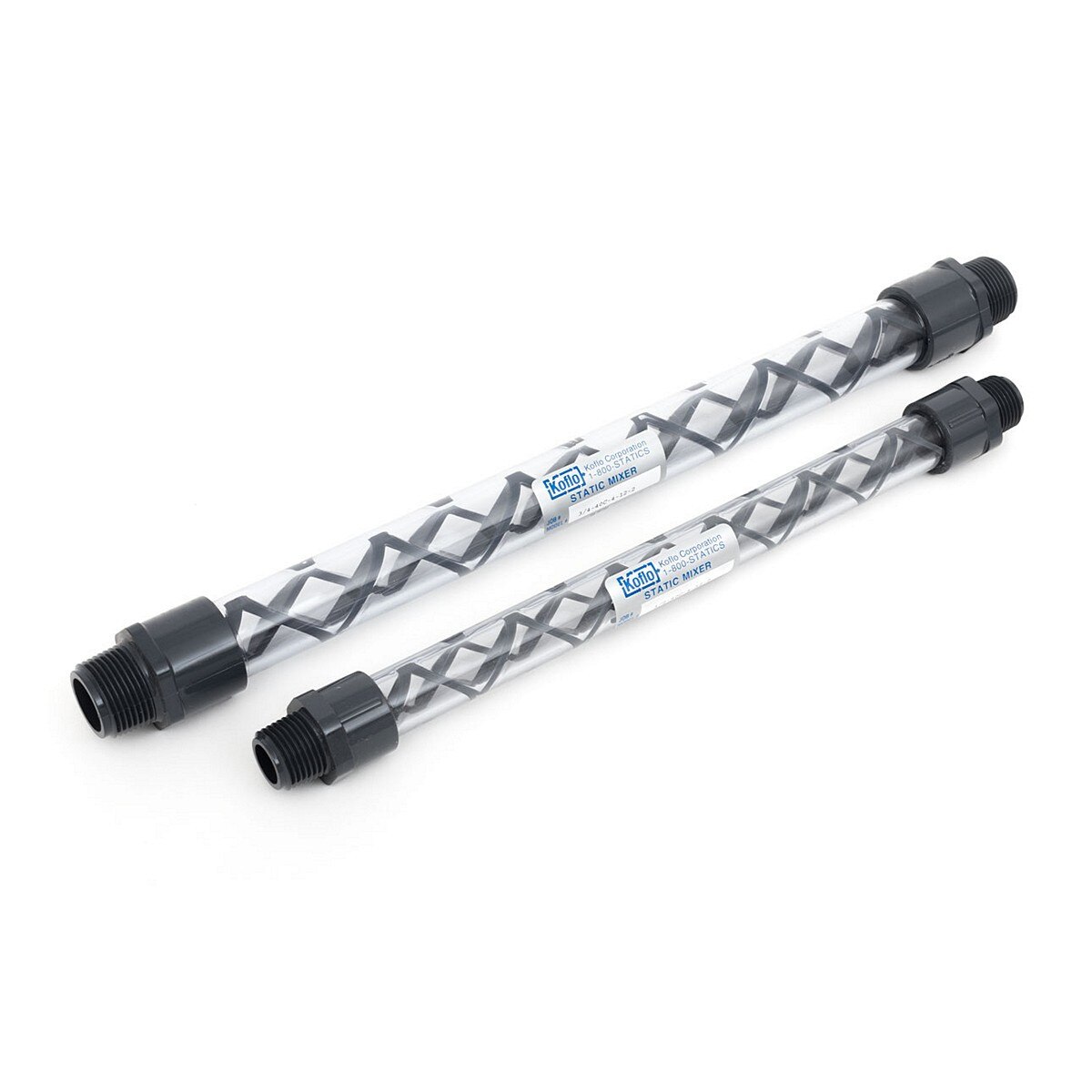

1.5" Clear PVC Static Mixer (12 Elements, 28" Length)
Images are for representation only. Actual product may differ in size, color or options.
1.5" Clear PVC Static Mixer (12 Elements, 28" Length)
This 1.5" clear PVC static mixer with twelve elements offers enhanced mixing performance for larger systems. The transparent housing and edge-sealed elements provide both visual assurance and robust mixing.
Typical Applications
- High-accuracy chemical blending in 1.5" lines
- pH control and neutralization
- Chlorination and ozonation
- Process control sampling
Features
- Housing: Schedule 40 clear PVC
- Elements: Koflo Blade™ style PVC, edge-sealed
- End connections: Male NPT (threaded)
- Clear PVC pipe allows visual inspection of mixing process
- Cost-effective, corrosion-resistant construction
- Certified to NSF / ANSI 61
- Length: 28", Weight: 25.4 oz
- Max working pressure: 170 psi @ 75°F
- Typical flow range: 6–40 GPM
Model Specifications
| Model Number | Pipe Dia. MNPT Ends | Elements | Length | Weight | Max Pressure @ 75°F | Max Temp (°F) | Typical Flow (GPM) | Pressure Loss (PSI) |
|---|---|---|---|---|---|---|---|---|
| 3/8-40C-4-6-2 | 3/8" | 6 | 6.5" | 1.3 oz | 310 psi | 75 | 0.4 – 3 | 0.25 – 11.25 |
| 3/8-40C-4-12-2 | 3/8" | 12 | 11" | 2.1 oz | 310 psi | 75 | 0.4 – 3 | 0.50 – 22.5 |
| 1/2-40C-4-6-2 | 1/2" | 6 | 7" | 2.1 oz | 300 psi | 75 | 0.65 – 5 | 0.25 – 10 |
| 1/2-40C-4-12-2 | 1/2" | 12 | 12" | 3.3 oz | 300 psi | 75 | 0.65 – 5 | 0.50 – 20 |
| 3/4-40C-4-6-2 | 3/4" | 6 | 9" | 3.7 oz | 240 psi | 75 | 1.5 – 12 | 0.25 – 11 |
| 3/4-40C-4-12-2 | 3/4" | 12 | 15" | 5.8 oz | 240 psi | 75 | 1.5 – 12 | 0.50 – 22 |
| 1-40C-4-6-2 | 1" | 6 | 11" | 6.5 oz | 220 psi | 75 | 2.5 – 16 | 0.30 – 11.75 |
| 1-40C-4-12-2 | 1" | 12 | 18" | 9.9 oz | 220 psi | 75 | 2.5 – 16 | 0.60 – 23.5 |
| 1.25-40C-4-6-2 | 1-1/4" | 6 | 14" | 12.2 oz | 180 psi | 75 | 4 – 32 | 0.25 – 13.5 |
| 1.25-40C-4-12-2 | 1-1/4" | 12 | 25" | 18.3 oz | 180 psi | 75 | 4 – 32 | 0.50 – 27 |
| 1.5-40C-4-6-2 | 1-1/2" | 6 | 15" | 14.8 oz | 170 psi | 75 | 6 – 40 | 0.25 – 12.25 |
| 1.5-40C-4-12-2 | 1-1/2" | 12 | 28" | 25.4 oz | 170 psi | 75 | 6 – 40 | 0.50 – 24.5 |
| 2-40C-4-6-2 | 2" | 6 | 19" | 25 oz | 140 psi | 75 | 9 – 60 | 0.25 – 9.25 |
| 2-40C-4-12-2 | 2" | 12 | 35" | 43 oz | 140 psi | 75 | 9 – 60 | 0.50 – 18.5 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Clear |
| Certifications: | NSF 61 Certified |
