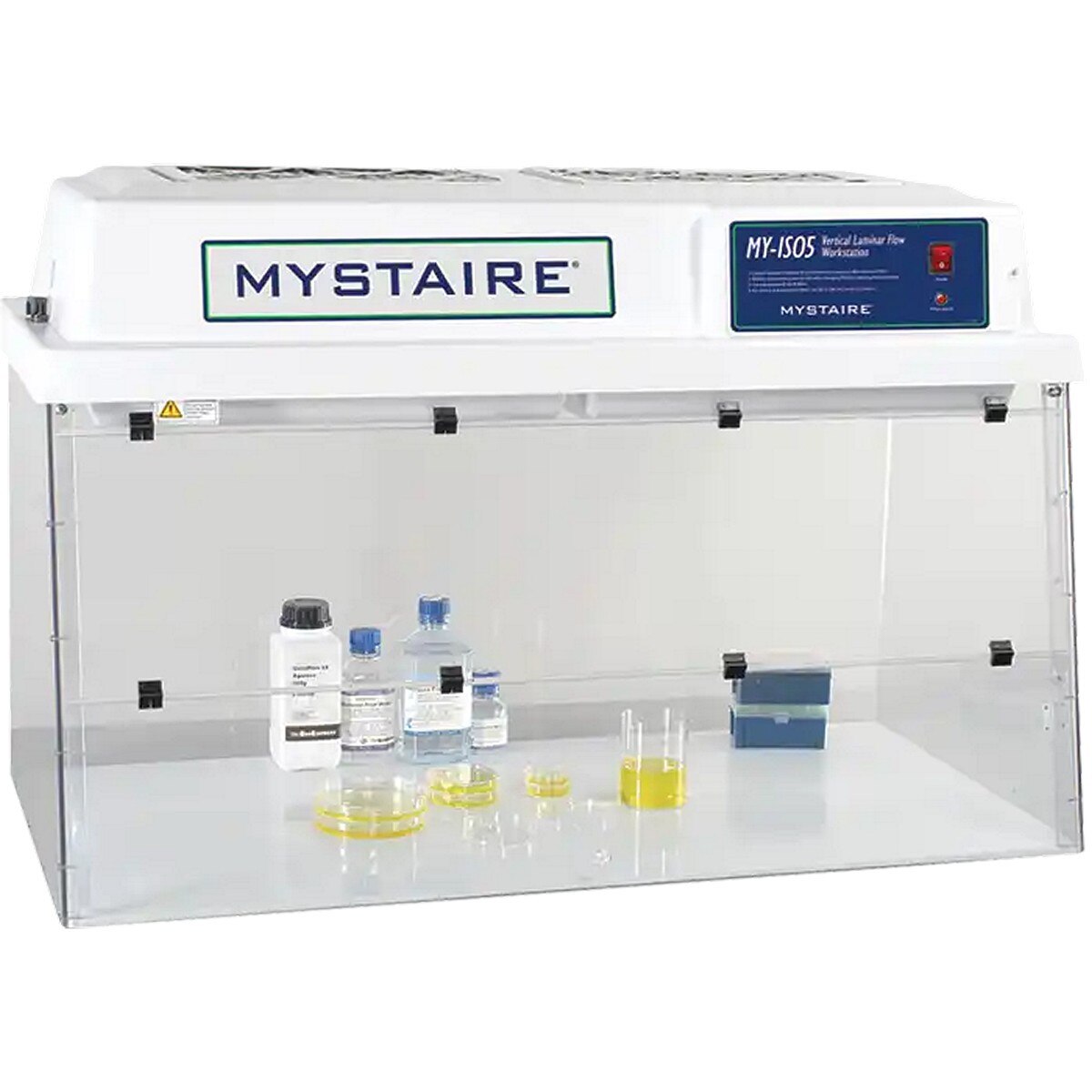

MY-ISO5 48" ISO 5 Vertical Laminar Flow Workstation, Tall Model, 110V

The Mystaire MY-VLF48T is the flagship model in the vertical laminar flow series, offering both maximum width and internal height for demanding cleanroom workflows. With 29″ of vertical clearance and a 47″ wide workspace, it’s ideal for dual-operator setups, large-scale media prep, or integration with tall lab automation systems. Dual blowers and dual-stage filtration ensure consistent ISO 5 airflow across the entire chamber, while the full-closure sash and automatic blower control help conserve energy and extend filter life.

Key Features

• Air quality: ISO 5 / Class 100 with 99.99% HEPA efficiency at 0.3 µm
• Filtration system: Two-stage design with 2 pre-filters and 2 HEPA filters for full-span airflow coverage
• Construction: Polypropylene base and clear polycarbonate shell for chemical resistance and easy cleaning
• Blower system: Dual brushless, spark-less motors with automatic activation when sash is raised
• Lighting: Integrated fluorescent lighting for full-chamber visibility
• Filter monitoring: Audible and visual alarm alerts users when airflow is compromised
• Tall chamber: 29″ internal height accommodates pipette robots, tablet dedusters, and tall glassware
• Portability: Weighs 105 lb, suitable for benchtop or mobile cart use

Technical Specifications

• External dimensions: 48″ W × 24″ D × 42″ H (1219 × 610 × 1067 mm)
• Internal work area: 47″ W × 23″ D × 29″ H (1194 × 584 × 737 mm)
• Sash openings: 45″ × 11″ and 45″ × 25″
• Electrical: 110 V, 220 W
• Filtration: 2 pre-filters and 2 HEPA filters
• Weight: 105 lb (48 kg)
• Compliance: Meets ISO 14644-1 and ANSI/IEST RP-CC-002 standards
