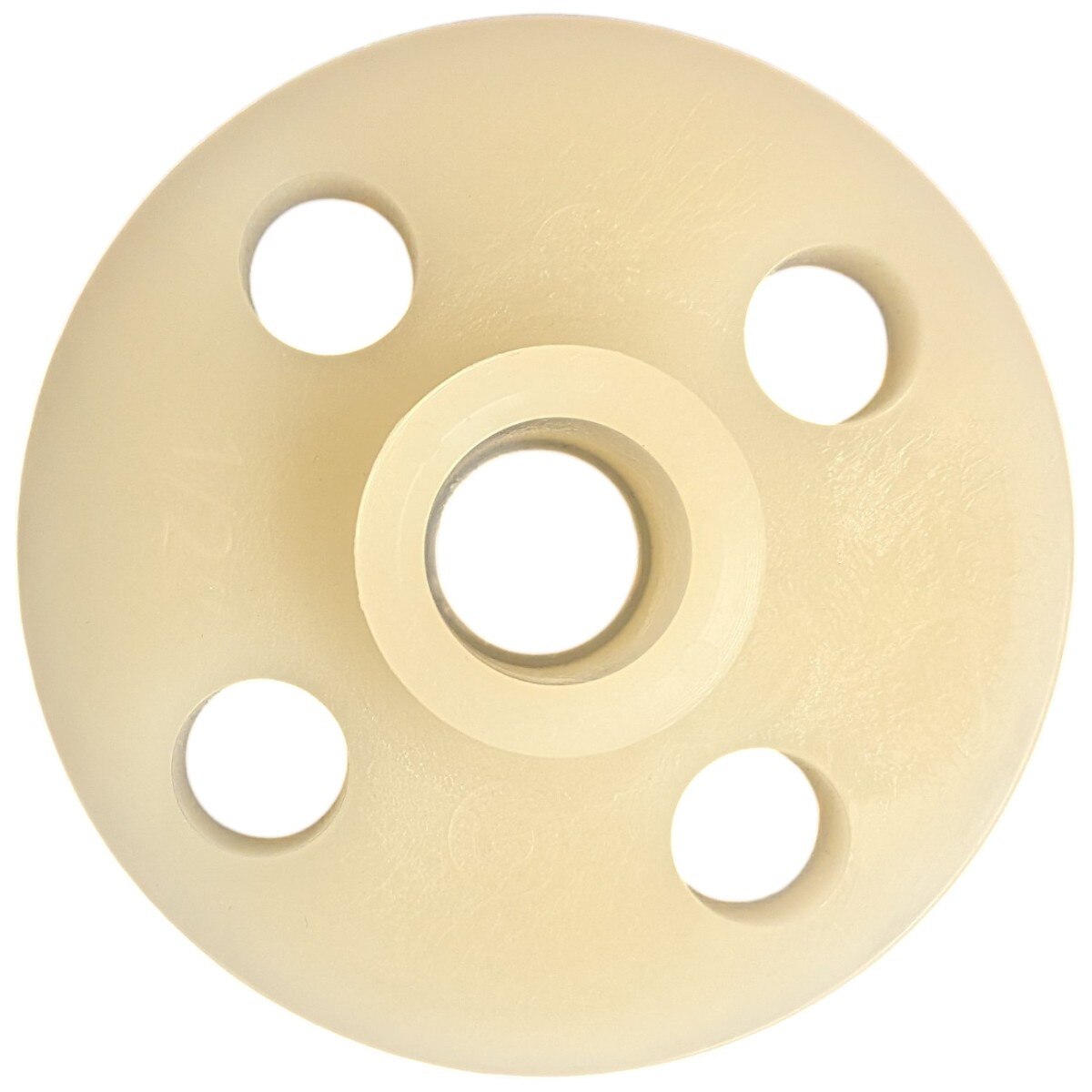

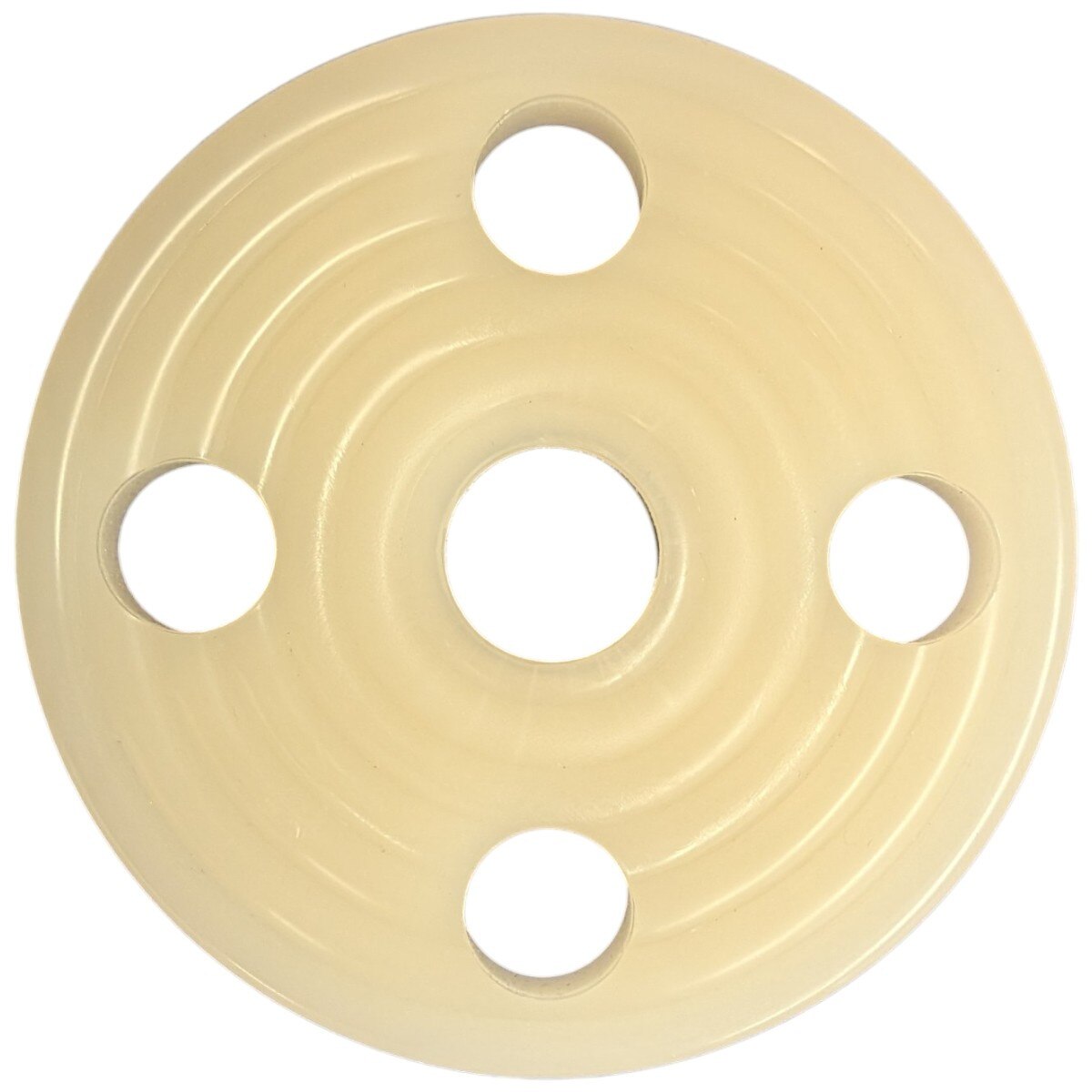

PVDF Socket Fusion Flange – 1/2"
High‑purity PVDF fusion flange designed for aggressive chemical service with ANSI B16.5 bolt pattern.
- Model: FLGPVDF-.5-S
- Material: Virgin PVDF 720 resin (ASTM D3222)
- Connection: Socket fusion (ASTM F2657)
- Size: 1/2"
- Pressure Rating: 150 psig at 68°F
- Schedule 80 wall thickness
“Maximum Pressure to 150 PSIG (10 bar) at 68ºF (20℃).”
| Product Type: | Socket Fusion Flange |
| Brand: | Primary Fluid Systems |
| Product Line: | PFS Fusion Socket Flanges |
| Material: | PVDF |
| Max Pressure (PSI): | 150 PSIG (10 bar) at 68°F (20°C) |
| Connections: | 1/2" Socket Fusion |
| Outer Diameter: | 3.5" |
| Notes: | Thermoplastic Pipe Flange |
