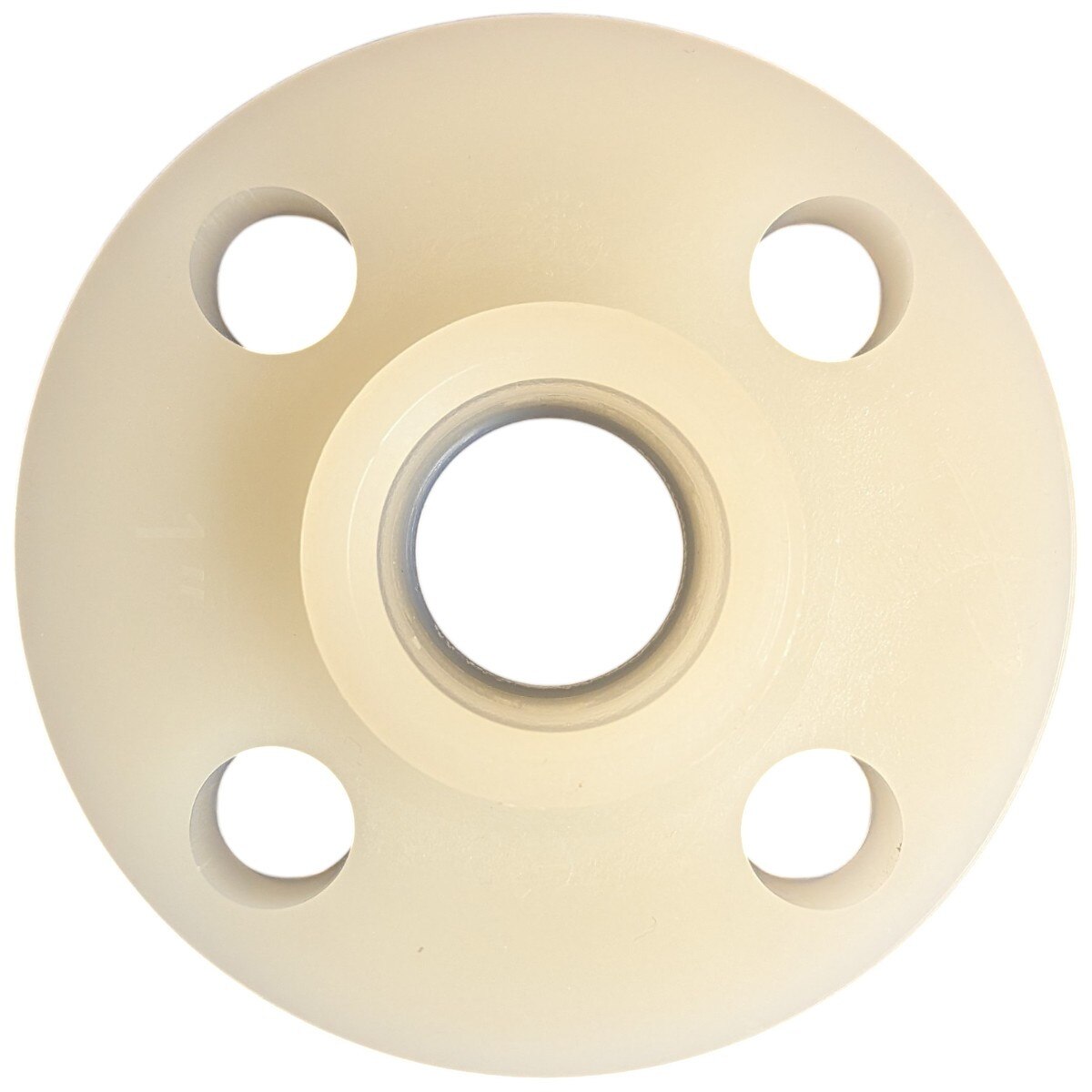

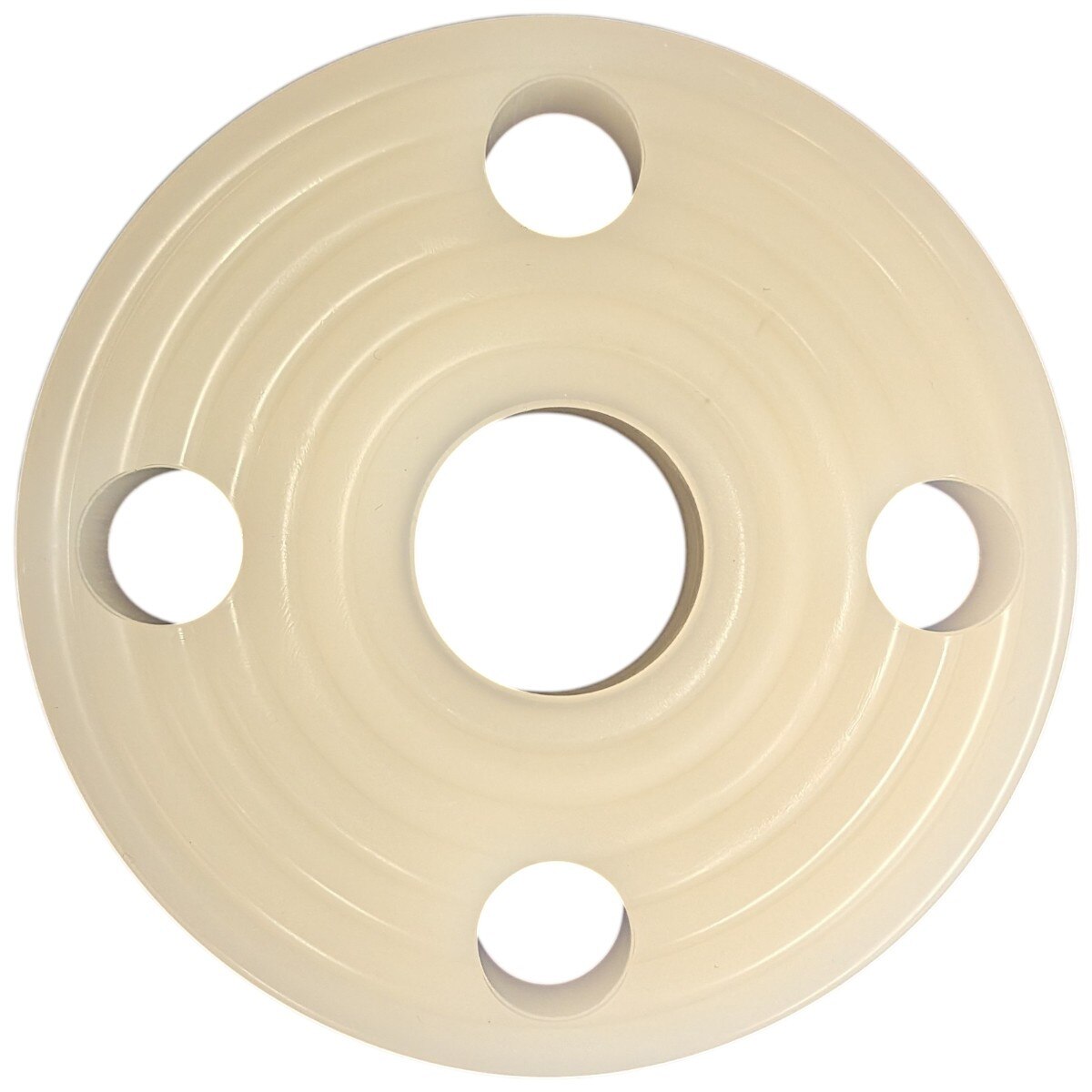

PVDF Socket Fusion Flange – 1"
Images are for representation only. Actual product may differ in size, color or options.
PVDF Socket Fusion Flange – 1"
Premium PVDF fusion flange engineered for demanding chemical environments and ANSI B16.5 compatibility.
- Model: FLGPVDF-1-S
- Material: Virgin PVDF 720 resin
- Connection: Socket fusion
- Size: 1"
- Pressure Rating: 150 psig at 68°F
- ANSI flat‑face design
“Maximum Pressure to 150 PSIG (10 bar) at 68ºF (20℃).”
| Product Type: | Socket Fusion Flange |
| Brand: | Primary Fluid Systems |
| Product Line: | PFS Fusion Socket Flanges |
| Material: | PVDF |
| Max Pressure (PSI): | 150 PSIG (10 bar) at 68°F (20°C) |
| Connections: | 1" Socket Fusion |
| Outer Diameter: | 4.25" |
| Notes: | Thermoplastic Pipe Flange |
