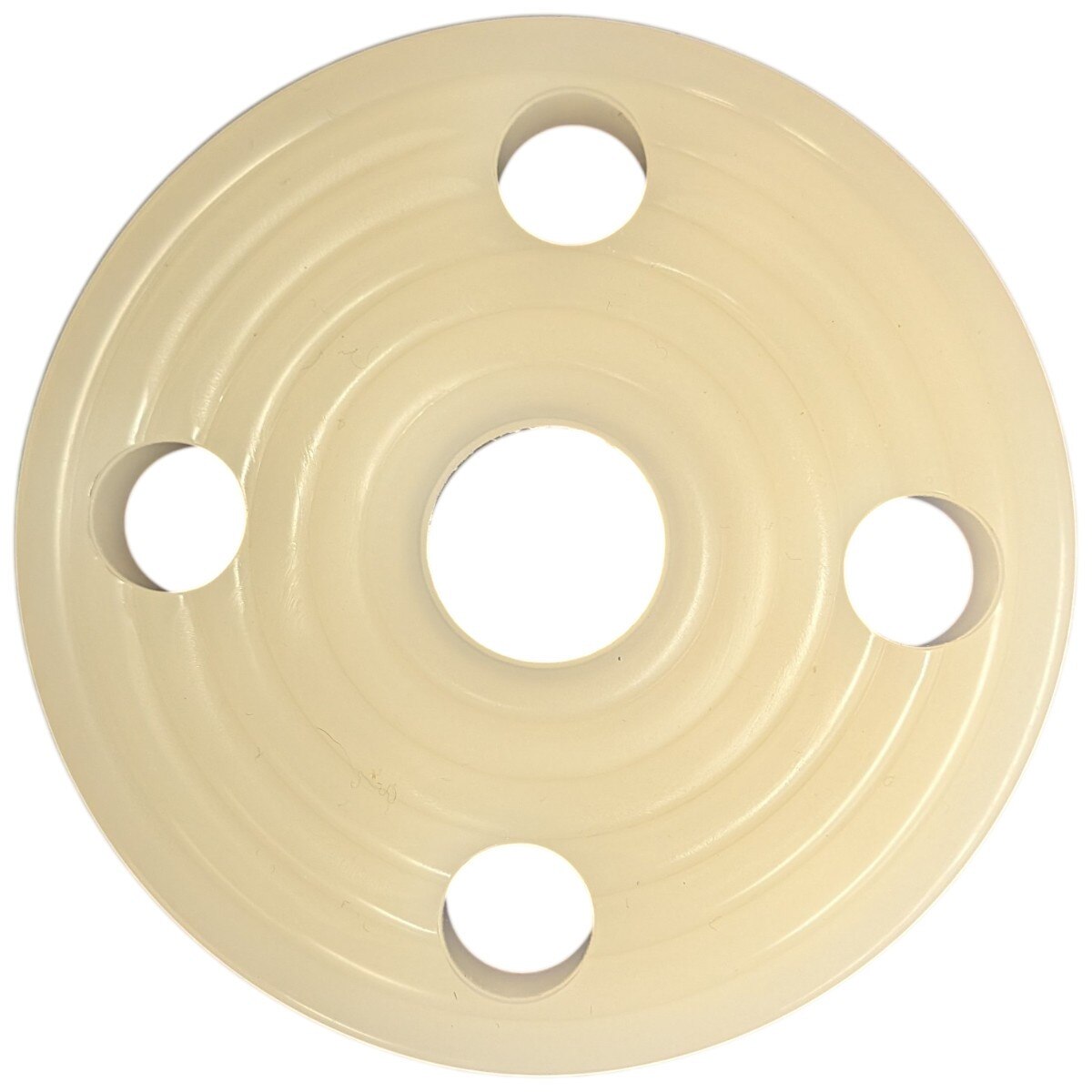

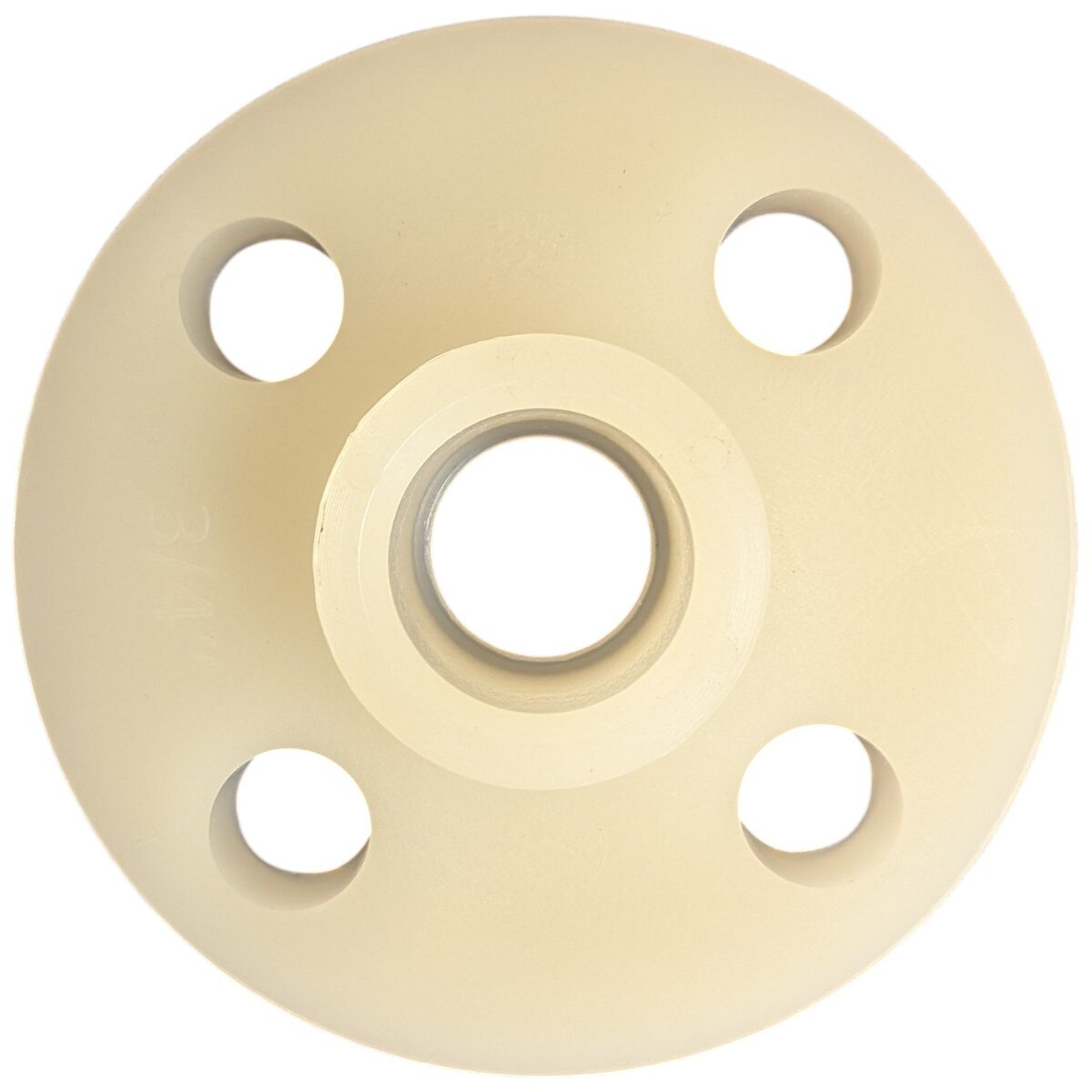

PVDF Socket Fusion Flange – 3/4"
Images are for representation only. Actual product may differ in size, color or options.
PVDF Socket Fusion Flange – 3/4"
Chemically resistant PVDF flange with socket fusion connection and ANSI B16.5 bolt pattern.
- Model: FLGPVDF-.75-S
- Material: Virgin PVDF (ASTM D3222)
- Connection: Socket fusion
- Size: 3/4"
- Pressure Rating: 150 psig at 68°F
- Schedule 80 construction
“Primary Fluid Systems is proud to introduce its new product line: FLGPP and FLGPVDF series Fusion Socket Flanges.”
| Product Type: | Socket Fusion Flange |
| Brand: | Primary Fluid Systems |
| Product Line: | PFS Fusion Socket Flanges |
| Material: | PVDF |
| Max Pressure (PSI): | 150 PSIG (10 bar) at 68°F (20°C) |
| Connections: | 3/4" Socket Fusion |
| Outer Diameter: | 3.875" |
| Notes: | Thermoplastic Pipe Flange |
