Piston Metering Pumps

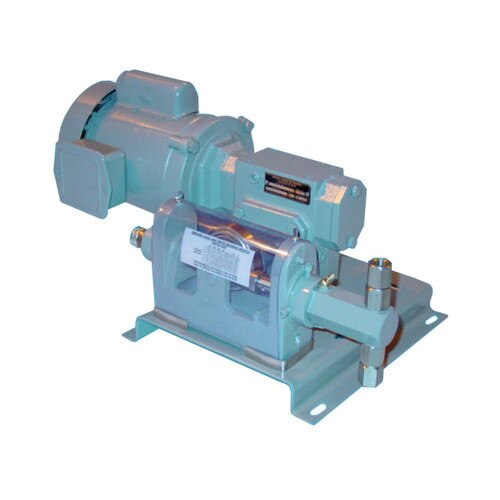

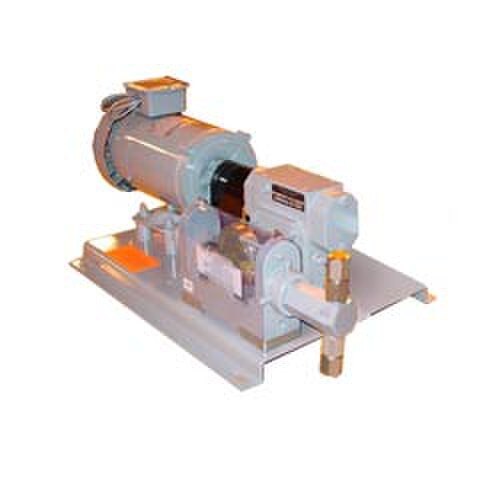

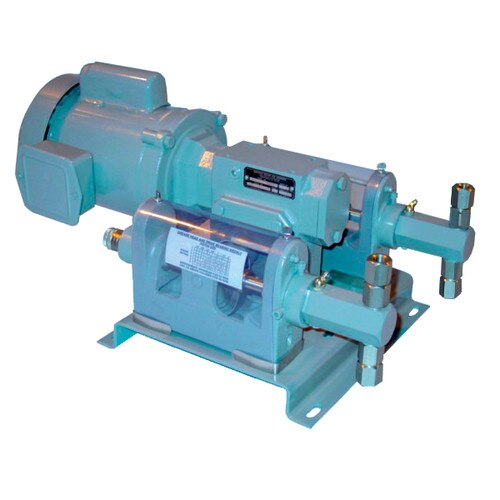

The V-10 Series is a heavy duty piston metering pump designed for trouble free operation with a minimum of maintenance. The pump is driven by a continuous heavy duty oil filled speed reducer which is available in several ratios for the required stroking rate. The heavy duty speed reducer will accept any 56C frame motor making it easy to match the V-10 pump to special environments or electrical characteristics. All the various piston head sizes are interchangeable which makes application changes in the field simple. All V-10 pumps are supplied with a pressure relief valve for each pump head. The pump head comes standard in carbon steel but is available in various grades of stainless steel. These pumps are ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required. The V-7 Series is a mini pump designed for lighter metering applications and minimal maintenance. The pump end of the unit utilizes a precision inline machined casting insuring exact alignment of the drive mechanism and the piston head assembly, minimizing wear. The pump is driven by a low horsepower gear motor which is available in several ratios for the required stroking rate. The wet end of the pump is precision machined and utilizes a ground stainless steel piston to minimize packing wear. The output of the pump is varied from zero to maximum by manually adjusting the piston stroke length.
