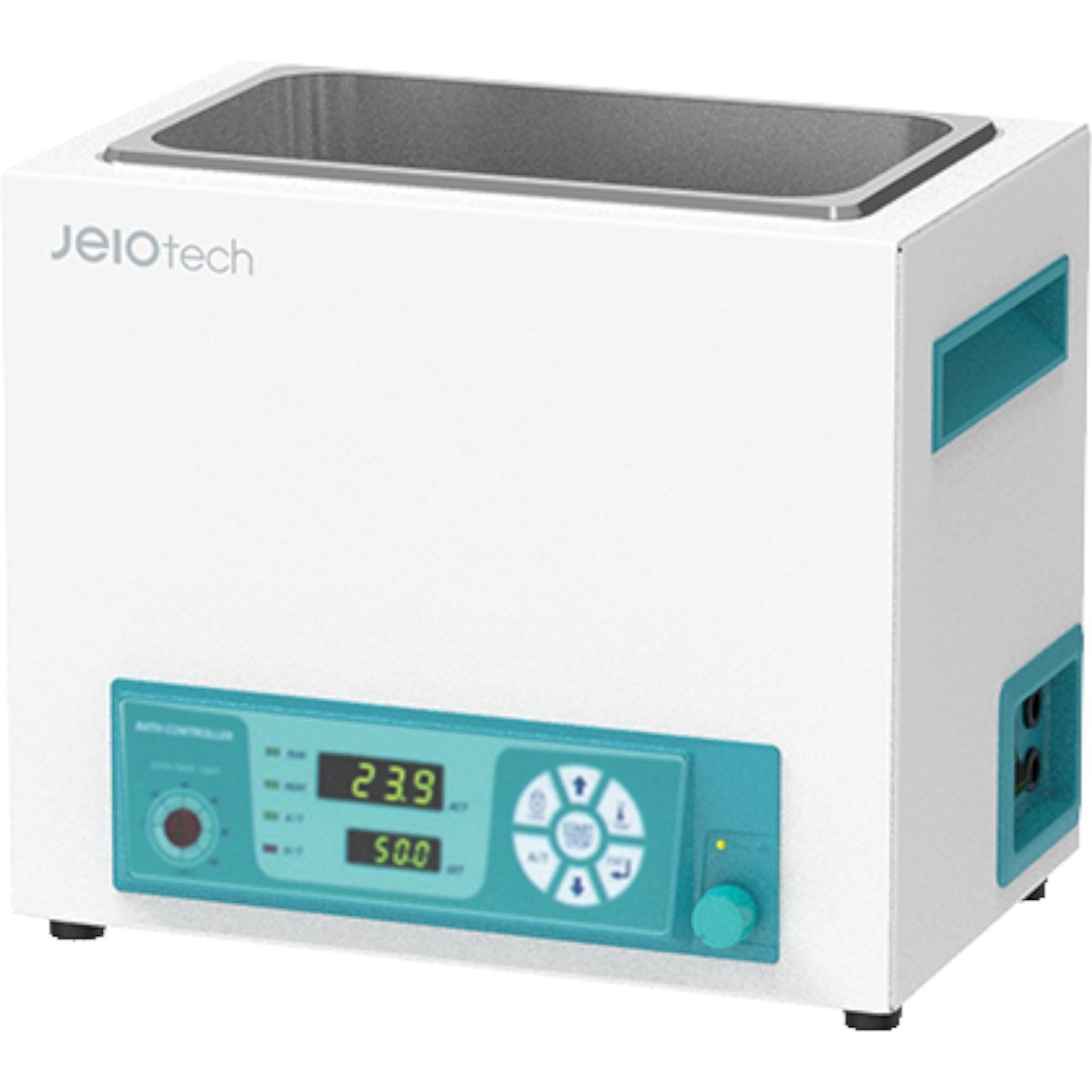

JeioTech BW-05H Digital Heating Bath – 3.5 L (0.1 cu ft), 120 V

The BW-05H delivers precise temperature control from ambient + 5 °C up to 100 °C in a compact 3.5 L bath. Its digital PID controller with auto-tuning, powerful agitator circulation, and transparent gable cover make it ideal for sensitive sample incubation and reagent warming.

Specifications

• Catalog Number: AAH45113U
• Model: BW-05H
• Bath Volume: 3.5 L / 0.1 cu ft
• Working Temperature Range: Amb. + 5 °C to 100 °C / Amb. + 9 °F to 212 °F
• Temperature Stability at 50 °C: ± 0.1 °C / 0.18 °F
• Heat-up Time to 70 °C: 25 min
• Bath Opening / Depth: 240 × 136 mm, 150 mm (9.4 × 5.4″, 5.9″)
• Exterior (W × L × H): 307 × 216 × 266 mm (12.1 × 8.5 × 10.5″)
• Net Weight: 6.5 kg / 14.3 lbs
• Electrical Requirements: 120 V, 60 Hz, 5.8 A

Features

• Digital LED display (0.1 °C resolution) with intuitive dial control
• Microprocessor PID controller with automatic tuning and calibration
• Patented agitator for uniform heat circulation
• Transparent gable-type cover to reduce evaporation and drips
• Low-profile design with sloped control panel for safety
• Comprehensive safety: over-temperature, over-current, dry-run protection, and keypad lock

Applications

• Incubation of tissue cultures and enzyme reactions
• Reagent warming and media preheating
• Chemical reaction temperature control
• General laboratory heating and QC workflows
