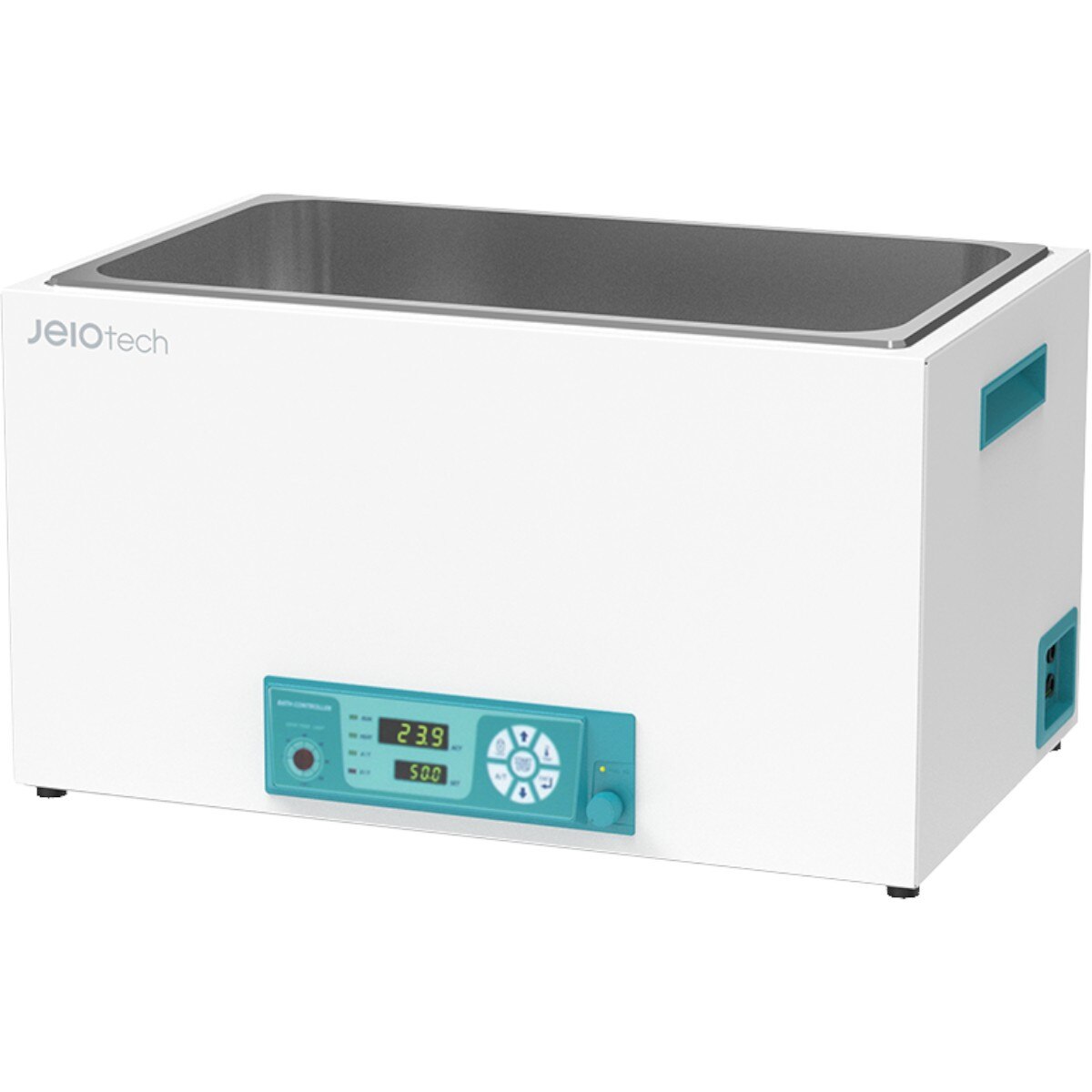

JeioTech BW-20H Digital Heating Bath – 20 L (0.7 cu ft), 120 V

The BW-20H combines a 20 L capacity with precise PID control, patented agitator circulation, and a transparent gable cover. It’s built for large-volume incubations and rigorous temperature tasks.

Specifications

• Catalog Number: AAH45133U
• Model: BW-20H
• Bath Volume: 20 L / 0.7 cu ft
• Working Temperature Range: Amb. + 5 °C to 100 °C / Amb. + 9 °F to 212 °F
• Temperature Stability at 50 °C: ± 0.1 °C / 0.18 °F
• Heat-up Time to 70 °C: 50 min
• Bath Opening / Depth: 498 × 300 mm, 200 mm (19.6 × 11.8″, 7.9″)
• Exterior (W × L × H): 564 × 372 × 318 mm (22.2 × 14.6 × 12.5″)
• Net Weight: 15.5 kg / 34.2 lbs
• Electrical Requirements: 120 V, 60 Hz, 8.3 A

Features

• Digital LED display (0.1 °C resolution) with intuitive dial control
• Microprocessor PID controller with automatic tuning and calibration
• Patented agitator for uniform heat circulation
• Transparent gable-type cover to reduce evaporation and drips
• Low-profile design with sloped control panel for safety
• Comprehensive safety: over-temperature, over-current, dry-run protection, and keypad lock

Applications

• Large-volume sample incubation
• Bulk reagent warming and media preparation
• Heat-sensitive research and QC assays
• General laboratory heating and production workflows
