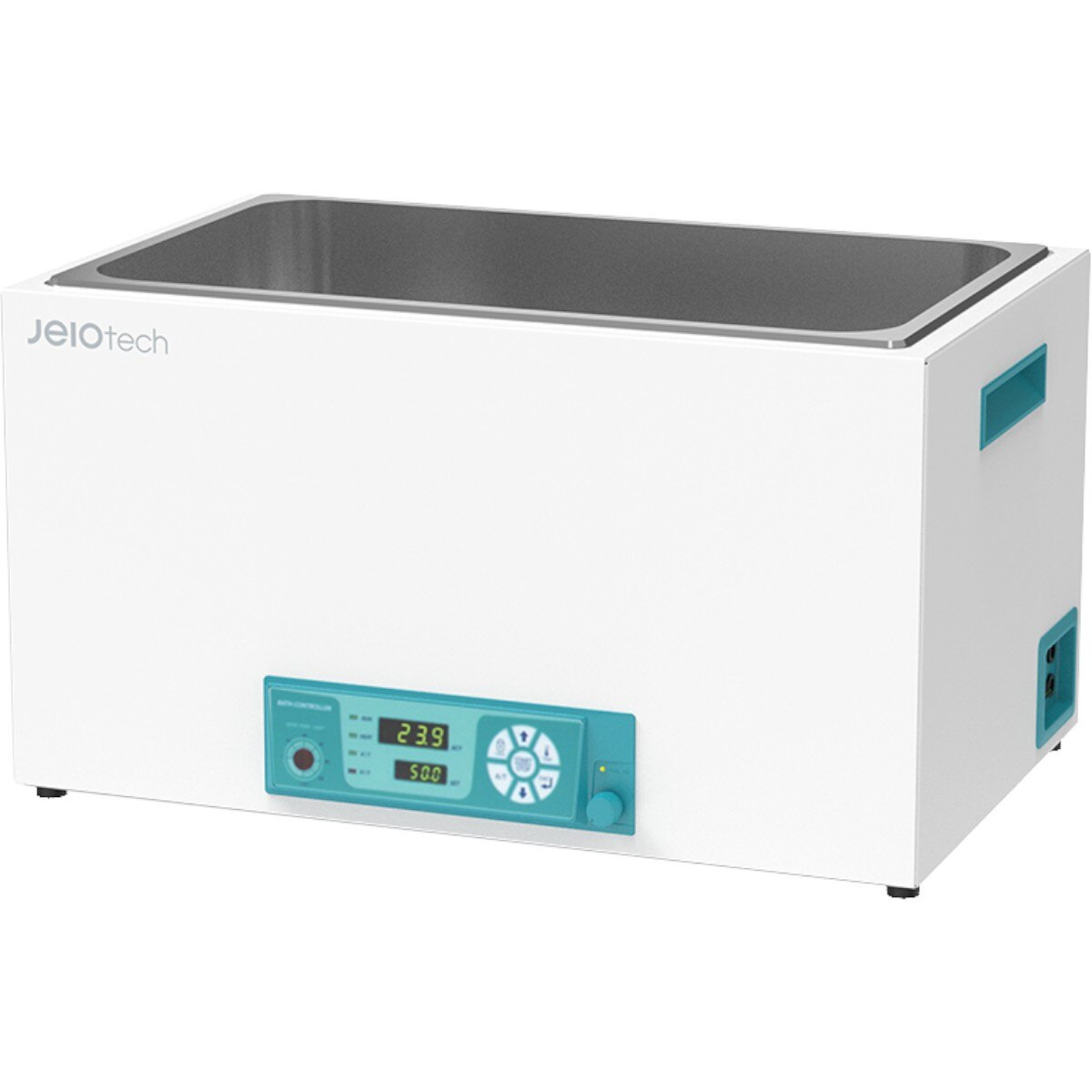

JeioTech BW-20H Digital Heating Bath – 20 L (0.7 cu ft), 230 V

The 230 V BW-20H delivers the same 20 L capacity, PID control, and agitator circulation as its 120 V version. Its robust design and transparent cover make it well suited for high-volume and industrial laboratory applications.

Specifications

• Catalog Number: AAH45135K
• Model: BW-20H
• Bath Volume: 20 L / 0.7 cu ft
• Working Temperature Range: Amb. + 5 °C to 100 °C / Amb. + 9 °F to 212 °F
• Temperature Stability at 50 °C: ± 0.1 °C / 0.18 °F
• Heat-up Time to 70 °C: 50 min
• Bath Opening / Depth: 498 × 300 mm, 200 mm (19.6 × 11.8″, 7.9″)
• Exterior (W × L × H): 564 × 372 × 318 mm (22.2 × 14.6 × 12.5″)
• Net Weight: 15.5 kg / 34.2 lbs
• Electrical Requirements: 230 V, 50/60 Hz, 8.7 A

Features

• Digital LED display (0.1 °C resolution) with intuitive dial control
• Microprocessor PID controller with automatic tuning and calibration
• Patented agitator for uniform heat circulation
• Transparent gable-type cover to reduce evaporation and drips
• Low-profile design with sloped control panel for safety
• Comprehensive safety: over-temperature, over-current, dry-run protection, and keypad lock

Applications

• Large-volume sample incubation
• Bulk reagent warming and media preparation
• Heat-sensitive research and QC assays
• General laboratory heating and production workflows
