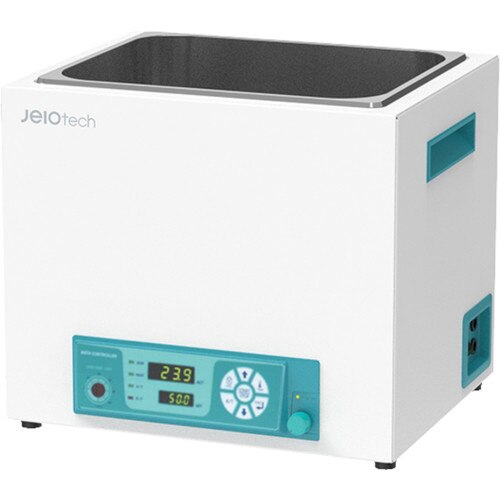

JeioTech BW-10H Digital Heating Bath – 11.5 L (0.4 cu ft), 230 V

The 230 V BW-10H offers the same 11.5 L capacity, PID control, and agitator circulation as its 120 V version. Its transparent cover and safety interlocks ensure reliable operation in medium-throughput settings.

Specifications

• Catalog Number: AAH45125K
• Model: BW-10H
• Bath Volume: 11.5 L / 0.4 cu ft
• Working Temperature Range: Amb. + 5 °C to 100 °C / Amb. + 9 °F to 212 °F
• Temperature Stability at 50 °C: ± 0.1 °C / 0.18 °F
• Heat-up Time to 70 °C: 45 min
• Bath Opening / Depth: 300 × 240 mm, 200 mm (11.8 × 9.5″, 7.9″)
• Exterior (W × L × H): 364 × 316 × 318 mm (14.3 × 14.4 × 12.5″)
• Net Weight: 9.5 kg / 21 lbs
• Electrical Requirements: 230 V, 50/60 Hz, 4.3 A

Features

• Digital LED display (0.1 °C resolution) with intuitive dial control
• Microprocessor PID controller with automatic tuning and calibration
• Patented agitator for uniform heat circulation
• Transparent gable-type cover to reduce evaporation and drips
• Low-profile design with sloped control panel for safety
• Comprehensive safety: over-temperature, over-current, dry-run protection, and keypad lock

Applications

• Mid-volume reagent warming and incubation
• Parallel enzyme and culture assays
• Heat-sensitive sample processing
• General laboratory heating and QC workflows
