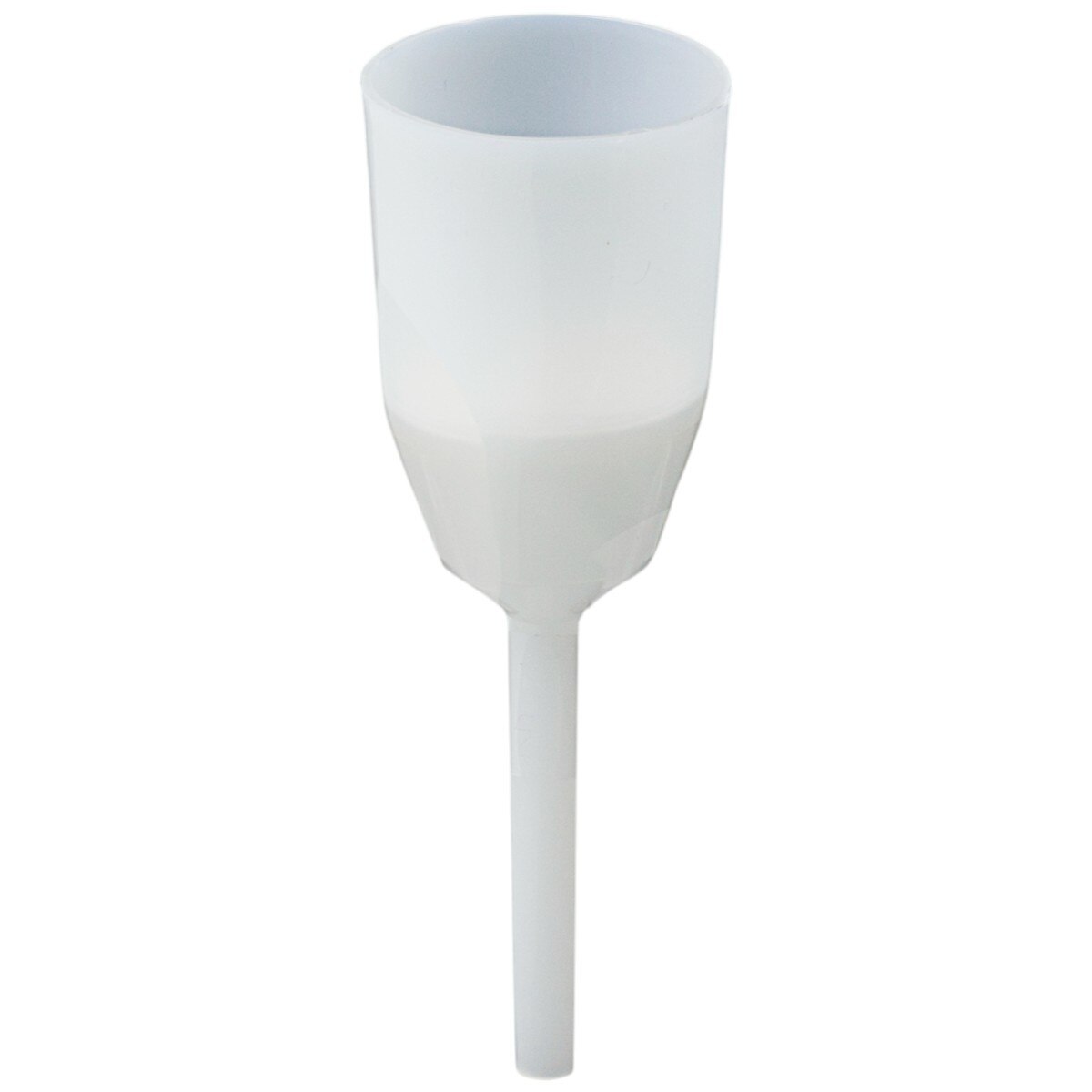

SP Bel-Art Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 50 mL
Images are for representation only. Actual product may differ in size, color or options.
Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 50 mL
The F14608-0000 one-piece Buchner funnel is molded from HDPE with a sealed-in polyethylene filter plate of coarse porosity (90–130 microns), offering good retention and fast flow under vacuum. Nominal capacity 50 mL (1.69 oz). Compatible with the Vac-Ring Filter Seal (H38959-0000) for quick filter setup and secure sealing to flask adapters.
Specifications
- Part Number: F14608-0000
- Capacity: 50 mL (1.69 oz)
- Overall Height: 12.7 cm (5")
- Stem I.D.: 0.6 cm (1/8")
- Stem O.D.: 0.9 cm (15/16")
- Top I.D.: 4.0 cm (1 9/16")
- Plate Diameter: 6.1 cm (2 5/16")
- Quantity per Pack: 1
- Material: HDPE funnel; polyethylene filter plate
Delivery Content
- HDPE one-piece Buchner funnel with sealed polyethylene coarse plate; qty 1
Applications
Vacuum filtration for small-volume laboratory separations where rapid flow and coarse retention are acceptable; pairs with Vac-Ring Filter Seal (H38959-0000) for simplified sealing and faster setup.
| Product Type: | Funnel |
| Brand: | Bel-Art |
| Class: | Buchner |
| Grade: | Single Piece |
| Material: | HDPE |
| Capacity: | 50 mL |
| Rim to Plate: | 35mm |
| Inner Diameter: | 36mm |
| Case Quantity: | 12 |
