SP Bel-Art Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 400 mL
Images are for representation only. Actual product may differ in size, color or options.
Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 400 mL

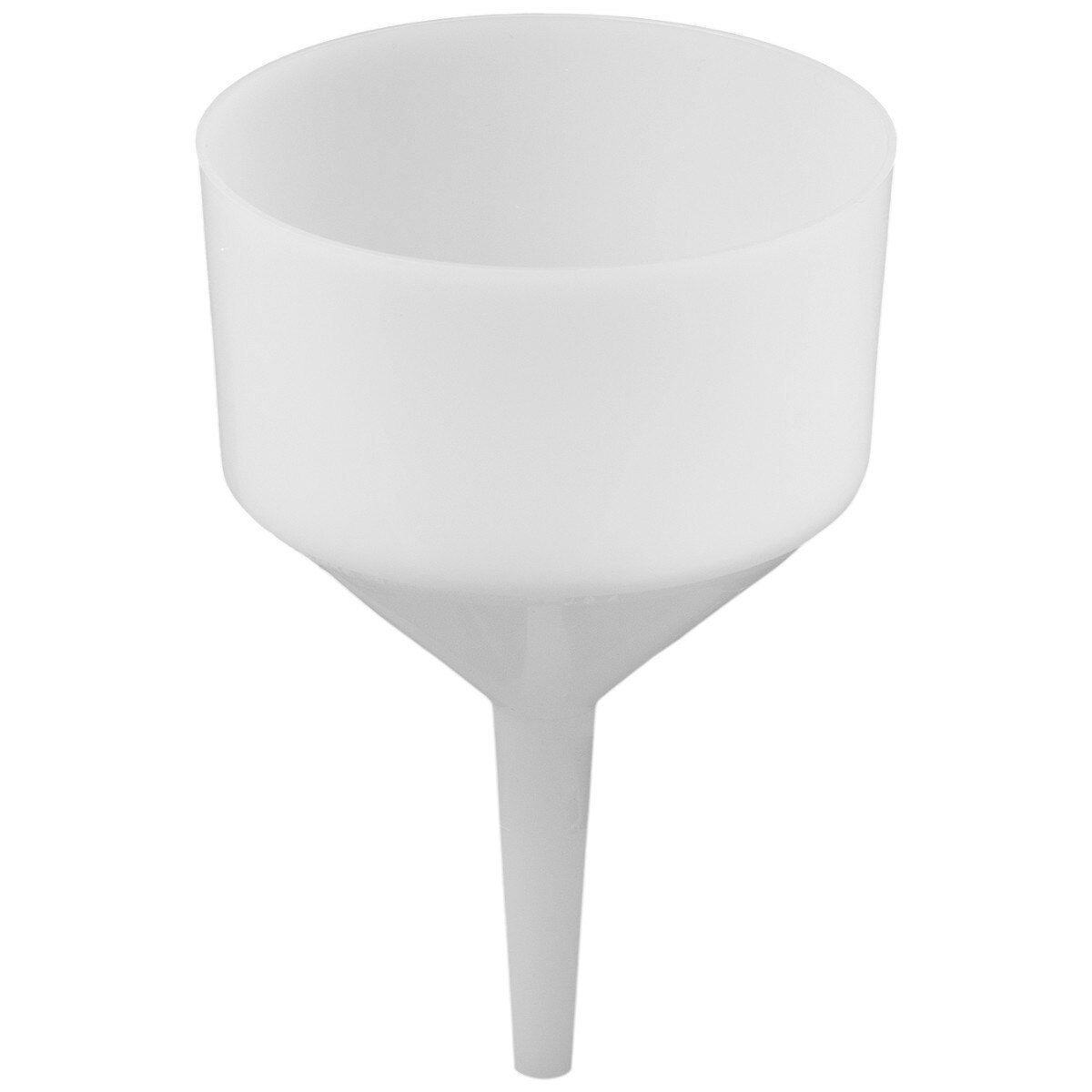

The F14610-0000 one-piece HDPE Buchner funnel includes a sealed polyethylene coarse filter plate (90–130 microns), 400 mL capacity (13.5 oz). Designed for vacuum filtration and compatible with the Vac-Ring Filter Seal (H38959-0000) to speed assembly and improve seal reliability.
Specifications
- Part Number: F14610-0000
- Capacity: 400 mL (13.5 oz)
- Overall Height: 17.6 cm (6 15/16")
- Stem I.D.: 0.8 cm (5/16")
- Stem O.D.: 1.8 cm (3/4")
- Top I.D.: 10.8 cm (4 3/8")
- Plate Diameter: 10.4 cm (4 1/8")
- Quantity per Pack: 1
- Material: HDPE funnel; polyethylene filter plate
Delivery Content
- HDPE one-piece Buchner funnel with sealed polyethylene coarse plate; qty 1
Applications
Medium-to-large volume vacuum filtration where a coarse filter plate provides rapid throughput; recommended pairing with Vac-Ring Filter Seal (H38959-0000) for quick, secure connections to vacuum glassware.
| Product Type: | Funnel |
| Brand: | Bel-Art |
| Class: | Buchner |
| Grade: | Single Piece |
| Material: | HDPE |
| Capacity: | 400 mL |
| Rim to Plate: | 50mm |
| Inner Diameter: | 104mm |
| Case Quantity: | 6 |
