SP Bel-Art Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 1000 mL
Images are for representation only. Actual product may differ in size, color or options.

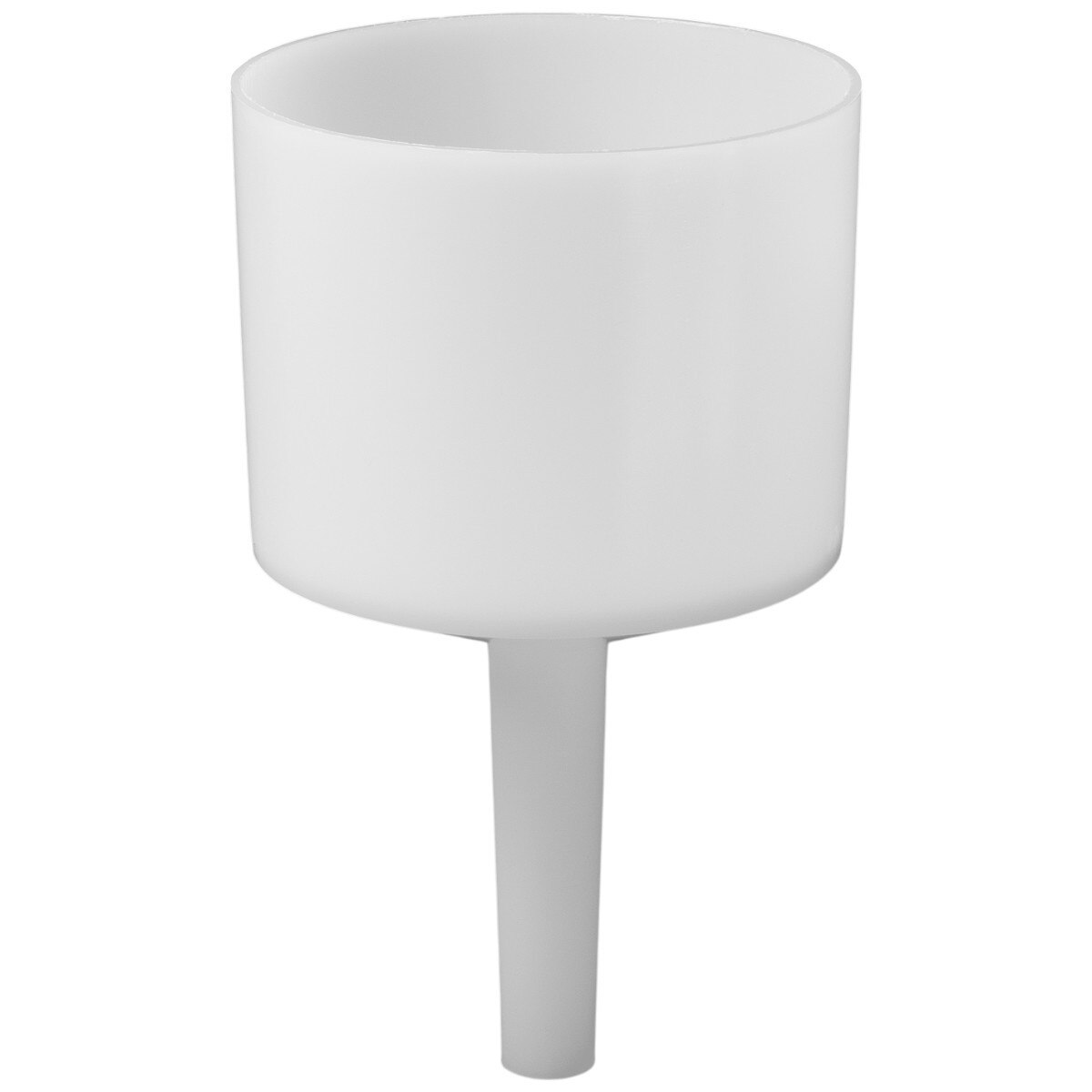

Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 1000 mL
The F14611-0000 one-piece HDPE Buchner funnel features a sealed-in polyethylene coarse plate (90–130 microns) with 1000 mL capacity (33.8 oz), designed for higher-volume vacuum filtration. Compatible with the Vac-Ring Filter Seal (H38959-0000) to enable fast, dependable sealing for bulk separations.
Specifications
- Part Number: F14611-0000
- Capacity: 1000 mL (33.8 oz)
- Overall Height: 22.7 cm (8 15/16")
- Stem I.D.: 1.7 cm
- Stem O.D.: 2.4 cm
- Top I.D.: 12.7 cm (5")
- Plate Diameter: 12.2 cm (4 9/16")
- Quantity per Pack: 1
- Material: HDPE funnel; polyethylene filter plate
Delivery Content
- HDPE one-piece Buchner funnel with sealed polyethylene coarse plate; qty 1
Applications
High-volume laboratory vacuum filtration where robust HDPE construction and a coarse filter plate deliver fast flow and acceptable retention for bulk separations; pairs with Vac-Ring Filter Seal (H38959-0000) for simplified, secure setup.
| Product Type: | Funnel |
| Brand: | Bel-Art |
| Class: | Buchner |
| Grade: | Single Piece |
| Material: | HDPE |
| Capacity: | 1000 mL |
| Rim to Plate: | 104mm |
| Stem Length: | 3.95 inches |
| Inner Diameter: | 122mm |
| Stem Outer Diameter: | 1.03 inch tapering to 0.82 inch |
| Case Quantity: | 4 |
| Overall Dimensions: | 5 inch top OD. |
