SP Bel-Art Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 150 mL
Images are for representation only. Actual product may differ in size, color or options.

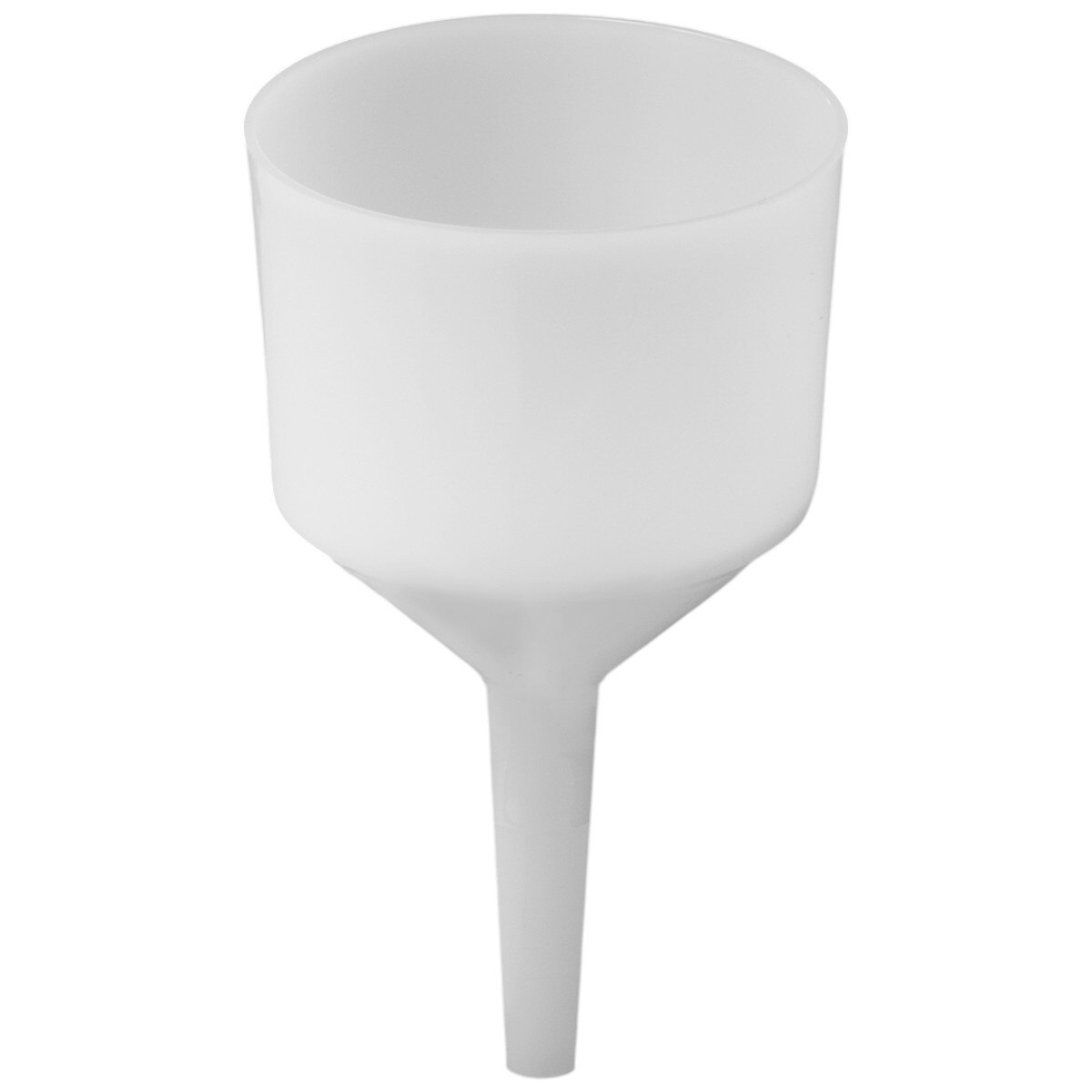

Buchner Funnel, HDPE One-Piece with Polyethylene Coarse Plate, 150 mL
The F14609-0000 HDPE one-piece Buchner funnel features a sealed-in polyethylene filter plate of coarse porosity (90–130 microns), 150 mL capacity (5.07 oz). Compatible with the Vac-Ring Filter Seal (H38959-0000) for a quick, reliable seal to vacuum flasks and adapters.
Specifications
- Part Number: F14609-0000
- Capacity: 150 mL (5.07 oz)
- Overall Height: 14.0 cm (5 1/2")
- Stem I.D.: 0.8 cm (5/16")
- Stem O.D.: 1.7 cm (13/16")
- Top I.D.: 7.6 cm (3")
- Plate Diameter: 7.0 cm (2 3/4")
- Quantity per Pack: 1
- Material: HDPE funnel; polyethylene filter plate
Delivery Content
- HDPE one-piece Buchner funnel with sealed polyethylene coarse plate; qty 1
Applications
General-purpose vacuum filtration for medium-volume samples where coarse porosity and fast flow are advantageous; use with Vac-Ring Filter Seal (H38959-0000) for efficient, leak-resistant setup.
| Product Type: | Funnel |
| Brand: | Bel-Art |
| Class: | Buchner |
| Grade: | Single Piece |
| Material: | HDPE |
| Capacity: | 150 mL |
| Rim to Plate: | 51mm |
| Inner Diameter: | 70mm |
| Case Quantity: | 6 |
